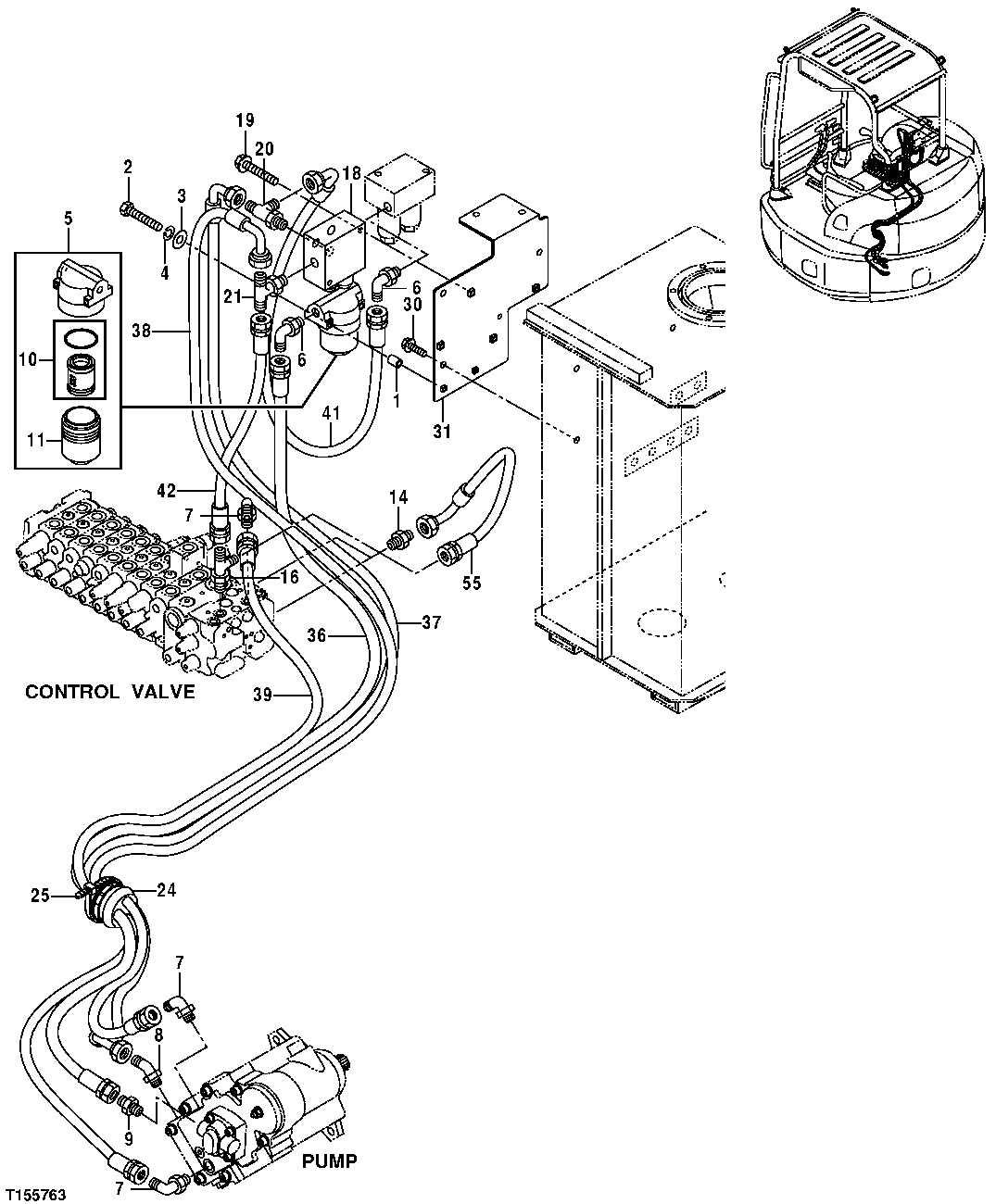

Запчасти John Deere 554 181 - PILOT LINES (PUMP, CONTROL VALVE AND FILTER) 3360 HYDRAULIC SYSTEM

1

4277425

Spacer

2шт.

2

THJ960680

Bolt

2шт.

3

12M7054

Lock Washer

19 mm

2шт.

4

12M7006

Lock Washer

6 mm

2шт.

5

4457683

Filter

1шт.

6

4434982

Elbow Fitting

2шт.

CH11570

O-Ring

SUB FOR 4509180

2шт.

7

4434981

Elbow Fitting

3шт.

M800650

Packing

SUB FOR 957366

3шт.

8

4108100

Elbow Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

9

4042031

Adapter Fitting

1шт.

CH11570

O-Ring

SUB FOR 4509180

1шт.

10

4294130

Filter Element

1шт.

11

4294129

Hydraulic Filter

1шт.

14

4042030

Adapter Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

16

4406156

Tee Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

18

4435702

Flow Control Hyd. Valve

PILOT FLOW RATE SENSING MANIFO LD, (COMPONENTS ON ANOTHER PAGE

1шт.

19

19M7663

Cap Screw

M8 X 70 SUB FOR AT256008

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

20

4368225

Tee Fitting

1шт.

CH11570

O-Ring

SUB FOR 4509180

1шт.

21

4368218

Tee Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

24

4469535

Bushing

1шт.

25

H77698

Tie Band

4шт.

30

19M7881

Screw

M8 X 20 SUB FOR J090820 OR J020820

3шт.

Washer

12M7065 NLA

3шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

31

8087186

Bracket

1шт.

36

4474931

Hydraulic Hose

1шт.

37

4474932

Hydraulic Hose

1шт.

38

4474933

Hydraulic Hose

1шт.

39

4474934

Hydraulic Hose

1шт.

41

4474936

Hydraulic Hose

1шт.

42

4474937

Hydraulic Hose

1шт.

55

4479334

Hydraulic Hose

1шт.
