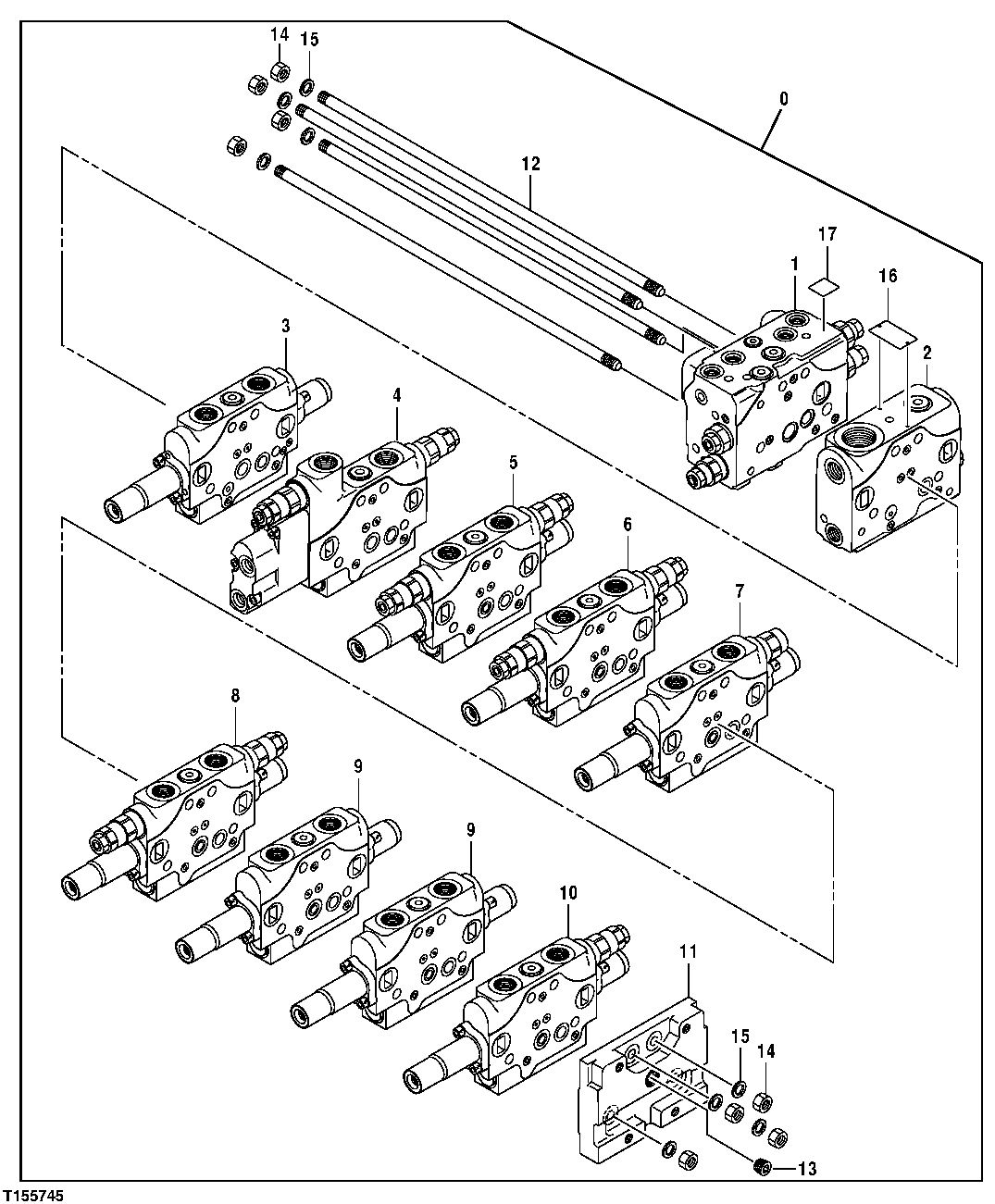

Запчасти John Deere 554 166 - Main Control Valve Sections 3360 HYDRAULIC SYSTEM

0

4466814

Hyd Actuated Control Valve

1шт.

1

4481384

Flow Control Hyd. Valve

RELIEF VALVE END SECTION

1шт.

2

4481385

Flow Control Hyd. Valve

MAIN RELIEF VALVE SECTION

1шт.

3

4481386

Flow Control Hyd. Valve

SWING SECTION

1шт.

4

4481387

Flow Control Hyd. Valve

BOOM SECTION

1шт.

5

Flow Control Hyd. Valve

ARM SECTION, 4481833 NLA

1шт.

6

4481389

Flow Control Hyd. Valve

BUCKET SECTION

1шт.

7

4481390

Flow Control Hyd. Valve

BOOM SWING SECTION

1шт.

8

4489377

Flow Control Hyd. Valve

AUXILIARY SECTION

1шт.

9

4481394

Flow Control Hyd. Valve

PROPEL SECTIONS, RIGHT NEXT TO AUXILIARY, LEFT NEXT TO BLADE

2шт.

10

4481393

Flow Control Hyd. Valve

BLADE SECTION

1шт.

11

0798301

Manifold

1шт.

12

0798302

Bolt

4шт.

13

0474106

Plug

1шт.

14

14M7274

Nut

M10 SUB FOR 0798303

8шт.

15

24M7028

Washer

10.500 X 20 X 2 mm 0201202 NLA

8шт.

16

Identification Plate

1шт.

17

Identification Plate

0844001 NOT AVAILABLE FOR SERVICE

1шт.
