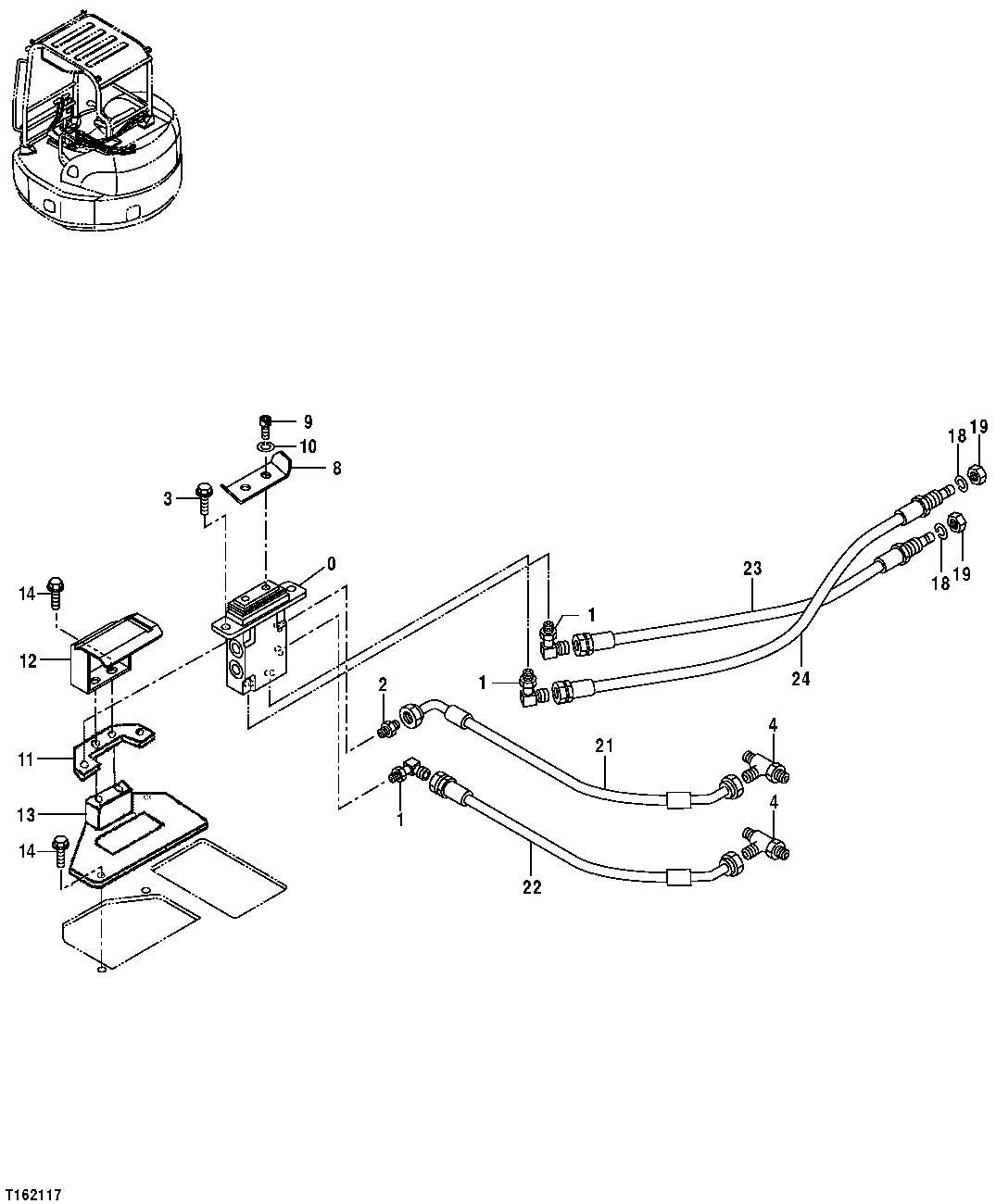

Запчасти John Deere 554 153 - AUXILIARY PEDAL AND CONTROL VALVE 3315 Controls Linkage

0

4467245

Hyd Actuated Control Valve

COMPONENTS ON ANOTHER PAGE

1шт.

1

4434981

Elbow Fitting

3шт.

M800650

Packing

SUB FOR 957366

3шт.

2

4042030

Adapter Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

3

19M7881

Screw

M8 X 20

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

4

4406156

Tee Fitting

2шт.

M800650

Packing

SUB FOR 957366

2шт.

8

9758030

Pedal

1шт.

9

19M7647

Screw

M8 X 16 SUB FOR J770816

2шт.

10

Washer

12M7065 NLA

2шт.

11

4604862

Bracket

1шт.

12

8086698

Cover

1шт.

13

8092616

Plate

1шт.

14

19M7407

Cap Screw

M8 X 25

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.

18

12M7058

Lock Washer

12 mm SUB FOR 12M7067, SUB FOR J252212

2шт.

19

14M7275

Nut

M12

2шт.

21

4475020

Hydraulic Hose

1шт.

22

4475021

Hydraulic Hose

1шт.

23

4475022

Hydraulic Hose

1шт.

24

4475023

Hydraulic Hose

1шт.
