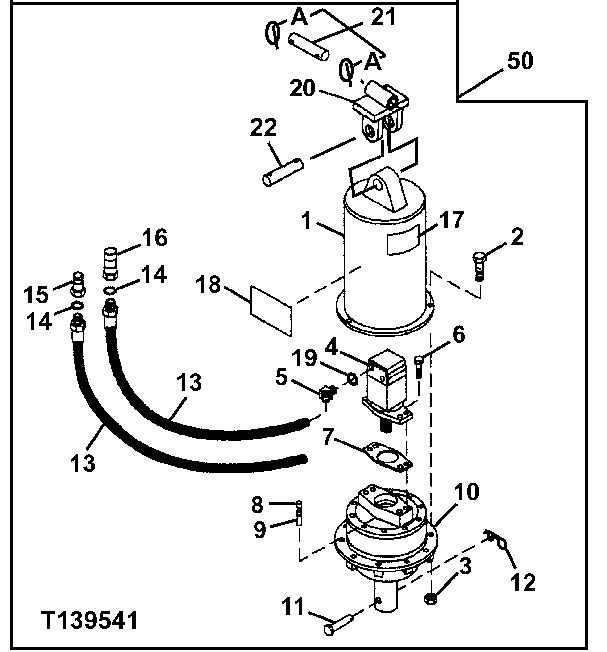

Запчасти John Deere 554 135 - Auger Planetary Drive (Pa30) 3302 Buckets

1

KV16004

Housing

1шт.

2

19H3638

Cap Screw

9/16" X 1-1/2" (SUB FOR 19H2355)

3шт.

3

T69760

Lock Nut

14.275 mm (9/16")

3шт.

4

KV15981

Motor

(COMPONENTS LISTED ON ANOTHER PAGE)

1шт.

5

AT32338

Fitting

2шт.

6

19H2993

Cap Screw

1/2" X 1-1/2" (SUB FOR 19H1721)

4шт.

7

KV16010

Gasket

1шт.

8

KV16012

Breather

1шт.

9

KV16011

Spool Valve

1шт.

10

KV16005

Crankcase

(COMPONENTS LISTED ON ANOTHER PAGE)

1шт.

11

KV18463

Pin

1шт.

12

M72598

Quick Lock Pin

1шт.

13

KV15980

Hydraulic Hose

2шт.

14

U12547

O-Ring

2шт.

15

KV14217

Hyd. Quick-Connect Coupler

MALE

1шт.

16

KV14216

Hyd. Quick-Connect Coupler

FEMALE

1шт.

17

KV16014

Label

DANGER

1шт.

18

T211965

Label

WORKSITE PRO (SUB FOR KV22123 OR KV15800)

1шт.

19

R26906

O-Ring

2шт.

20

AT191249

Bracket

1шт.

21

AT191250

Pin

1шт.

21A

T184980

Pin

2шт.

22

AT191248

Pin

1шт.

50

Auger

(SUB FOR AT280192 ) (ORD ER AT306939)(WHOLEGOODS)

1шт.
