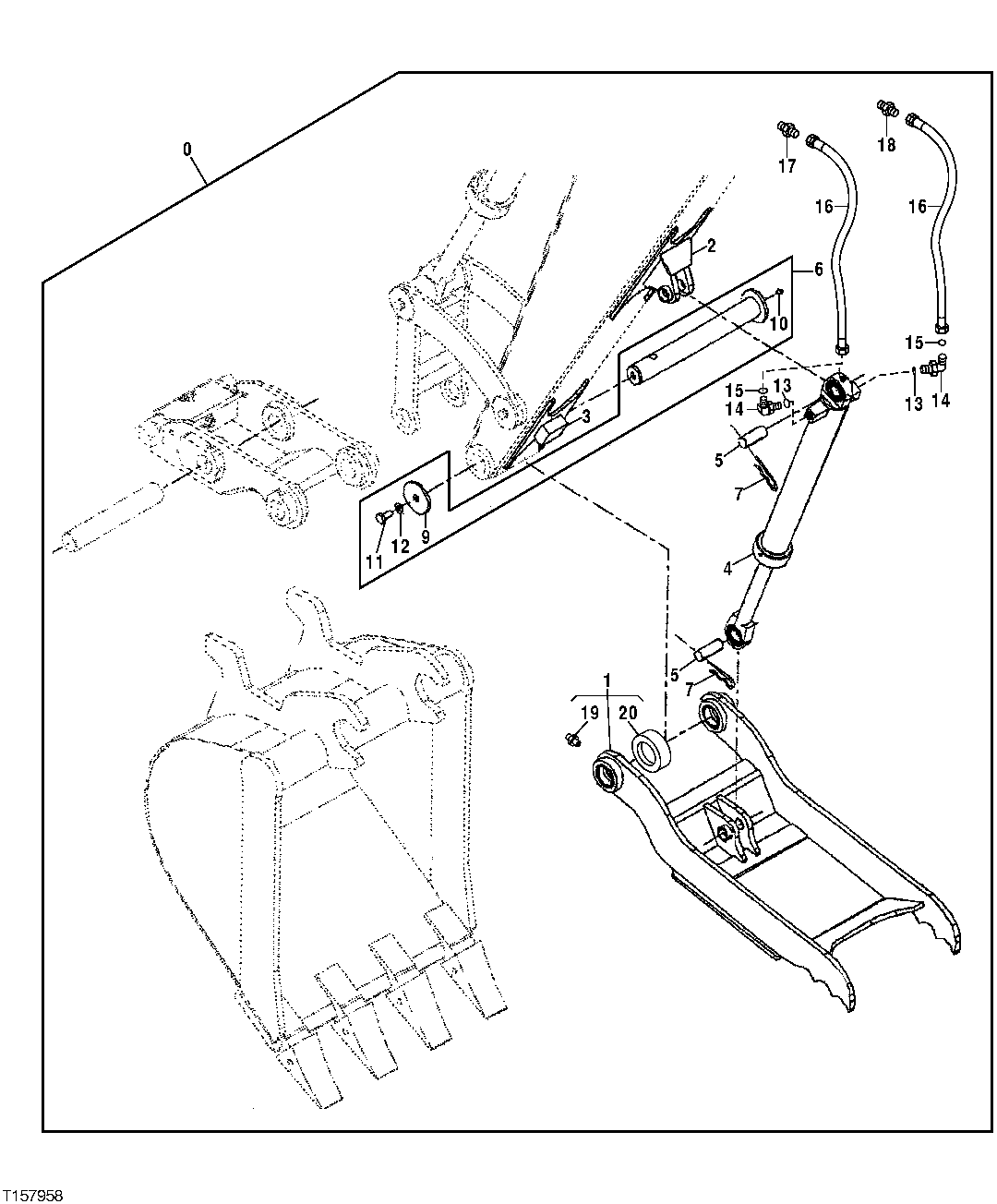

Запчасти John Deere 554 131 - Hydraulic Bucket Clamp 3302 Buckets

0

Clamp

WHOLEGOODS ( AT280198 NO LONGE R AVAILABLE - FURNISH AT308603)

1шт.

1

AT316570

Clamp

(SUB FOR AT260401 OR AT309147)

1шт.

2

AT260402

Clevis

1шт.

3

AT260403

Stop

1шт.

4

Hydraulic Cylinder

1шт.

AHC18100

Hydraulic Cylinder

(COMPONENTS ON ANOTHER PAGE)

1шт.

5

T185222

Pin

(SUB FOR AT260405)

2шт.

6

AT260406

Pin Fastener

1шт.

7

AT260407

Spring Locking Pin

2шт.

9

L77320

Washer

13 X 72 X 8 mm (0.512" X 2.835" X 0.315")

1шт.

10

AT260410

Lubrication Fitting

1шт.

11

19H2472

Cap Screw

1/2" X 1"

1шт.

12

12H301

Lock Washer

1/2"

1шт.

13

R28782

O-Ring

2шт.

14

38H1435

Elbow Fitting

2шт.

15

T77613

O-Ring

2шт.

16

AT280275

Hydraulic Hose

(1/2 INCH X 37 INCH X 11/16 INCH)

2шт.

17

M131862

Hyd. Quick-Connect Coupler

FEMALE

1шт.

18

M131863

Hydr. Quick Coupler Plug

MALE

1шт.

19

AT260410

Lubrication Fitting

2шт.

20

AT260409

Bushing

2шт.
