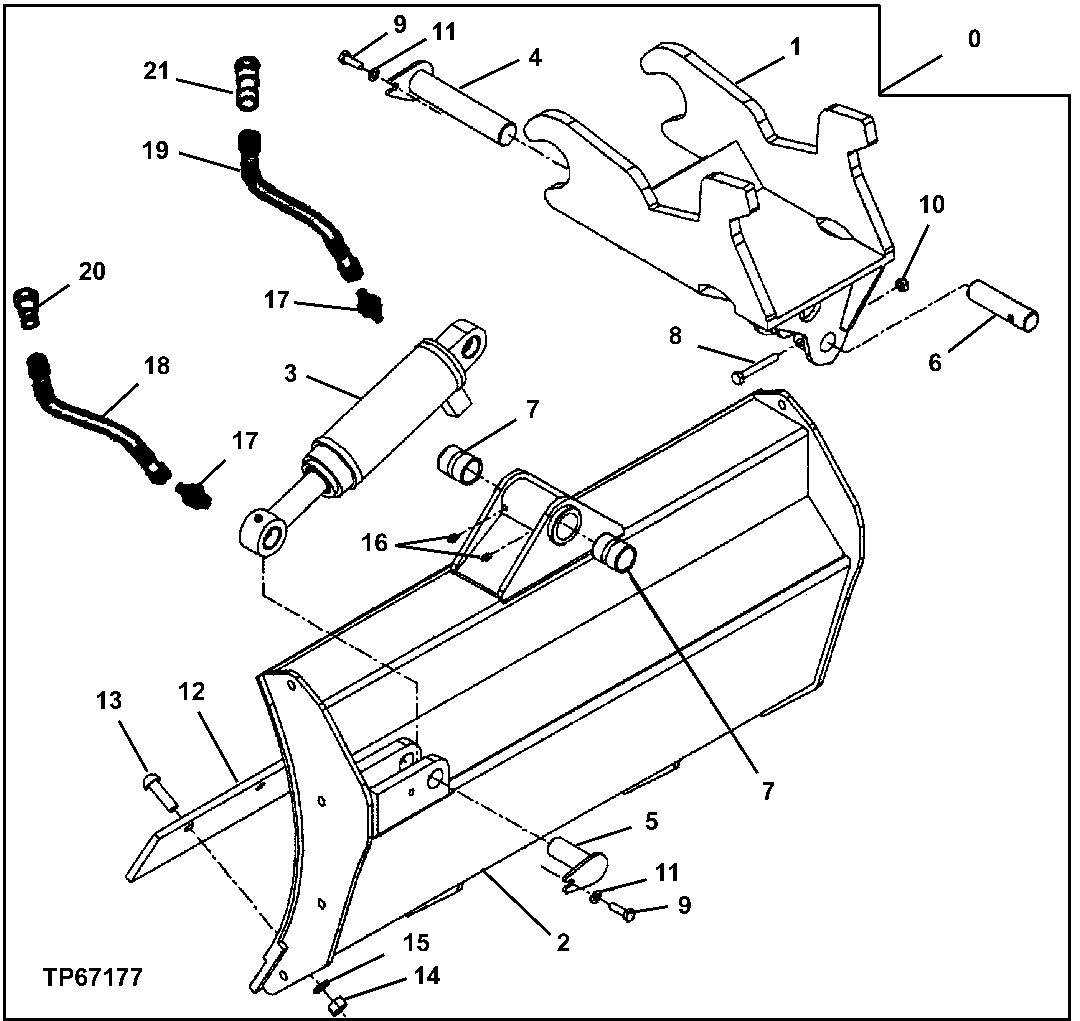

Запчасти John Deere 554 113 - Hydraulic Tilt Blade 3201 Blade

0

Blade

(WHOLEGOODS) ( AT191389 NLA)

1шт.

1

T185193

Adapter Fitting

1шт.

2

T185194

Blade

1шт.

3

AT191390

Cylinder

(COMPONENTS ON ANOTHER PAGE)

1шт.

4

T185195

Pin

1шт.

5

T185196

Pin

1шт.

6

T185197

Pin

1шт.

7

T185198

Bushing

2шт.

8

T185199

Bolt

1шт.

9

19H3239

Cap Screw

3/8" X 1-1/4"

2шт.

10

T185201

Nut

1шт.

11

24H1305

Washer

13/32" X 13/16" X 0.065"

2шт.

12

T185203

Cutting Edge

1шт.

13

T185204

Bolt

7шт.

14

T185205

Nut

7шт.

15

T185206

Washer

7шт.

16

N220668

Orifice

2шт.

17

X6F5OLO-S

Adapter Fitting

2шт.

18

AT280473

Hydraulic Hose

(SUB FOR AT191654, THIS APPLICATION)

1шт.

19

AT280474

Hydraulic Hose

(SUB FOR AT191655, THIS APPLICATION)

1шт.

20

M131862

Hyd. Quick-Connect Coupler

1шт.

21

M131863

Hydr. Quick Coupler Plug

1шт.
