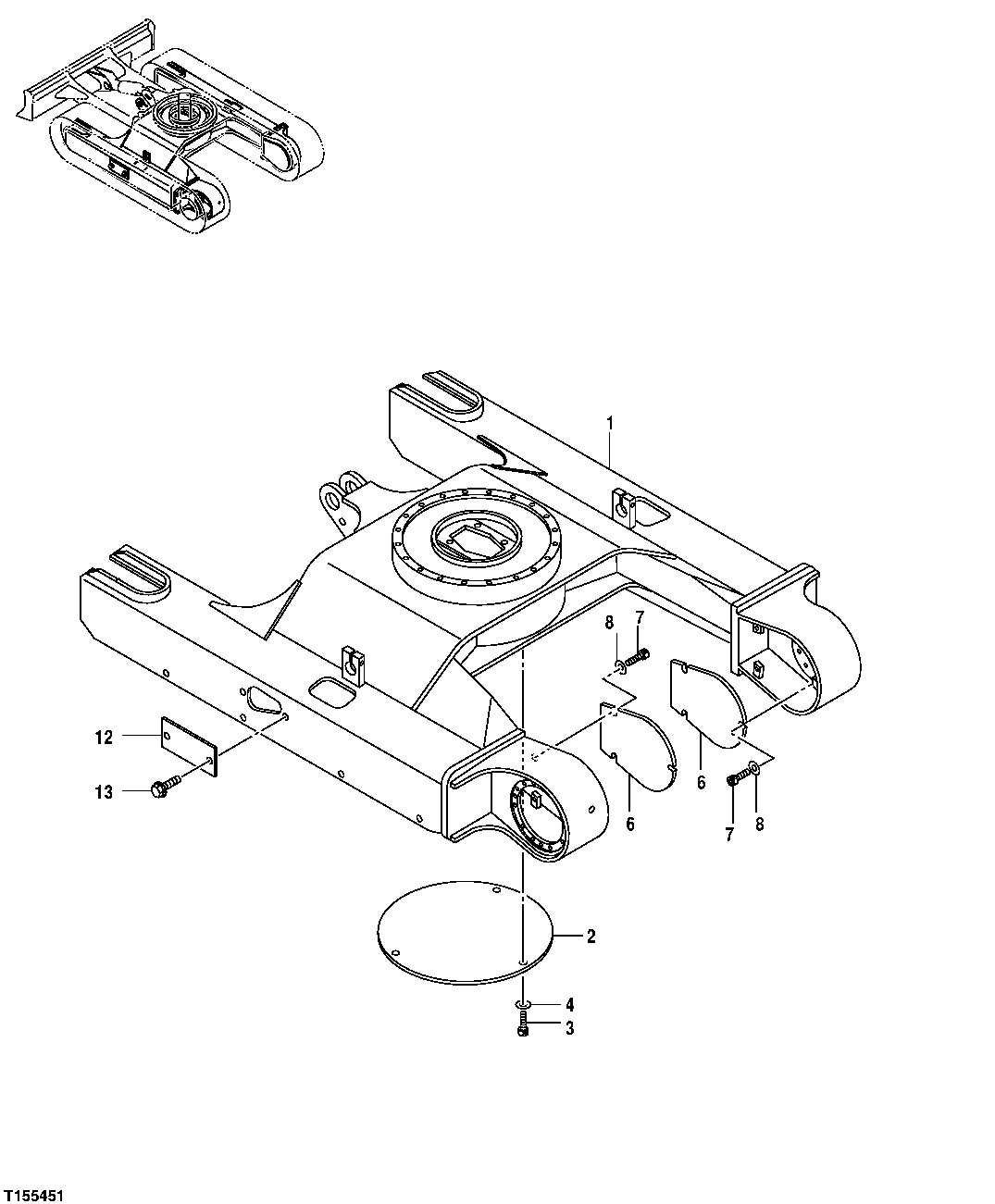

Запчасти John Deere 554 1 - Track Frame 0130 TRACK SYSTEM

1

8090034

Frame

1шт.

2

4365090

Cover

1шт.

3

19M8017

Cap Screw

M12 X 20

3шт.

4

24M7047

Washer

13 X 24 X 2.500 mm SUB FOR J254012

3шт.

6

4392163

Cover

2шт.

7

19M8440

Screw

M10 X 25

6шт.

8

24M7096

Washer

10.500 X 18 X 1.600 mm SUB FOR J254010

6шт.

12

4475138

Plate

2шт.

13

19M7932

Cap Screw

M8 X 16 SUB FOR J090816

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.
