Запчасти John Deere 554 107 - Travel Alarm, Harness and Bracket 2004 Warning Devices

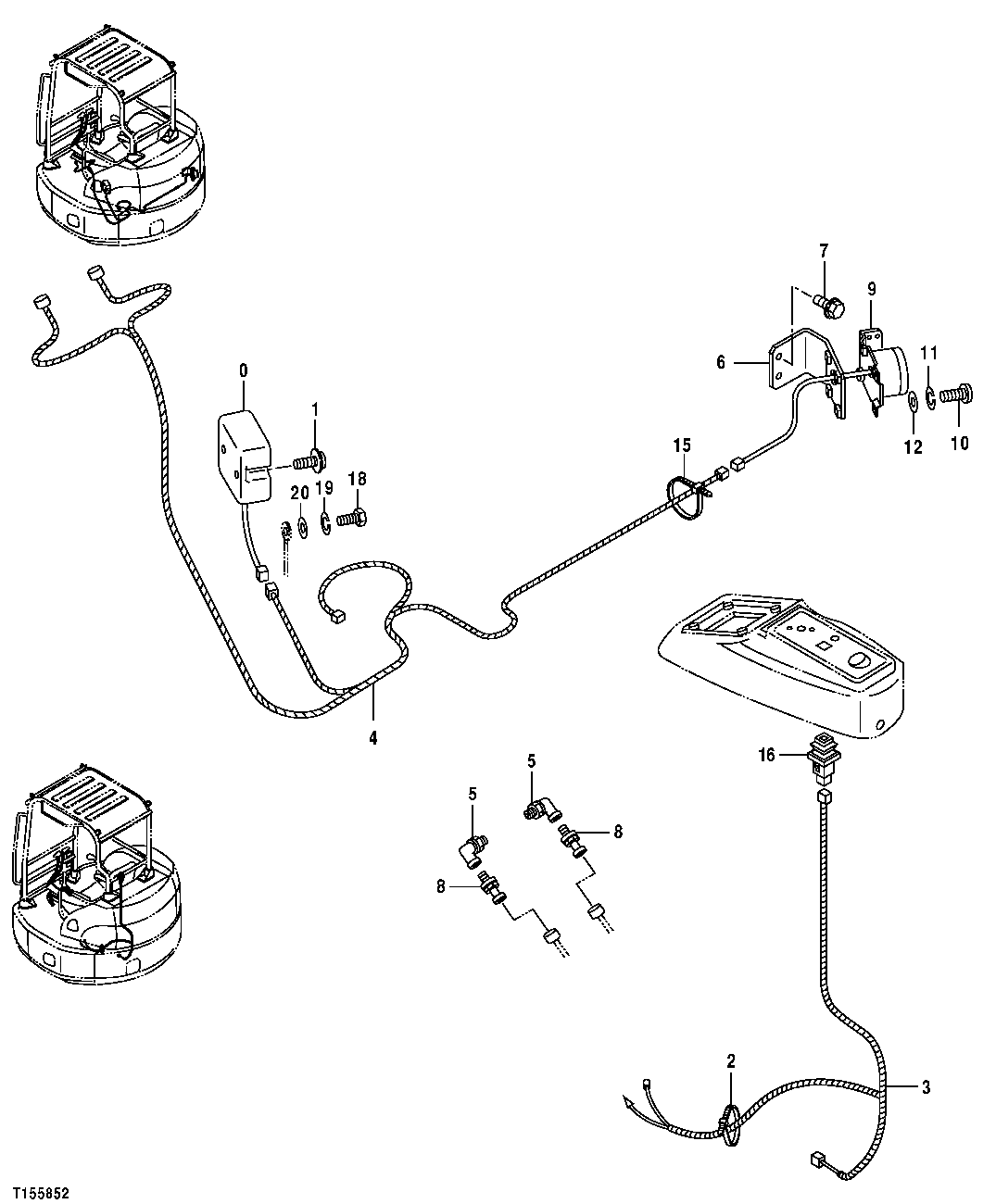

Схема запчастей John Deere 554 - 107 - Travel Alarm, Harness and Bracket 2004 Warning Devices

Артикул

Название

Примечание

Количество

0

4469599

Vehicle Controller

Travel Alarm Controller SUB FOR 4437179

1шт.

1

21M7277

Screw

M6 X 25 SUB FOR AT153815, SUB FOR J680625

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

2

H77698

Tie Band

No Longer Used

5шт.

3

4462104

Wiring Harness

1шт.

4

4469910

Wiring Harness

SUB FOR 4649522

1шт.

5

4376846

Elbow Fitting

2шт.

M800650

Packing

SUB FOR 957366

2шт.

6

9760456

Bracket

SUB FOR 8087202

1шт.

7

19M7407

Cap Screw

M8 X 25 SUB FOR AT256004

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm No Longer Used

2шт.

8

4436535

Sensor

SUB FOR 4332040, THIS APPLICATION

2шт.

M800650

Packing

SUB FOR 957366

2шт.

9

4436499

Travel Warning Alarm

1шт.

10

21M7265

Screw

M5 X 12 SUB FOR J691512

4шт.

11

12M7064

Lock Washer

5 mm

4шт.

12

24M7087

Washer

5.500 X 10 X 1 mm SUB FOR J253105

4шт.

15

H77698

Tie Band

10шт.

16

4431075

Switch

1шт.

18

19M7932

Cap Screw

M8 X 16 No Longer Used

1шт.

19

12M7056

Lock Washer

8 mm No Longer Used

1шт.

20

12M7036

Lock Plate

No Longer Used

1шт.

Выбрано товаров: 24
