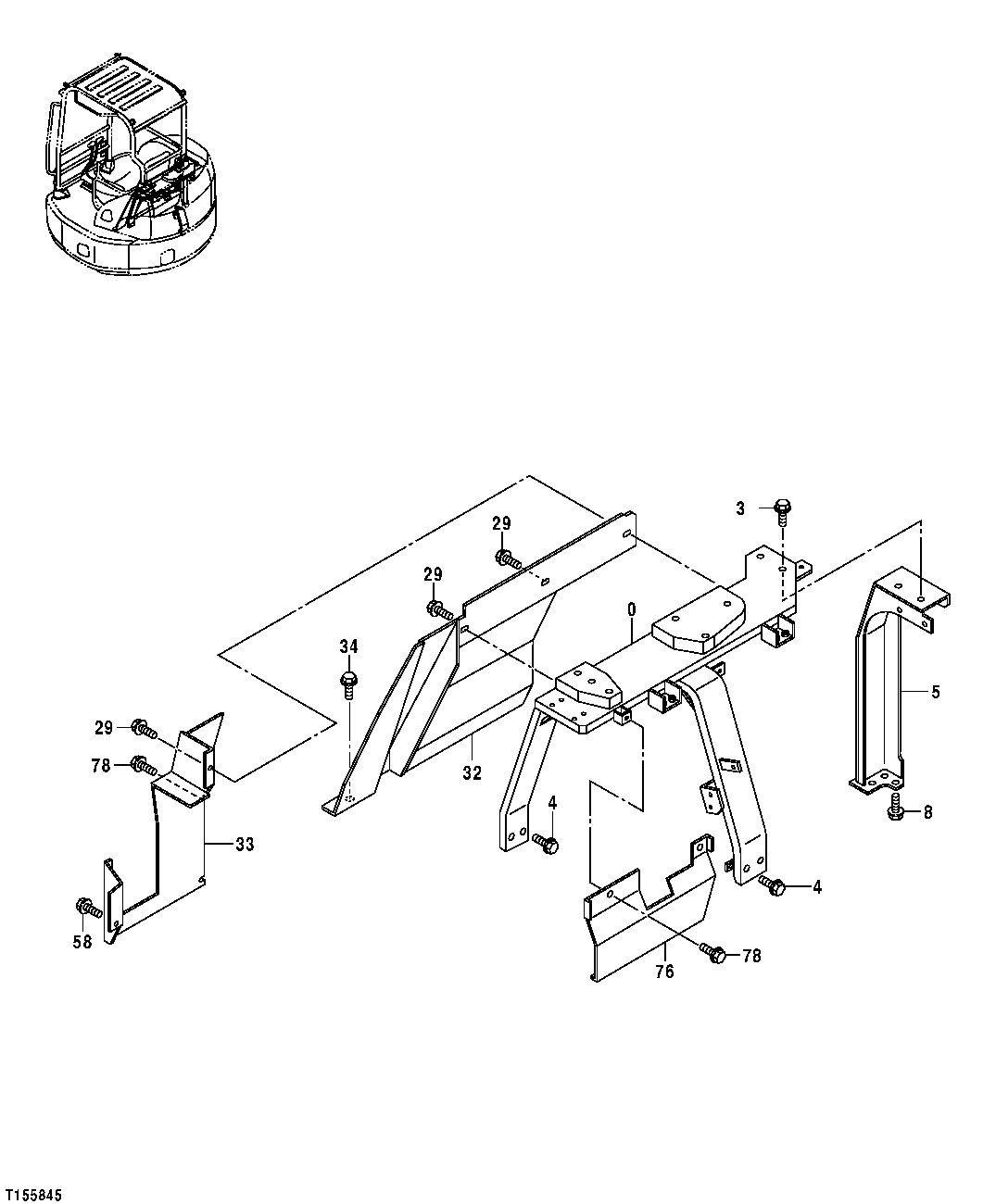

Запчасти John Deere 554 101 - Cover (Engine Compartment) 1910 Hood Or Engine Enclosure

0

6020746

Support

1шт.

3

19M7073

Cap Screw

M12 X 50 SUB FOR AT255992

2шт.

24M7044

Washer

13 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

4

19M7496

Cap Screw

M12 X 45 SUB FOR AT255991

4шт.

24M7044

Washer

13 X 20 X 2 mm

4шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

4шт.

5

7042501

Bracket

1шт.

8

19M7872

Cap Screw

M12 X 25 SUB FOR J051225

3шт.

24M7047

Washer

13 X 24 X 2.500 mm

3шт.

12M7067

Lock Washer

12 mm

3шт.

29

19M7407

Cap Screw

M8 X 25 SUB FOR AT256004

3шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

Washer

12M7065 NLA

3шт.

32

7041801

Cover

1шт.

33

8086949

Cover

1шт.

34

19M7407

Cap Screw

M8 X 25 SUB FOR AT256004

3шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

Washer

12M7065 NLA

3шт.

58

19M7560

Cap Screw

M6 X 16 SUB FOR J900616, SUB FOR 1 9M8425, OR J090616THIS APPLICATION

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm SUB FOR A59010 6, SUB FOR 24M7267, THIS APPLICATION

1шт.

12M7006

Lock Washer

6 mm

1шт.

76

8100665

Cover

SUB FOR 3094748

1шт.

78

19M7881

Screw

M8 X 20 SUB FOR J090820 OR J020820

4шт.

Washer

12M7065 NLA

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.
