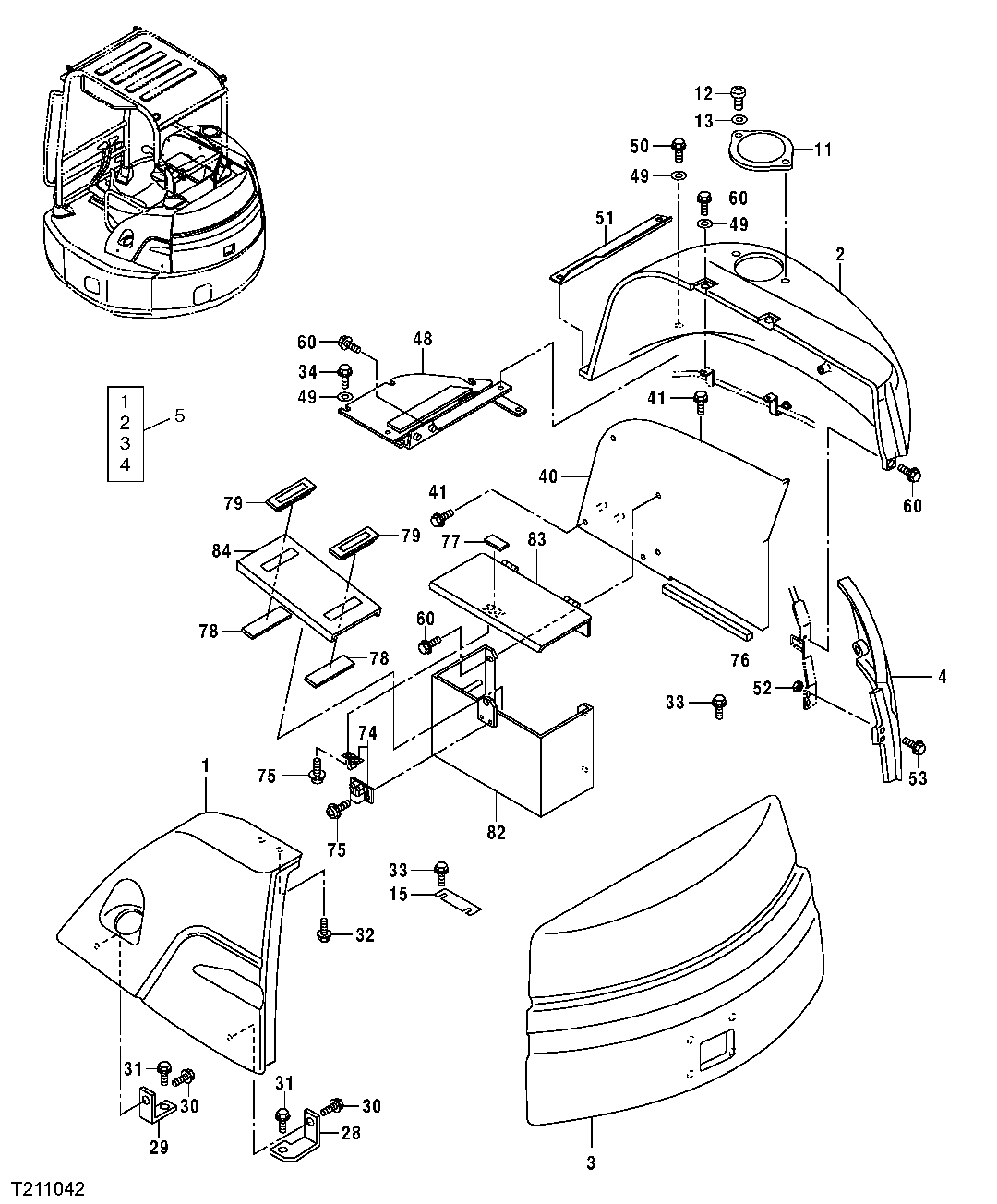

Запчасти John Deere 554 97 - COVERS (REAR, LEFT AND RIGHT UPPER) 1910 Hood Or Engine Enclosure

1

4485792J

Cover

SUB FOR 4485790 OR 4485792

1шт.

2

4607069

Cover

SUB FOR 4485793

1шт.

3

4485798

Cover

SUB FOR 4485796

1шт.

4

4485803J

Cover

SUB FOR 4485801 OR 4485803

1шт.

5

Cover

4485961 NO LONGER AVAILABLE

1шт.

11

3091308J

Cover

SUB FOR 3091308

1шт.

12

4373779

Bolt

2шт.

13

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

15

4402916

Solid Shim

1шт.

28

4393556

Bracket

1шт.

29

4393557

Bracket

1шт.

30

19M7881

Screw

M8 X 20 SUB FOR AT256002

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm 2 PER BOLT

4шт.

Washer

12M7065 NLA

2шт.

31

19M7407

Cap Screw

M8 X 25 SUB FOR AT256004

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

32

19M8008

Cap Screw

M8 X 35 SUB FOR AT256006

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

33

19M7881

Screw

M8 X 20 SUB FOR J090820 OR J020820

3шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

Washer

12M7065 NLA

3шт.

34

19M7407

Cap Screw

M8 X 25 SUB FOR AT256004

7шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

7шт.

Washer

12M7065 NLA

7шт.

40

7043269

Bracket

1шт.

41

19M7881

Screw

M8 X 20 SUB FOR J090820 OR J020820

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.

48

7041177

Bracket

1шт.

49

4346037

Washer

8шт.

50

19M7407

Cap Screw

M8 X 25 SUB FOR J080825

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

51

4479552

Plate

1шт.

52

14M7273

Nut

M8 SUB FOR J231108

2шт.

53

19M7407

Cap Screw

M8 X 25 SUB FOR AT256004

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

Washer

12M7065 NLA

2шт.

60

19M7932

Cap Screw

M8 X 16 SUB FOR J090816

9шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

9шт.

Washer

12M7065 NLA

9шт.

74

4476250

Catch

1шт.

75

J460308

Screw With Washer

4шт.

76

4481971

Isolator

1шт.

77

4481877

Isolator

1шт.

78

4483192

Isolator

2шт.

79

4483577

Handle

2шт.

82

7044006

Bracket

1шт.

83

8090883

Bracket

1шт.

84

4489447

Plate

1шт.
