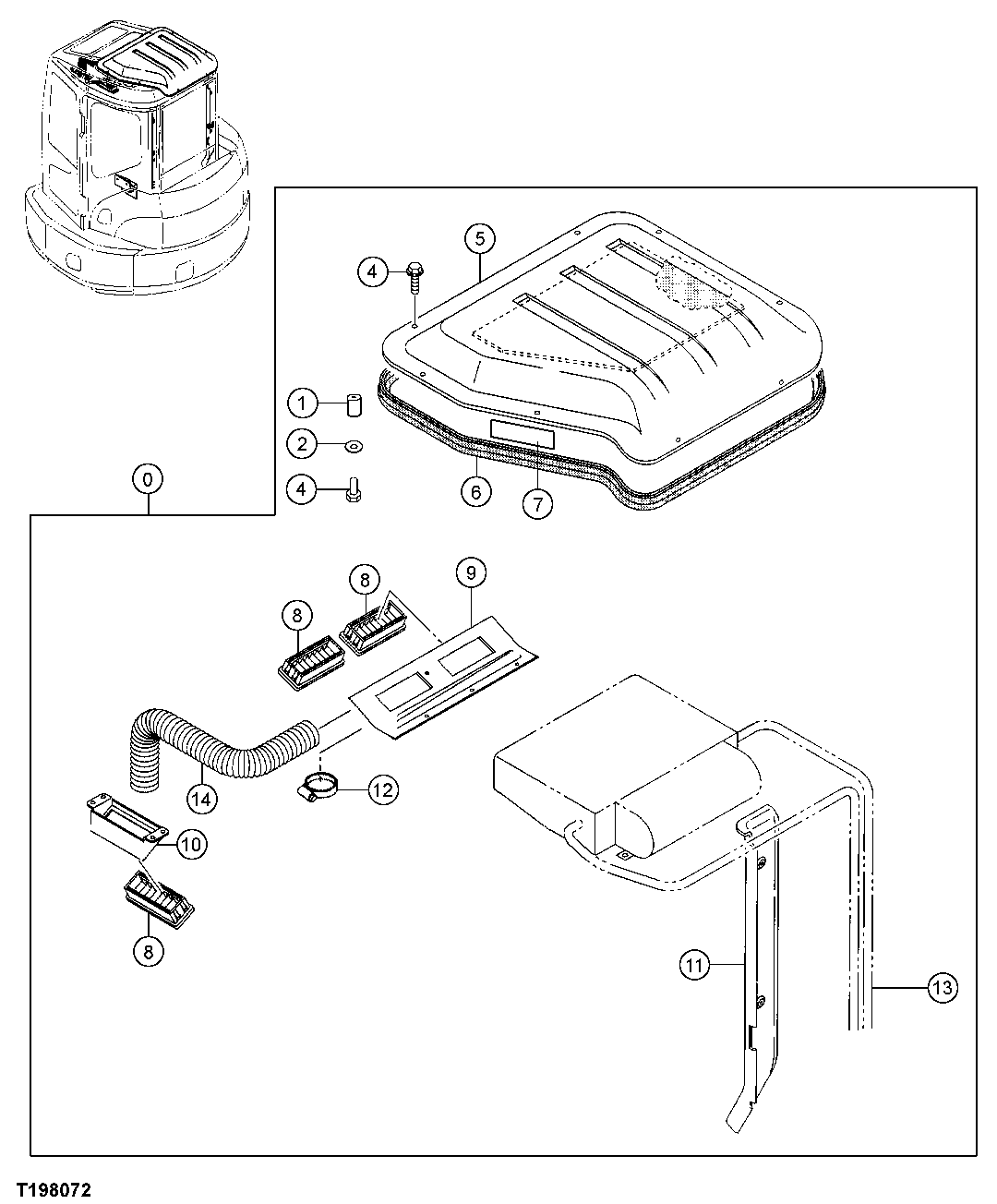

Запчасти John Deere 554 95 - AIR CONDITIONER ROOF TOP 1830 HEATING AND AIR CONDITIONING

0

Air Conditioner Kit

(WHOLEGOODS) ( AT305610 NLA)

1шт.

1

T203577

Bushing

6шт.

2

T125809

Washer

6шт.

4

19M7300

Cap Screw

M6 X 10

13шт.

24M7139

Washer

6.400 X 18 X 1.600 mm

13шт.

5

4483447

Roof

1шт.

6

AT305616

Isolator

1шт.

7

AT305617

Isolator

(FOAM)

1шт.

8

AT306882

Louver

3шт.

9

T205275

Plate

1шт.

10

T205274

Plate

1шт.

11

T205999

Panel

(CORNER TRIM)

1шт.

12

AR21999

Hose Clamp

4шт.

13

T205278

Hose

(DRAIN TUBE - CUT TO LENGTH)

1шт.

14

T205279

Hose

(FLEX)

1шт.
