83 - CONSOLE WRIST REST (RIGHT AND LEFT)

Запчасти John Deere 554 83 - CONSOLE WRIST REST (RIGHT AND LEFT) 1810 Operator Enclosure

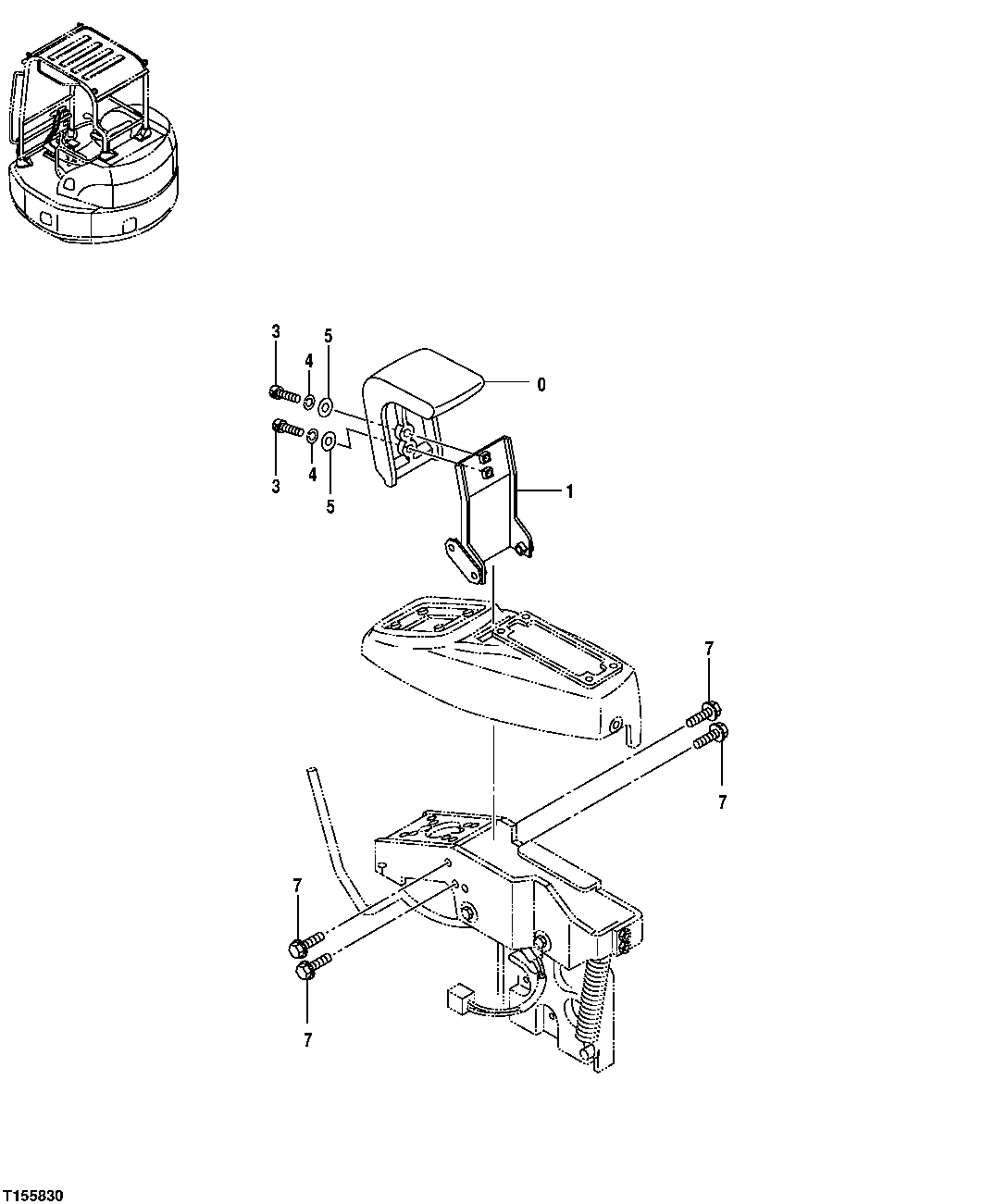

Схема запчастей John Deere 554 - 83 - CONSOLE WRIST REST (RIGHT AND LEFT) 1810 Operator Enclosure
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

2048027

Cushion

1шт.

1

8086911

Bracket

1шт.

3

19M7881

Screw

M8 X 20 SUB FOR J770820

2шт.

4

Washer

12M7065 NLA, SUB FOR J252108

2шт.

5

Washer

12M7036 NO LONGER USED

2шт.

7

19M8425

Cap Screw

M6 X 16 SUB FOR J090616

4шт.

24M7267

Washer

6.400 X 11 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.
