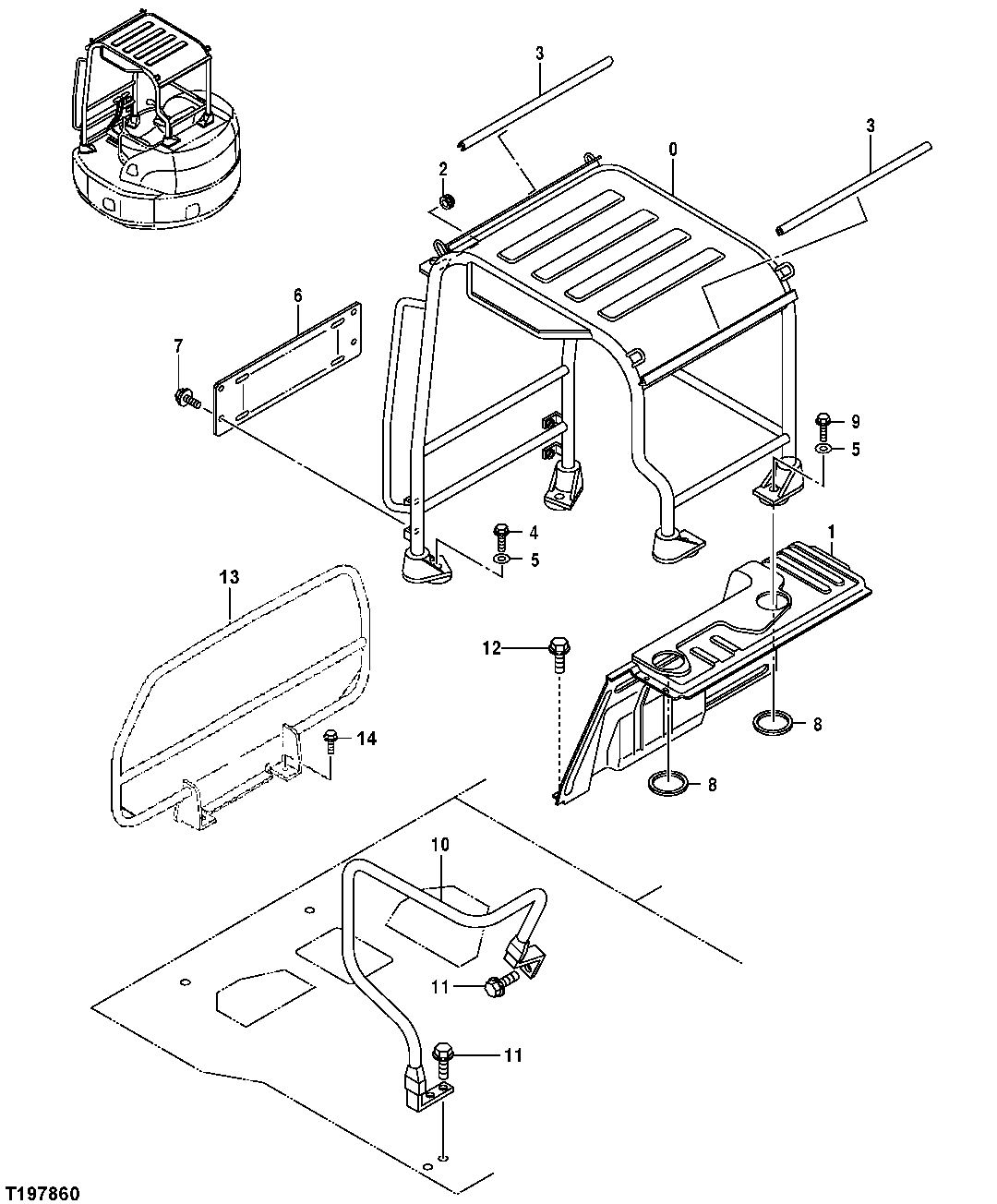

Запчасти John Deere 554 82 - CANOPY, MOUNTS, REAR COVER AND HANDRAIL 1810 Operator Enclosure

0

Canopy

6020975 NO LONGER AVAILABLE, FU RNISH 6022456 ALONG WITH 4603275

1шт.

6022456

Canopy

SUB FOR 6021845

1шт.

1

4610602

Cover

1шт.

2

4207699

Bushing

1шт.

3

4427072

Seal

2шт.

4

19M7135

Cap Screw

M16 X 70 SUB FOR J971670

2шт.

5

24M7053

Washer

17 X 30 X 3 mm

4шт.

6

4472801

Guard

1шт.

4603275

Guard

1шт.

7

19M7407

Cap Screw

M8 X 25 SUB FOR AT256004

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

Washer

12M7065 NLA

4шт.

8

4416050

Seal

2шт.

9

19M8485

Cap Screw

M16 X 90 SUB FOR J971690 OR 19M7609

2шт.

10

7044911

Bracket

SUB FOR 7041946

1шт.

11

19M7662

Cap Screw

M10 X 30 SUB FOR AT255985

3шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

3шт.

12M7066

Lock Washer

10 mm

3шт.

12

19M7407

Cap Screw

M8 X 25

7шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

7шт.

Washer

12M7065 NLA

7шт.

13

7031025

Fuel Line

1шт.

14

19M7387

Cap Screw

M12 X 40

2шт.

12M7067

Lock Washer

12 mm

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.
