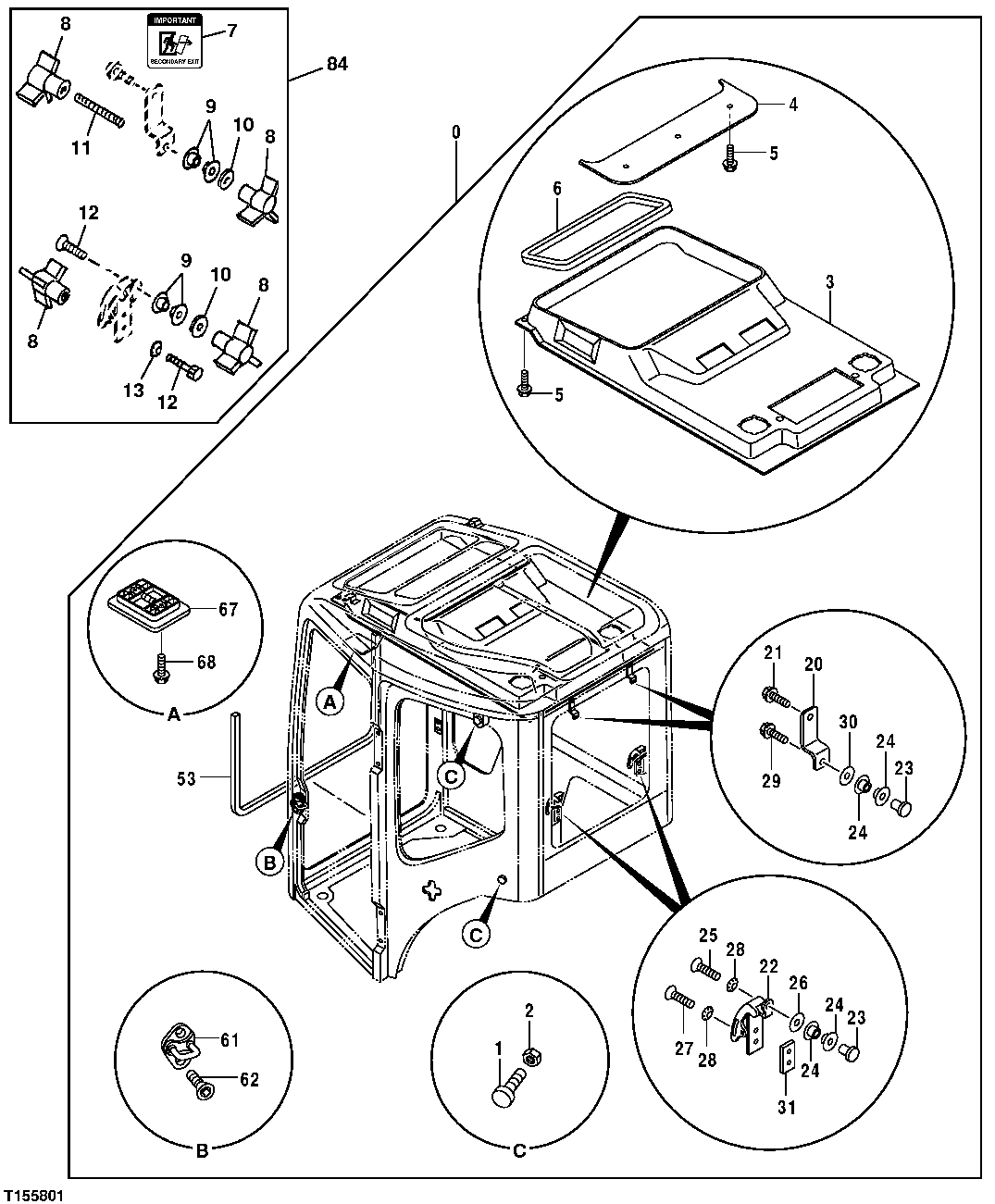

Запчасти John Deere 554 75 - CAB COMPONENTS (INSIDE ROOF AND INTERIOR LIGHT) 1810 Operator Enclosure

0

9203820

Cab

(SUB FOR 4454007)(CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS L ISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

4347063

Stop

2шт.

2

14M7274

Nut

M10 (SUB FOR 4424763)

2шт.

3

4424722

Cover

1шт.

4

4425835

Cover

1шт.

5

4424723

Rivet

5шт.

6

4424721

Weatherstrip

1шт.

7

T167256

Label

1шт.

8

T184750

Knob

8шт.

9

4347062

Bumper

(SUB FOR AT252063)

8шт.

10

24H1822

Washer

11/32" X 7/8" X 1/16"

4шт.

11

M87155

Stud

2шт.

12

19H3512

Cap Screw

1/4" X 1-1/4"

4шт.

13

12M7080

Lock Washer

6.400 mm (SUB FOR AT252132 OR 4424751)

2шт.

20

4424675

Leaf Spring

2шт.

21

19M9045

Screw

M6 X 16 (SUB FOR 4380970)

2шт.

22

4347060

Handle

2шт.

23

4424676

Retainer

4шт.

24

4347062

Bumper

8шт.

25

4424750

Cap Screw

2шт.

26

12M7080

Lock Washer

6.400 mm (SUB FOR 4424751)

2шт.

27

4380958

Bolt

4шт.

28

T205218

Washer

(SUB FOR 4424752, 4107762)

4шт.

29

4424753

Cap Screw

2шт.

30

4436206

Washer

2шт.

31

4424677

Plate

2шт.

53

4424692

Weatherstrip

1шт.

61

4347035

Striker

1шт.

62

4424759

Cap Screw

2шт.

67

4424703

Lamp

1шт.

68

4424760

Bolt

2шт.

84

AT190956

Kit

(REAR WINDOW SECONDARY EXIT KIT)

1шт.
