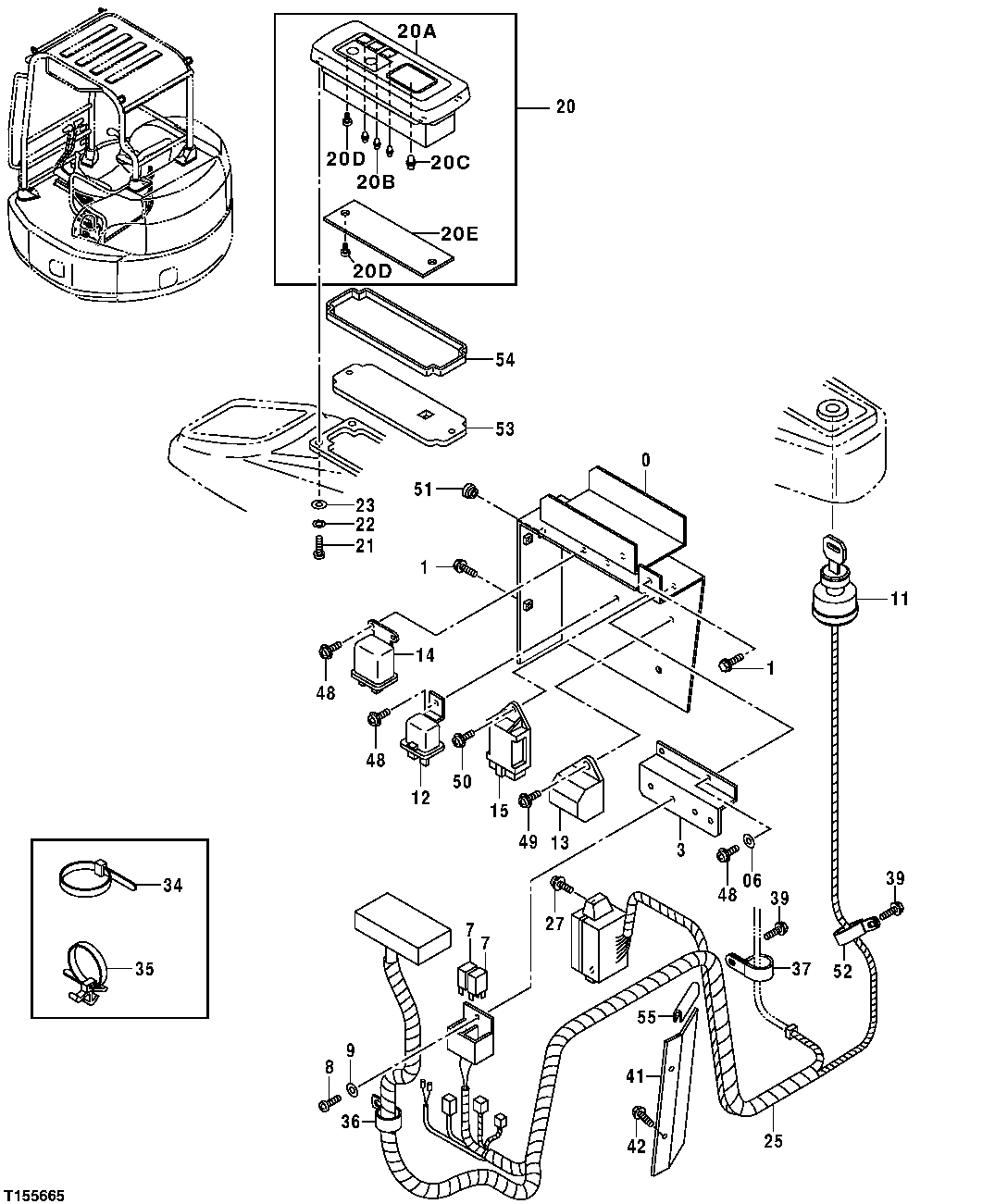

Запчасти John Deere 554 66 - Switch Box Relays And Start Switch Wiring Harness 1674 Wiring Harness And Switches

0

8082604

Circuit Box

1шт.

1

19M7881

Screw

M8 X 20 SUB FOR J090820 OR J020820

3шт.

Washer

12M7065 NLA

3шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

3шт.

3

8076843

Bracket

1шт.

6

12M7054

Lock Washer

19 mm

2шт.

7

4657417

Relay

SUB FOR 4394590

2шт.

8

21M7265

Screw

M5 X 12 SUB FOR J691512

2шт.

21M7265

Screw

M5 X 12

1шт.

9

24M7087

Washer

5.500 X 10 X 1 mm SUB FOR J253105

2шт.

24M7027

Washer

5.300 X 10 X 1 mm

1шт.

11

4478870

Rotary Switch

SUB FOR AT255962 OR 4432734

1шт.

AT194969

Key

Set of Two Keys SUB FOR AT147803

1шт.

12

4288451

Relay

1шт.

13

4355587

Relay

1шт.

4484741

Relay

1шт.

14

4355584

Relay

1шт.

15

8970405021

Timer

SUB FOR 4468774 OR 8970405020

1шт.

20

Instrument Panel

4403739 NLA, SUB FOR AT251442, SUB 9237341

1шт.

9237341

Panel

INCLUDES 4629671

1шт.

4629671

Seal

Not Illustrated

1шт.

20A

4449185

Cover

1шт.

20B

4449186

Bulb

3шт.

20C

4449187

Bulb

1шт.

20D

4449188

Screw

6шт.

20E

4449189

Cover

1шт.

21

21M7285

Screw

M6 X 12

4шт.

22

12M7006

Lock Washer

6 mm

4шт.

23

12M7054

Lock Washer

19 mm

4шт.

25

1030260

Wiring Harness

1шт.

27

J680620

Screw With Washer

2шт.

34

H77698

Tie Band

10шт.

H77698

Tie Band

11шт.

35

4254600

Clip

5шт.

36

T24432

Clamp

SUB FOR 4190277

1шт.

XCL-29

Hose Clamp

SUB FOR 4193848

1шт.

37

4190261

Clip

1шт.

39

19M7881

Screw

M8 X 20 SUB FOR J090820 OR J020820

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

41

4449180

Cover

1шт.

42

19M7881

Screw

M8 X 20 SUB FOR J090820 OR J020820

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

48

J900614

Bolt

SUB FOR J670614 OR TH104056

5шт.

12M7006

Lock Washer

6 mm

5шт.

49

Screw With Washer

J680616 NLA

1шт.

21M7577

Socket Head Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

50

J680620

Screw With Washer

1шт.

51

4236262

Bushing

1шт.

52

R73384

Clamp

SUB FOR 4190253

1шт.

53

4477252

Isolator

1шт.

54

4477251

Isolator

1шт.

55

4399148

Isolator

1шт.
