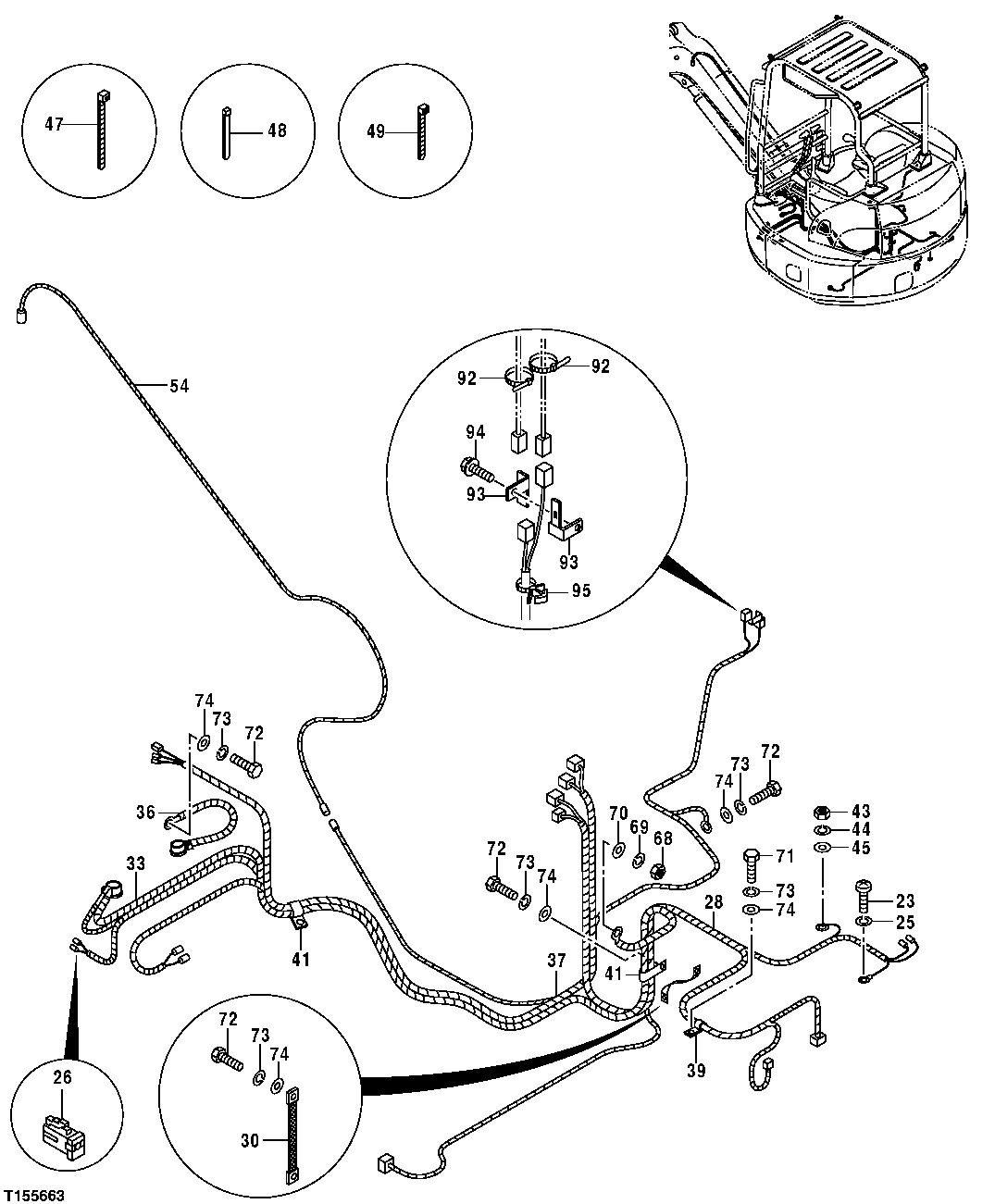

Запчасти John Deere 554 64 - Wiring Harness 1674 Wiring Harness And Switches

23

21M7252

Screw

M4 X 16

1шт.

25

12M7064

Lock Washer

5 mm

1шт.

26

4331898

Fuse

45 AMP, 4414201 NOT USED THIS APPLICATION

2шт.

28

3094555

Wiring Harness

SEE DTAC SOLUTION FOR R EPAIR KIT AND CONNECTORS

1шт.

30

4287366

Ground Cable

1шт.

33

4392494

Cable

1шт.

36

4409658

Cable

1шт.

37

3094537

Wiring Harness

1шт.

39

4190261

Clip

1шт.

41

T32854

Clamp

SUB FOR 4190282

2шт.

43

14M7272

Nut

M6

1шт.

44

12M7006

Lock Washer

6 mm

1шт.

45

12M7054

Lock Washer

19 mm

1шт.

47

H77698

Tie Band

21шт.

48

R44302

Tie Band

SUB FOR 4326365

9шт.

49

H77698

Tie Band

SUB FOR M88199

6шт.

54

4478968

Wiring Harness

1шт.

68

14M7273

Nut

M8 SUB FOR J231108

1шт.

69

Washer

12M7065 NLA, SUB FOR J252108

1шт.

70

12M7036

Lock Plate

SUB FOR J253108

1шт.

71

19M8324

Cap Screw

M10 X 16 SUB FOR J971016

1шт.

72

19M7938

Cap Screw

M10 X 20

3шт.

73

12M7066

Lock Washer

10 mm SUB FOR J252210

7шт.

74

24M7028

Washer

10.500 X 20 X 2 mm SUB FOR J253110 OR A590110

7шт.

75

14M7274

Nut

M10 NOT ILLUSTRATED

2шт.

92

H77698

Tie Band

2шт.

93

4257159

Bracket

2шт.

94

19M7881

Screw

M8 X 20 SUB FOR J090820 OR J020820

1шт.

Washer

12M7065 NLA

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

95

4254600

Clip

1шт.
