Запчасти John Deere 30LCR 72 - COLD WEATHER STARTING AID 0505 Cold Weather Starting Aids

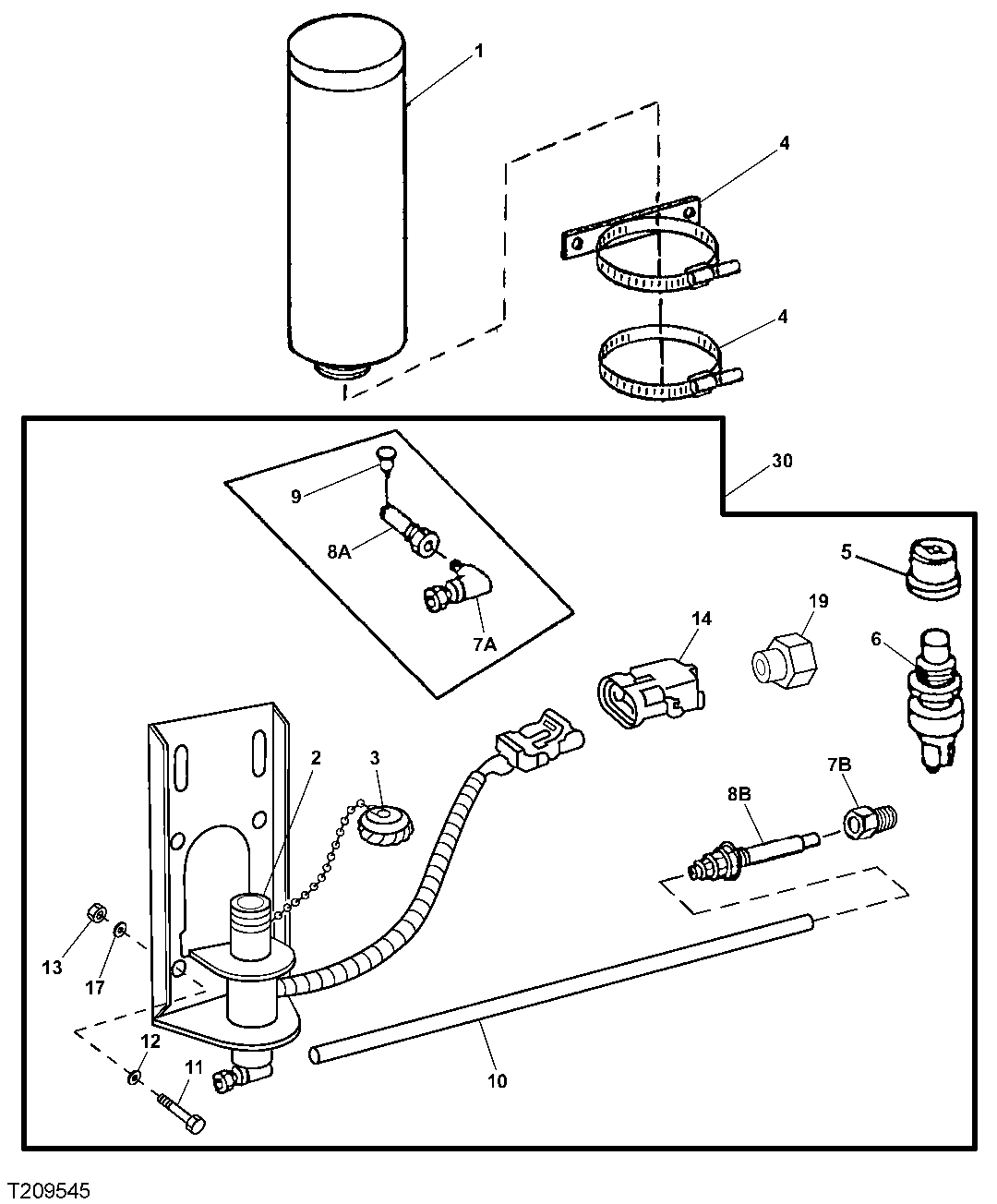

Схема запчастей John Deere 30LCR - 72 - COLD WEATHER STARTING AID 0505 Cold Weather Starting Aids

Артикул

Название

Примечание

Количество

1

AT42005

Starting Fluid

1шт.

2

AT170759

Solenoid

1шт.

3

AT171539

Cap

1шт.

4

AT42003

Clamp

2шт.

5

Cap

NO LONGER REQUIRED

1шт.

6

4384759

Switch

SUB FOR AT178893

1шт.

7A

RE21790

Elbow Fitting

SUB FOR AT183222, AND T164133THIS APPLICATION

1шт.

7B

T164133

Adapter Fitting

1шт.

8A

R47160

Nozzle Holder

SUB FOR AT183222, AND T164133THIS APPLICATION

1шт.

8B

AT183222

Nozzle

1шт.

9

T155858

Nozzle

USE WITH R47160

1шт.

10

Tube

CUT TO LENGTH FROM T78593 BULK MATER IAL; DT5069 NOT AVAILABLE FOR SERVICE

1шт.

11

19M7407

Cap Screw

M8 X 25

4шт.

12

Washer

12M7065 NLA

4шт.

13

14M7273

Nut

M8

4шт.

14

Connector

AL2976T NO LONGER REQUIRED

1шт.

17

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

18

R44302

Tie Band

NOT ILLUSTRATED

ARшт.

19

T175293

Adapter Fitting

1шт.

30

Field Installation Kit

WHOLEGOODS, ETHER; AT178845 NLA

1шт.

Выбрано товаров: 20
