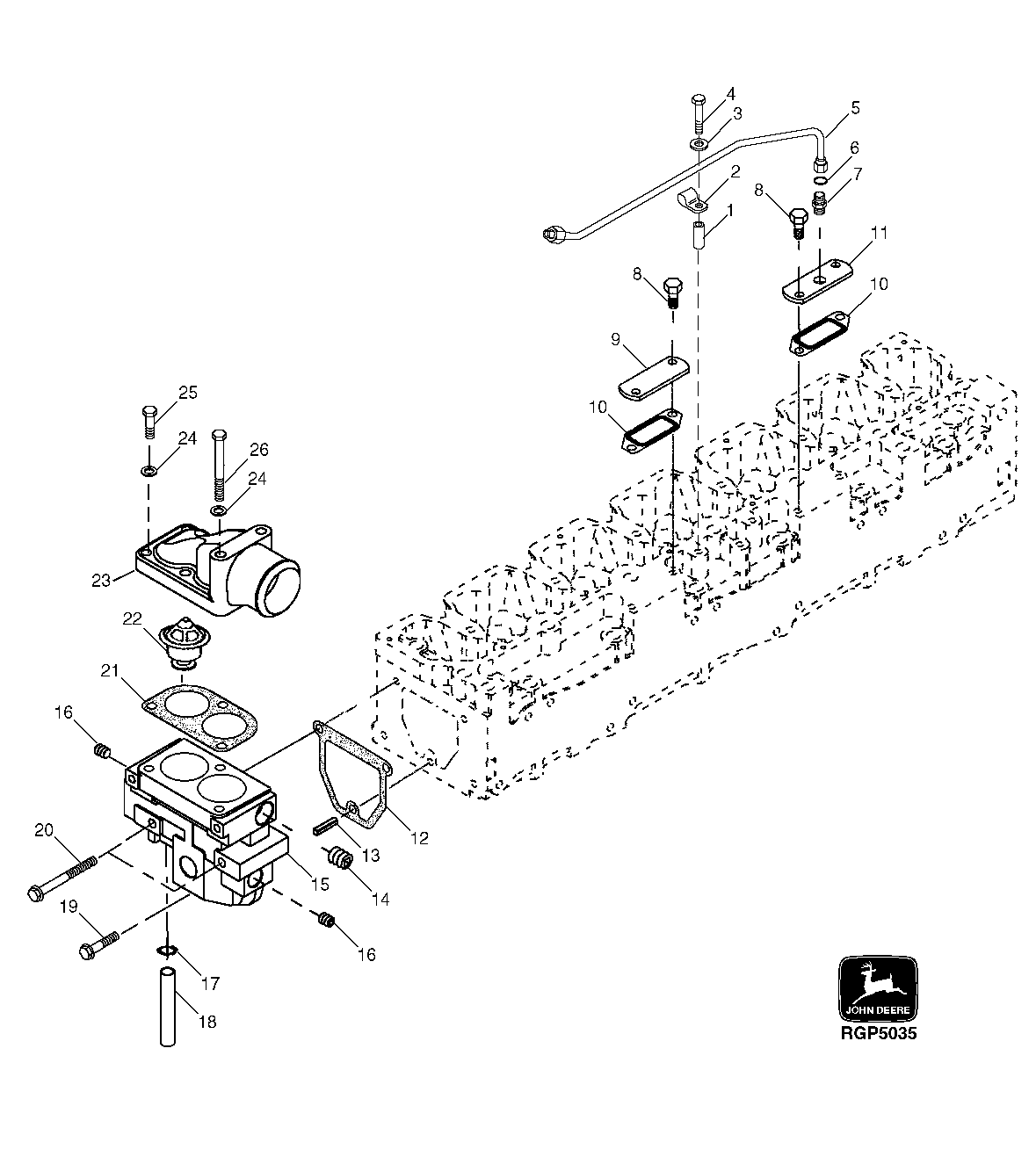

Запчасти John Deere 30LCR 53 - WATER MANIFOLD, THERMOSTAT 0400 Engine 6081HT001-RG26768 6081HT001

1

L3483N

Bushing

1шт.

2

T29527

Clamp

1шт.

3

24H1302

Washer

13/32" X 11/16" X 0.035"

1шт.

4

19H1944

Cap Screw

3/8" X 2-3/4"

1шт.

5

RE501901

Line

1шт.

6

T11899

O-Ring

1шт.

7

T80938

Adapter Fitting

1шт.

8

T53268

Screw

4шт.

9

R86061

Strap

1шт.

10

R88397

Gasket

2шт.

11

R114160

Cover

1шт.

12

R86062

Gasket

1шт.

13

34H329

Spring Pin

5/16" X 1-1/4"

1шт.

14

15H690

Pipe Plug

3/4"

1шт.

15

R500197

Manifold

(SUB R519580)

1шт.

R109859

Manifold

1шт.

16

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

2шт.

17

R72328

O-Ring

(USE WITH R124742 AND R500197)

2шт.

R501810

O-Ring

(USE WITH R503445 AND R109859)

2шт.

18

R125025

Tube

(USE WITH R124742 AND R500197)

1шт.

RE509095

Tube

(USE WITH R503445 AND R109859)

1шт.

19

R133999

Cap Screw

1шт.

20

R133998

Screw

2шт.

21

R124607

Gasket

1шт.

22

RE69581

Thermostat

2шт.

AR48675

Thermostat

2шт.

23

R89439

Cover

1шт.

24

24M7096

Washer

10.500 X 18 X 1.600 mm

3шт.

25

19H3239

Cap Screw

3/8" X 1-1/4"

2шт.

26

19H2639

Cap Screw

3/8" X 3-3/8"

1шт.
