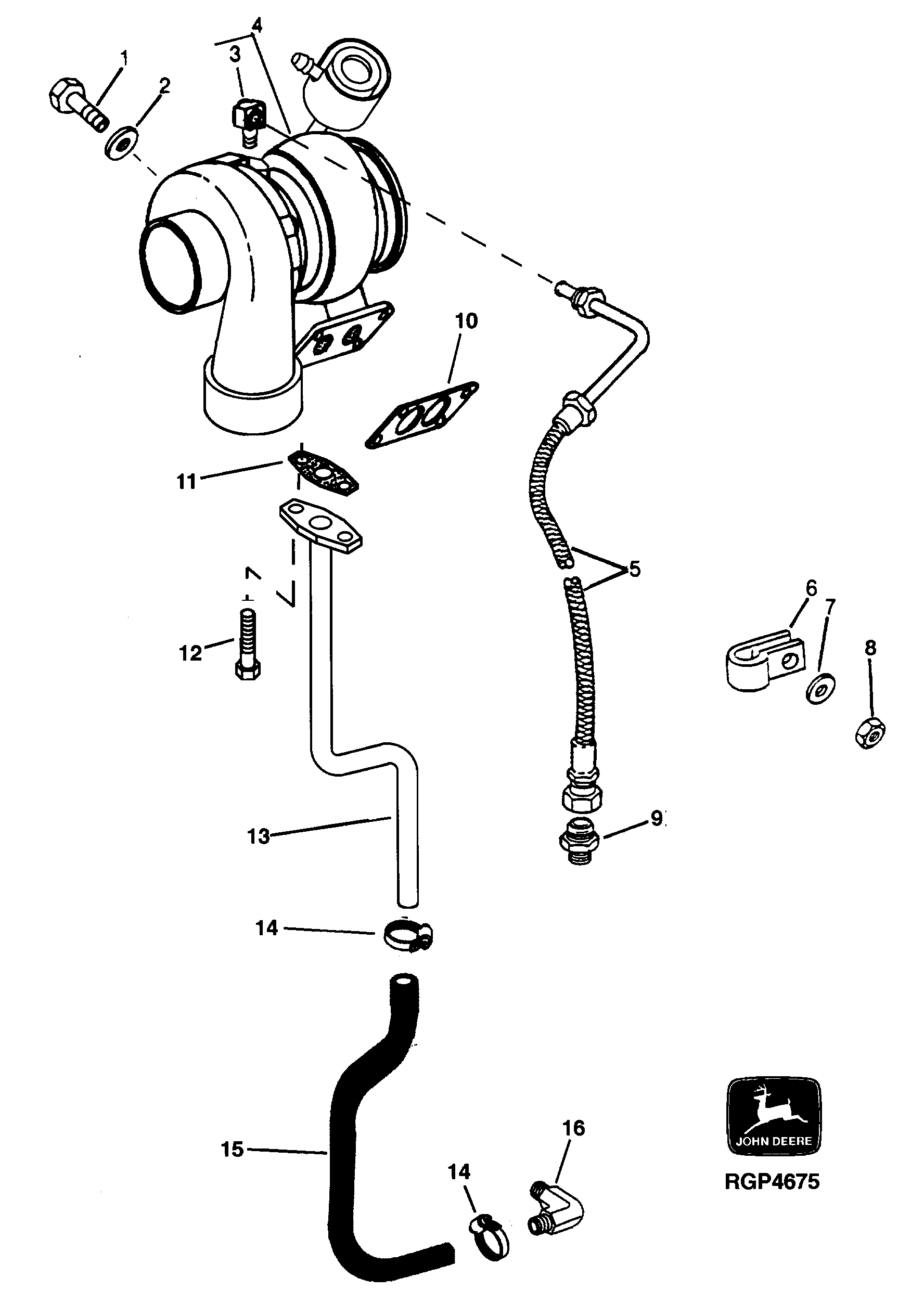

Запчасти John Deere 30LCR 51 - Turbocharger and Oil Lines 0400 Engine 6081HT001-RG26768 6081HT001

1

R54500

Screw

9.525 X 25.400 mm (3/8" X 1")

4шт.

2

24H1305

Washer

13/32" X 13/16" X 0.065"

4шт.

3

T11180

Elbow Fitting

1шт.

4

RE526893

Turbocharger Reman

1шт.

SE501659

Turbocharger Reman

SUB FOR RE501669;REMAN FOR RE526893

1шт.

R134028

Hose

1шт.

5

RE20230

Oil Line

1шт.

6

AH89486

Clip

1шт.

7

24H753

Washer

9/32" X 5/8" X 0.049"

1шт.

8

14H786

Nut

1/4"

1шт.

9

RE57561

Adapter Fitting

INCLUDES R68718

1шт.

10

R123572

Gasket

SUB FOR R89879, THIS APPLICATION

1шт.

11

R105346

Gasket

1шт.

12

R122618

Screw

2шт.

13

RE69328

Oil Line

1шт.

14

TY22467

Clamp

2шт.

15

R500723

Hose

1шт.

16

R126812

Elbow Fitting

1шт.

17

R68718

O-Ring

(A)

1шт.

R72853

Clamp

OIL COOLER HOUSING

1шт.
