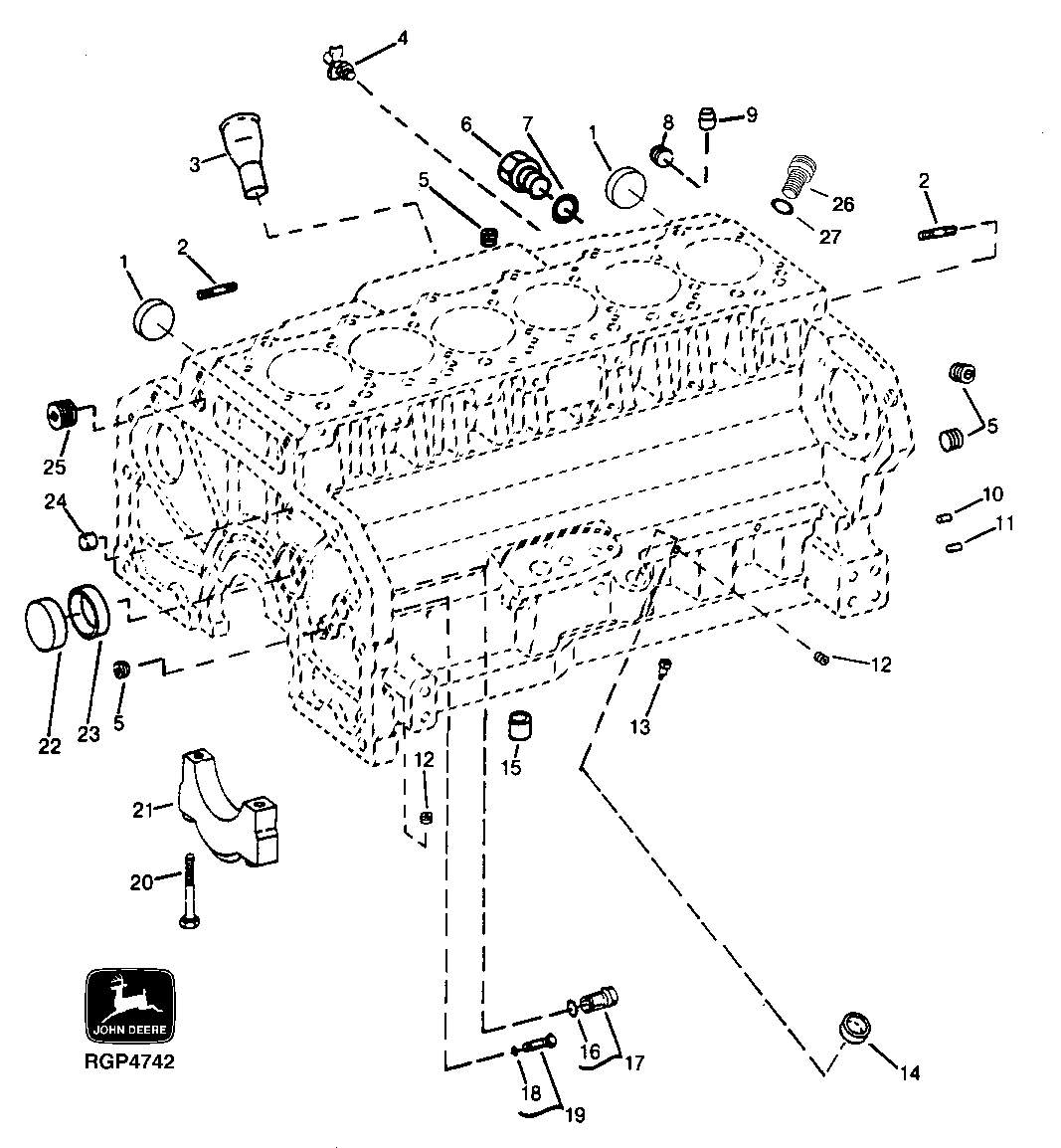

Запчасти John Deere 30LCR 31 - CYLINDER BLOCK FITTINGS 0400 Engine 6081HT001-RG26768 6081HT001

1

R43409

Plug

2шт.

2

R114130

Stud

5шт.

3

Dipstick Tube

NAшт.

4

AT13740

Drain Valve

1шт.

5

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)

2шт.

6

R39741

Drain Plug

1шт.

7

U13639

O-Ring

1шт.

8

15H690

Pipe Plug

3/4"

1шт.

R104592

Pipe Plug

(NON-AUXILIARY DRIVE OIL HOLE)

1шт.

9

R42340

Bushing

2шт.

10

R1612R

Dowel Pin

2шт.

11

F1743R

Dowel Pin

2шт.

12

RE71255

Pipe Plug

3шт.

RE57836

Pipe Plug

12.700 mm (1/2") (SUB FOR 15H624)(CYLIND ER OIL LEAD HOLE, FRONT , REAR, 4TH HOLE)

3шт.

13

R43621

Orifice

6шт.

14

T35390

Plug

(OIL FILLER HOLE)

ARшт.

15

R62930

Bushing

2шт.

16

R27149

O-Ring

1шт.

17

AR61533

Plug

1шт.

R121929

Plug

(ONE PIECE)

1шт.

18

A4365R

O-Ring

1шт.

19

DZ104494

Plug

SUB FOR AR61589

1шт.

R121929

Plug

(ONE PIECE)

1шт.

20

R122364

Bolt

14шт.

21

R120953

Bearing Cap

(MAIN)

6шт.

R120954

Bearing Cap

(THRUST)

1шт.

22

R82007

Plug

1шт.

23

R87561

Bushing

4шт.

24

R61288

Dowel Pin

1шт.

25

15H686

Pipe Plug

1" (CYLINDER BLOCK REAR COOLANT OPENING)

1шт.

26

R501255

Plug

(1.27"), (NOT AS SHOWN)(FROST PLUG) (AUX DRIVE IDLER HOLE-IN)

1шт.

R128670

Cap Screw

(USE WITH B2762R)(AUX DRIVE IDLER HOLE-OUT)

1шт.

27

B2762R

O-Ring

(USE WITH R128670) (AU X DRIVE IDLER HOLE-OUT)

1шт.

15H686

Pipe Plug

1"

1шт.

Cylinder Block

NAшт.

15H666

Pipe Plug

3/8" (ETHER AID HOLE)

1шт.
