277 - SWING DEVICE

Запчасти John Deere 30LCR 277 - SWING DEVICE 4360 Hydraulics

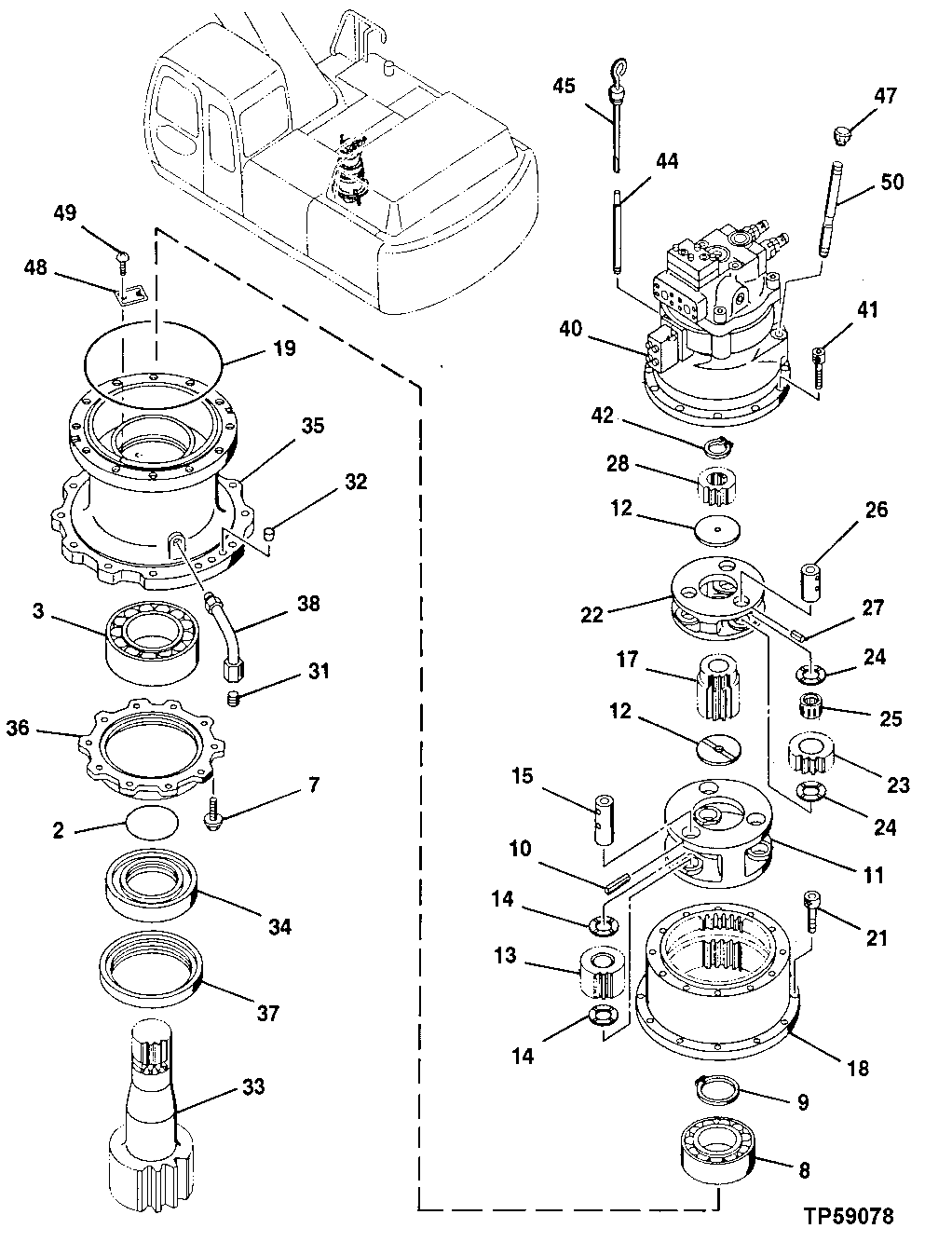

Схема запчастей John Deere 30LCR - 277 - SWING DEVICE 4360 Hydraulics
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

4217350

O-Ring

(SUB FOR AT219661)

1шт.

3

4347643

Spherical Roller Bearing

(SUB FOR AT219682)

1шт.

7

19M7493

Cap Screw

M12 X 40

10шт.

12H301

Lock Washer

1/2"

10шт.

8

TH104674

Spherical Roller Bearing

1шт.

9

991354

Snap Ring

(SUB FOR TH111641)

1шт.

10

34M5564

Spring Pin

6 X 70 mm

3шт.

11

2039262

Planet Pinion Carrier

(SUB FOR AT219593)

1шт.

12

4194454

Washer

(SUB FOR TH111267)

2шт.

13

9746634

Planet Pinion

(SUB FOR AT250269)

3шт.

14

4266934

Plate

(SUB FOR AT154772)

6шт.

15

4368729

Pin

(SUB FOR AT219699)

3шт.

17

3075692

Sun Gear

(SUB FOR AT219616)

1шт.

18

1022463

Ring Gear

(SUB FOR AT219581)

1шт.

19

4254449

O-Ring

(SUB FOR AT200993)

1шт.

21

19M7597

Cap Screw

M20 X 50

12шт.

22

1022476

Planet Pinion Carrier

(SUB FOR AT219582)

1шт.

23

3075693

Planet Pinion

(SUB FOR AT219617)

3шт.

24

4336929

Wear Plate

(SUB FOR AT218167)

6шт.

25

4443139

Needle Bearing

(SUB FOR T107728, 4183818)

3шт.

26

4368738

Pin

(SUB FOR AT219700)

3шт.

27

4144018

Spring Pin

(SUB FOR AT217743)

3шт.

28

3102698

Sun Gear

(SUB FOR AT219618 OR 3075694)

1шт.

31

94-2013

Fitting Plug

(SUB FOR TH100648)

1шт.

32

99M7010

Plug

2шт.

33

2040747

Pinion Shaft

(SUB FOR AT219598)

1шт.

34

3078670

Sleeve

(SUB FOR AT219626)

1шт.

35

1022492

Housing

(SUB FOR AT219583)

1шт.

36

3075613

Cover

(SUB FOR AT219615)

1шт.

37

4424516

Seal

(SUB FOR AT250036)

1шт.

38

8068979

Oil Line

(SUB FOR AT250204)

1шт.

40

4371768EX

Hydraulic Motor Reman

(REMANUFACTURED) (SUB FOR AT250010)

1шт.

41

19M8168

Screw

M12 X 25

12шт.

42

40M7047

Snap Ring

1шт.

44

4264452

Tube

(SUB FOR AT154293)

1шт.

45

3074223

Dipstick

(SUB FOR AT213790)

1шт.

47

4343365

Cap

(SUB FOR AT204965)

1шт.

48

Identification Plate

1шт.

49

37H99

Screw

0.100" X 1/4"

2шт.

50

Tube

( 4388529 NO LONGER AVAILABLE) (FUR NISH 4722534, 8087727, 4187328, 4 417570, 8075819)(SUB FOR AT250079)

1шт.

51

4722534

Breather

SUB FOR 4298488 Not Illustrated

1шт.

52

8104650

Pipe

(SUB FOR 8087727 OR 80 92124)(NOT ILLUSTRATED)

1шт.

53

4187328

O-Ring

(NOT ILLUSTRATED)

1шт.

54

4417570

Socket

(NOT ILLUSTRATED)

1шт.

55

8075819

Line

(NOT ILLUSTRATED)

1шт.
