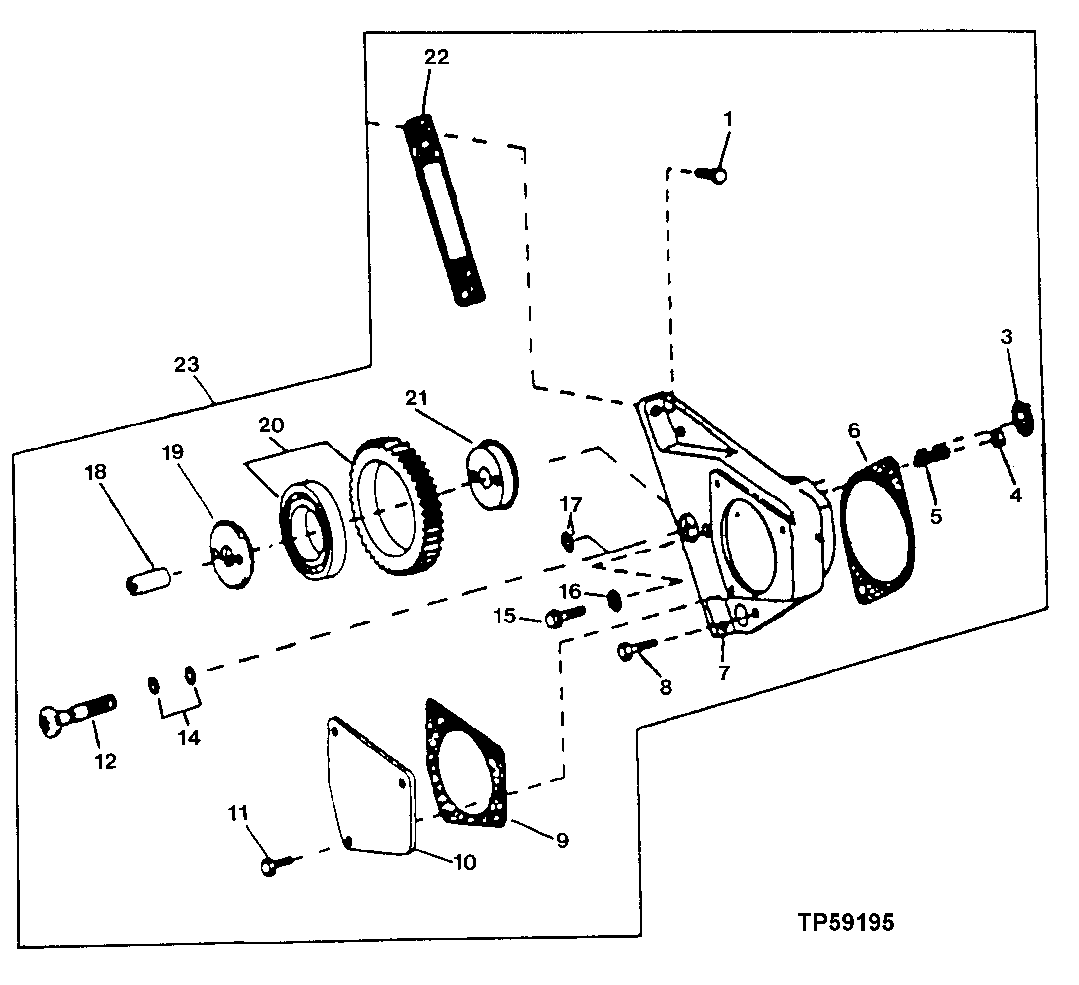

Запчасти John Deere 30LCR 276 - Auxiliary Front Drive 4151 Gears, Shafts & Bearings

1

R124963

Screw

LEFT HAND AUXILIARY DRI VE TO TIMING GEAR COVER

2шт.

R124963

Screw

AUXILIARY DRIVE HOUSING TO CYLINDER BLOCK

1шт.

3

AT159816

Seal Kit

SUB FOR T106291

1шт.

4

14H1069

Nut

1/2"

2шт.

5

R49988

Stud

2шт.

6

R96934

Gasket

1шт.

7

R122716

Housing

1шт.

8

19H3385

Cap Screw

1/2" X 1-1/8"

1шт.

9

E66413

O-Ring

1шт.

10

R500077

Cover

1шт.

11

19H1731

Cap Screw

3/8" X 1"

3шт.

12

R133900

Bolt

1шт.

14

R394R

O-Ring

12.370 X 2.616 mm (0.487" X 0.103")

2шт.

15

R112268

Screw

7.925 X 22.200 mm (5/16" X 0.874")

1шт.

16

R116022

Seal

1шт.

17

T106370

O-Ring

25.121 X 1.778 mm (0.989" X 0.070")

1шт.

18

R116408

Shaft

1шт.

19

R116401

Support

1шт.

20

RE65939

Spur Gear

1шт.

21

R112208

Support

1шт.

22

R501023

Gasket

1шт.

23

RE62802

Drive Kit

1шт.
