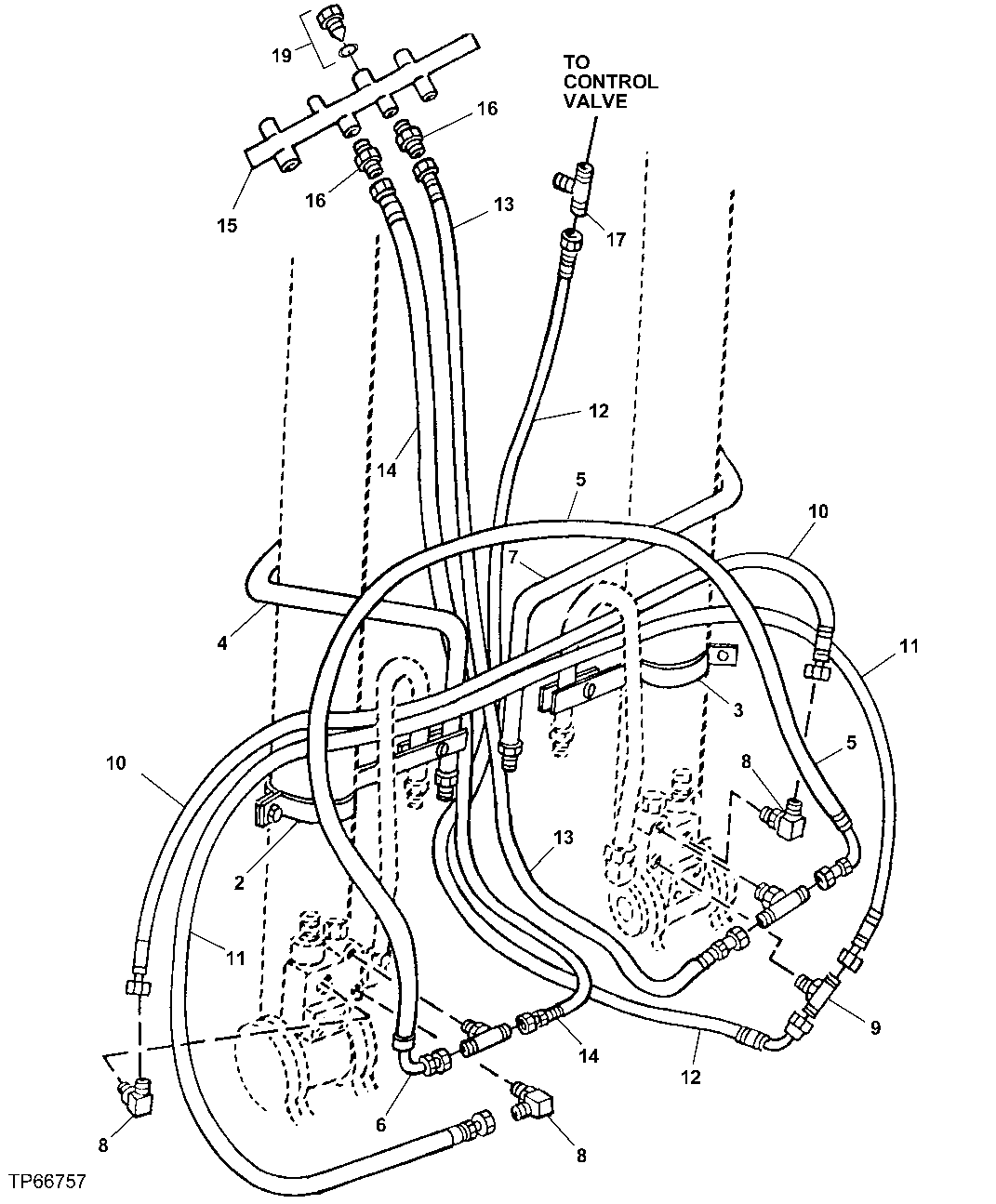

Запчасти John Deere 30LCR 274 - BOOM CYLINDER LOAD LOWERING VALVE KIT 3360 Hydraulic System

1

Kit

AT184298 NO LONGER AVAILABLE (BOOM CYLI NDER LOAD LOWERING VALVE) (CONTAINS ALL I TEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

2

8071036

Clamp

SUB FOR AT184314

1шт.

3

8071035

Clamp

SUB FOR AT184317

1шт.

4

8071060

Oil Line

SUB FOR AT184319

1шт.

5

Hose Guard

MAKE FROM XHG-075, BULK MATERIAL CUT T O LENGTH SUB FOR AT213832, 4327294 NLA

3шт.

6

AT174563

Hydraulic Hose

1-1/16" X 1200 mm (47-1/4") X 1-1/ 16" SERVICE ALONG WITH (2) TH100996

1шт.

7

8071059

Oil Line

SUB FOR AT184316

1шт.

8

4154670

Elbow Fitting

SUB FOR TH100951

3шт.

M800650

Packing

1шт.

9

4205363

Tee Fitting

SUB FOR AT126362

1шт.

CH11570

O-Ring

1шт.

10

AT184322

Hydraulic Hose

11.1252" X 1500 mm (59") X 11.1252"

1шт.

4327315

Hose Guard

4327293 NO LONGER AVA ILABLE SUB FOR AT213831

3шт.

11

AT184323

Hydraulic Hose

11.1252" X 1550 mm (61") X 11.1252"

1шт.

4327315

Hose Guard

4327293 NO LONGER AVA ILABLE SUB FOR AT213831

3шт.

12

AT184321

Hydraulic Hose

9/16" X 2900 mm (114-1/4") X 9/16"

1шт.

4327315

Hose Guard

4327293 NO LONGER AVA ILABLE SUB FOR AT213831

7шт.

13

AT184320

Hydraulic Hose

1-1/16" X 2950 mm (116-1/4") X 1-1/16"

1шт.

Hose Guard

MAKE FROM XHG-075, BULK MATERIAL CUT TO LENGTH SUB FOR AT213832, 4327294 NL

9шт.

14

AT184320

Hydraulic Hose

1-1/16" X 2950 mm (116-1/4") X 1-1/16"

1шт.

Hose Guard

MAKE FROM XHG-075, BULK MATERIAL CUT T O LENGTH SUB FOR AT213832, 4327294 NLA

9шт.

15

8074717

Line

SUB FOR AT184311

1шт.

16

4288001

Adapter Fitting

SUB FOR AT184312

2шт.

17

4226388

Tee Fitting

SUB FOR AT205878

1шт.

M800650

Packing

1шт.

18

H77698

Tie Band

NOT ILLUSTRATED

23шт.

19

4174541

Fitting

SUB FOR TH110477

1шт.

4506418

O-Ring

SUB FOR U46489

1шт.

20

CH11570

O-Ring

SUB FOR 4216753, NOT ILLUSTRATED

1шт.
