Запчасти John Deere 30LCR 269 - AUXILIARY HYDRAULIC PLUMBING 3360 Hydraulic System

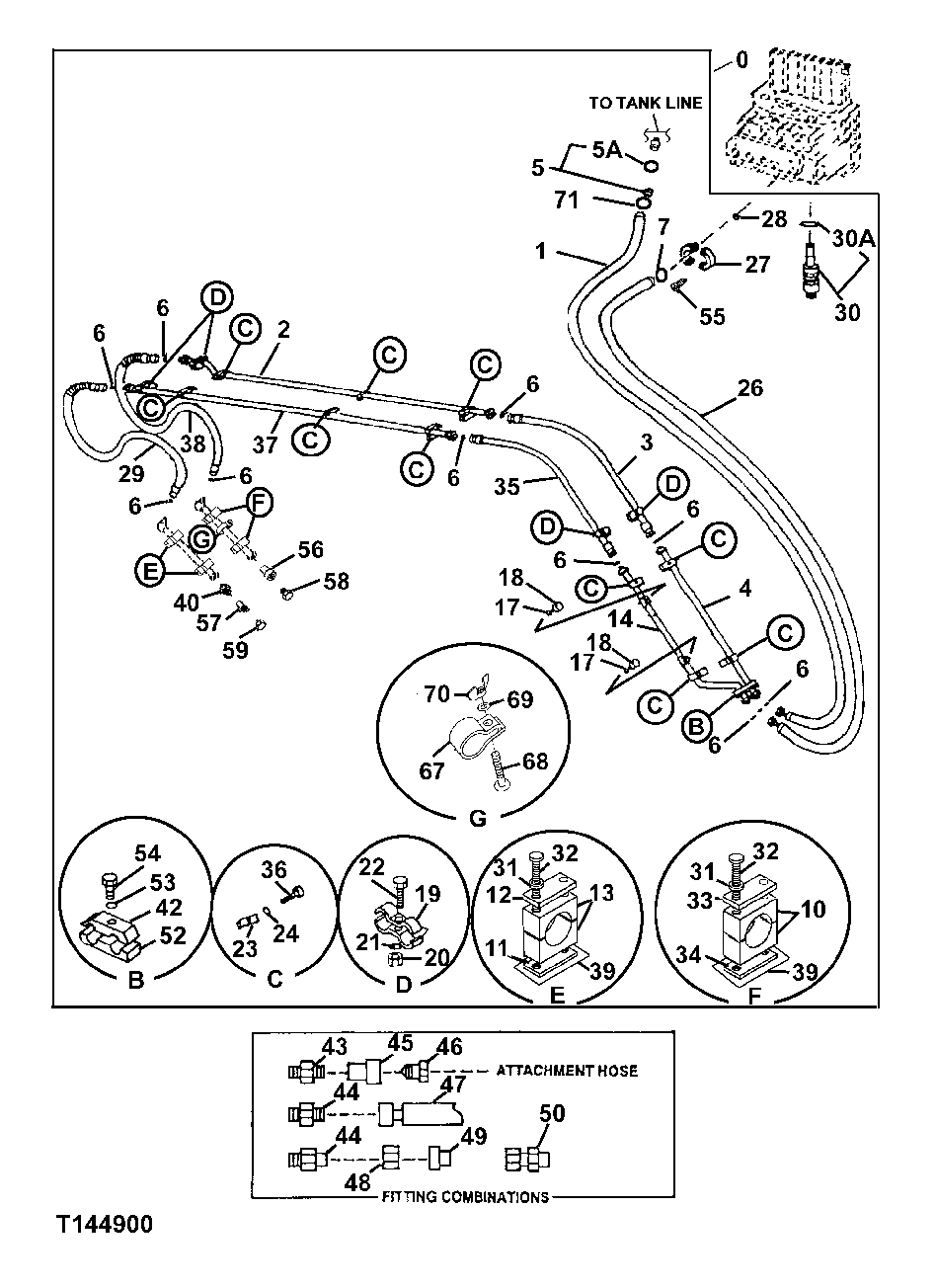

Схема запчастей John Deere 30LCR - 269 - AUXILIARY HYDRAULIC PLUMBING 3360 Hydraulic System

Артикул

Название

Примечание

Количество

0

Kit

(AT186560 NO LONGER AV AILABLE) (SUB AT196996)

1шт.

1

AT186574

Hydraulic Hose

1шт.

2

AT186558

Oil Line

(RIGHT SIDE OF BOOM)

1шт.

3

AT186557

Hydraulic Hose

1шт.

4

AT186556

Oil Line

(RIGHT SIDE OF BOOM)

1шт.

5

4207425

Adapter Fitting

(SUB FOR TH111740)

1шт.

5A

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

6

T76938

O-Ring

23.520 X 1.780 mm (0.926" X 0.070")

6шт.

7

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

10

AT190587

Clamp

2шт.

11

T166675

Plate

2шт.

12

T166674

Plate

2шт.

13

AT190586

Clamp

2шт.

14

AT163476

Line

(LEFT SIDE OF BOOM)

1шт.

17

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

18

38H1418

Fitting

2шт.

19

4202103

Clamp

(SUB FOR TH108302)

8шт.

20

14M7275

Nut

M12

4шт.

21

12H301

Lock Washer

1/2"

4шт.

22

19M7361

Cap Screw

M12 X 50

4шт.

23

4189860

Clamp

(SUB FOR TH108314)

10шт.

24

12H301

Lock Washer

1/2"

10шт.

25

19M7753

Cap Screw

M12 X 70

6шт.

26

AT217763

Hydraulic Hose

1шт.

27

H61354

Flange Fitting

2шт.

28

T78313

O-Ring

32.920 X 3.530 mm (1.296" X 0.139")

1шт.

29

AT186575

Hose

1шт.

30

4419373

Pressure Relief Valve

(SUB FOR AT184267 ) (SUB FOR AT185397)(AUXILIARY)

1шт.

30A

U12547

O-Ring

23.470 X 2.946 mm (0.924" X 0.116")

1шт.

31

24H1219

Washer

7/16" X 1" X 0.083"

8шт.

32

19H3197

Cap Screw

7/16" X 4"

4шт.

33

T167277

Plate

2шт.

34

T167276

Plate

2шт.

35

AT163473

Hydraulic Hose

36.5252" X 1612 mm (63-1/2") X 36.5252"

1шт.

36

19M7753

Cap Screw

M12 X 70

10шт.

37

AT163479

Line

(LEFT SIDE OF BOOM)

1шт.

38

AT187891

Hydraulic Hose

36.5252" X 1828 mm (72") X 36.5252"

1шт.

39

T184549

Spacer

2шт.

40

38H1180

Adapter Fitting

1шт.

42

4189860

Clamp

(SUB FOR TH108314)

1шт.

43

38H1196

Adapter Fitting

(-20) 1 11/16 ORFS X ( -16) 1 5/16 SAE O-RING

2шт.

4207425

Adapter Fitting

(SUB FOR TH111740)(-20) 1 1 1/16 ORFS X (-16) 1 IN BSPP

2шт.

38H1165

Adapter Fitting

(-20) 1 11/16 ORFS X (-20) 1 5/8 SAE O-RING

2шт.

4267610

Adapter Fitting

(SUB FOR AT137960)(-20) 1 11/ 16 ORFS X (-20) 1 1/4 IN BSPP

2шт.

44

38H1282

Union Fitting

(-20) 1 11/16 ORFS X (-20) 1 11/16 ORFS

2шт.

45

AT117364

Hydr. Quick Coupler Socket

FEMALE QUICK COUPLER ( -12) 1 1/16 SAE O-RING

2шт.

AT120499

Coupling

FEMALE QUICK COUPLER ( -16) 1 5/16 SAE O-RING

2шт.

46

AT117365

Hydr. Quick Coupler Plug

MALE QUICK COUPLER (-12) 1 1/16 SAE O-RING

2шт.

AT120498

Coupling

MALE QUICK COUPLER (-16) 1 5/16 SAE O-RING

2шт.

47

X1JS78-20-16

Hose Fitting

HOSE END - STRAIGHT - 1 1/4 X 1 IN

2шт.

X1J978-20-16

Elbow Fitting

HOSE END - 90 DEG 1 1/4 X 1 IN

2шт.

48

X20BL-S

Tube Nut

ORFS (-20) 1 11/16

2шт.

49

38H1477

Reducer

ORFS (-20) TO (-12)

2шт.

50

38H1070

Fitting

(1 3/16 ORFS X 1 1/16 SAE O-RING)

2шт.

Выбрано товаров: 54
