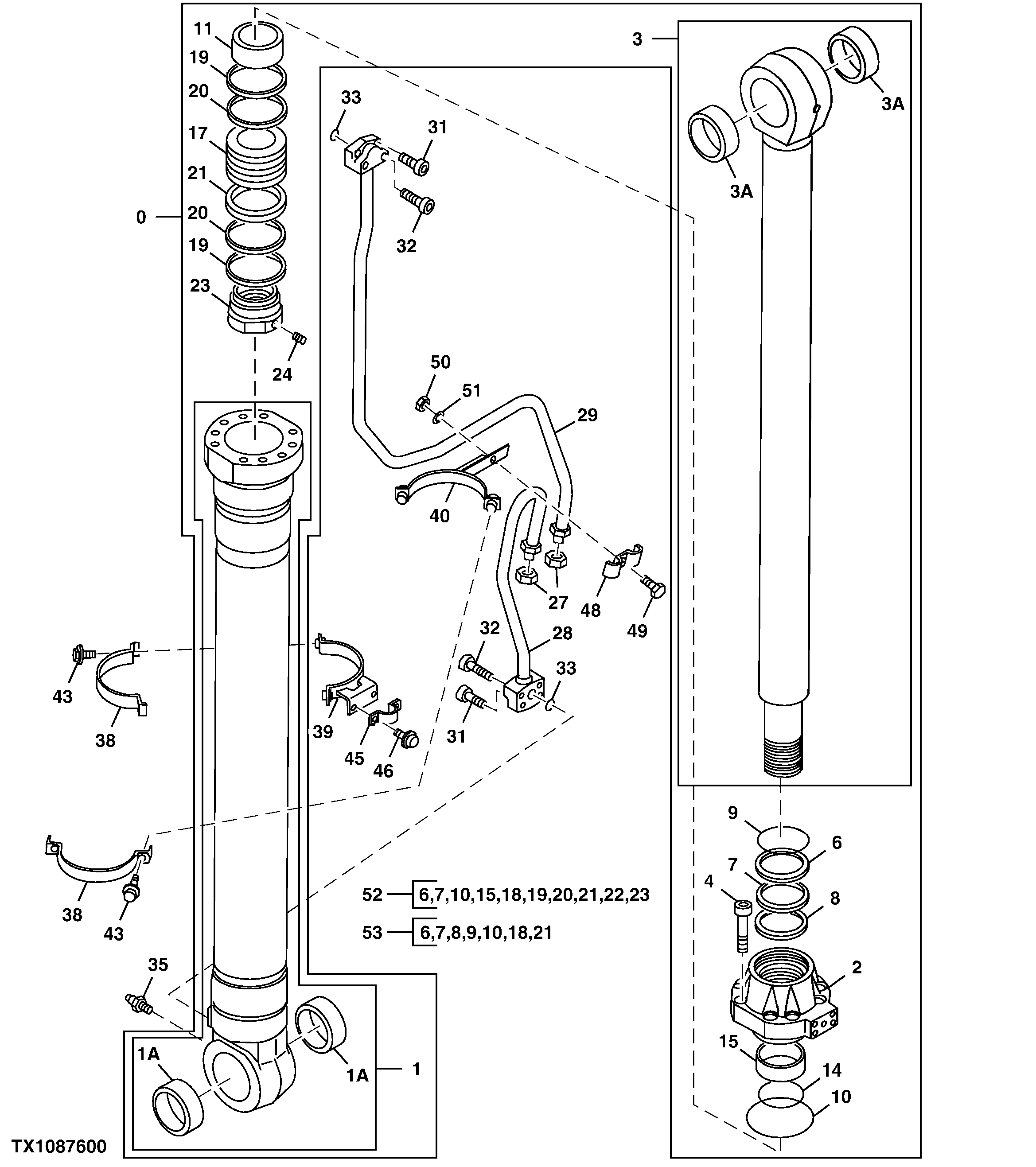

Запчасти John Deere 30LCR 260 - Left Boom Cylinder 3360 Hydraulic System

0

AT264204

Hydraulic Cylinder Reman

SUB FOR AT250455 AND 9173704 Boom Reman

1шт.

9292424

Hydraulic Cylinder

0961201JEX NLA, SUB FOR (1) 9195061EX AND (1) 9206359Y Painted Part - Yellow Must Repl ace Right and Left Cylinders As A Pair Reman

1шт.

1

Hydraulic Cylinder Barrel

9173707 NLA, SUB AT25 0174, SUB FOR AT250264

1шт.

9206362

Hydraulic Cylinder Barrel

ALSO ORDER (2) 3080216, 8069891 AND 8079343

1шт.

1A

4381855

Bushing

SUB FOR AT250026

2шт.

2

Hydraulic Cylinder Rod

1024358 AND AT219588 NLA

1шт.

1026691

Cylinder Head

1шт.

3

7032905

Rod

SUB FOR AT250175

1шт.

7037753

Rod

1шт.

3A

4381855

Bushing

SUB FOR AT250026

2шт.

4

19M8630

Screw

M24 X 80

9шт.

6

AT264298

Seal

SUB FOR AT219685 AND 4351498

1шт.

7

AT264414

Seal

ALSO ORDER AT280445, SUB FOR TH111839, 4171487 OR 4411655

1шт.

8

AT333702

Seal

SUB FOR AT264306 OR 4411660

1шт.

9

4383089

Snap Ring

SUB FOR AT250038

1шт.

10

AT264307

O-Ring

SUB FOR AT250040 AND 4383091

1шт.

11

4383094

Bushing

SUB FOR AT250042

1шт.

2041628

Ring

1шт.

14

4268206

Snap Ring

SUB FOR AT130834

1шт.

15

AT264308

Bushing

SUB FOR AT250041 AND 4383093

1шт.

17

3080834

Piston

SUB FOR AT219644

1шт.

18

AT280445

Back-Up Ring

1шт.

19

AT264415

Ring

SUB FOR TH111845 AND 4171490

2шт.

20

AT264416

Wear Ring

SUB FOR TH111846 AND 4194622

2шт.

21

AT264417

Ring

SUB FOR TH111847 AND 4386916

1шт.

23

3039349

Nut

SUB FOR TH111848

1шт.

24

4201806

Set Screw

SUB FOR TH110066

1шт.

27

4260204

Nut

SUB FOR AT219663

2шт.

28

8069110

Oil Line

SUB FOR AT250207

1шт.

29

8069111

Oil Line

SUB FOR AT250208

1шт.

31

19M8341

Screw

M12 X 45

4шт.

32

19M8444

Screw

M12 X 60

4шт.

33

AT264324

O-Ring

SUB FOR TH100044

2шт.

35

TH100074

Lubrication Fitting

1шт.

38

3080692

Clamp

SUB FOR AT219643

2шт.

3080216

Clamp

2шт.

39

8070392

Clamp

SUB FOR AT250226

1шт.

8069891

Clamp

1шт.

40

8068466

Clamp

SUB FOR AT250201

1шт.

8079343

Clamp

1шт.

43

19M7550

Cap Screw

M10 X 35

4шт.

12M7066

Lock Washer

10 mm

4шт.

45

4174241

Clamp

SUB FOR TH110059

1шт.

46

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

48

4229234

Clamp

SUB FOR TH111990

1шт.

49

19M8348

Cap Screw

M12 X 65

1шт.

50

14M7275

Nut

M12

1шт.

51

12H301

Lock Washer

1/2"

1шт.

52

Seal Kit

AT264440 NLA, SUB 9180581, ALSO ORDER A T264308, AT264416, AT264415 AND AT264324

1шт.

53

9180581

Seal Kit

1шт.
