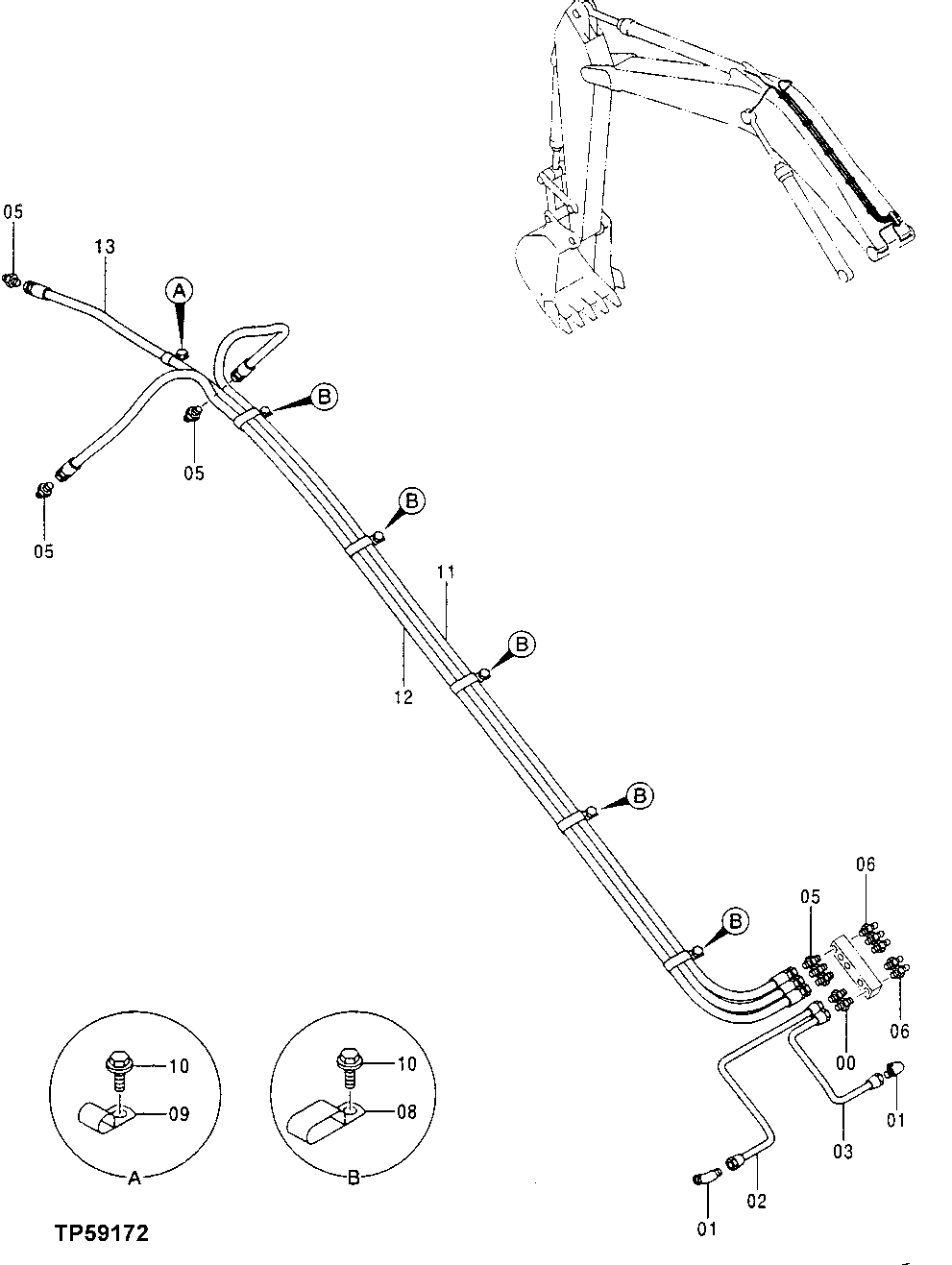

Запчасти John Deere 30LCR 256 - LUBRICATE PIPINGS 3360 Hydraulic System

0

4360981

Adapter Fitting

(SUB FOR AT176256)

2шт.

1

4345297

Elbow Fitting

(SUB FOR AT176258)

2шт.

2

4387001

Oil Line

(SUB FOR AT250070)

1шт.

3

4387002

Oil Line

(SUB FOR AT250071)

1шт.

5

X4-4FTX-S

Adapter Fitting

(SUB FOR TH100963)

6шт.

6

JD7769

Lubrication Fitting

5шт.

8

T152608

Clamp

5шт.

9

4190261

Clip

(SUB FOR TH109649)

1шт.

10

19M8324

Cap Screw

M10 X 16

6шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

6шт.

11

AT154755

Hydraulic Hose

11.1252" X 3530 mm (139") X 11.1252"

1шт.

12

4257291

Hydraulic Hose

(SUB FOR AT219662)

1шт.

13

4316009

Hose

(SUB FOR AT167078)

1шт.
