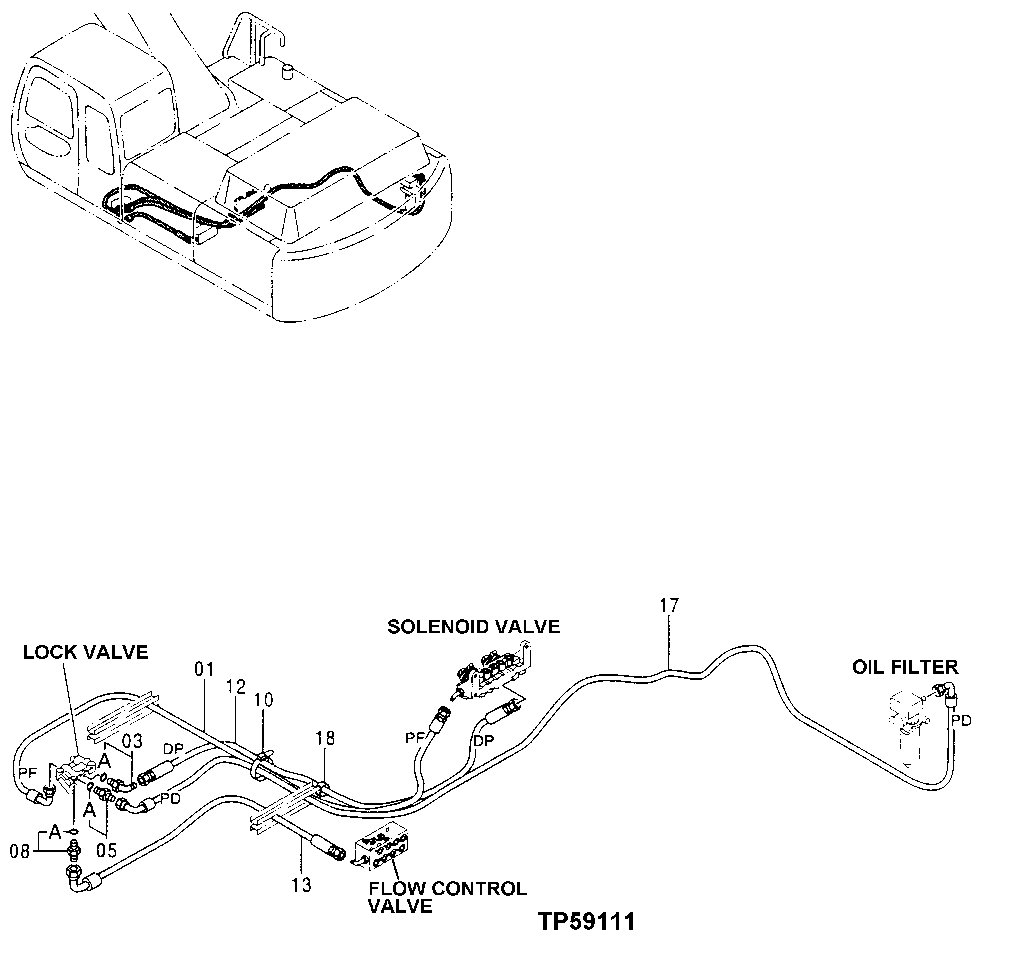

Запчасти John Deere 30LCR 254 - PILOT PIPINGS 3360 Hydraulic System

1

4342976

Hydraulic Hose

(SUB FOR AT219678)

1шт.

3

4219345

Elbow Fitting

(SUB FOR AT130819)

1шт.

3A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

5

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

4346499

Filter

(SUB FOR AT213911)

1шт.

8A

M800650

Packing

1шт.

10

H77698

Tie Band

1шт.

12

AT250146

Hydraulic Hose

1шт.

13

4333396

Hydraulic Hose

(SUB FOR AT219676)

1шт.

17

4404387

Hydraulic Hose

(SUB FOR AT250139)

1шт.

4408884

Hydraulic Hose

(SUB FOR AT250441)

1шт.

18

T28949

Clamp

(SUB FOR TH108460 OR 4190273)

1шт.
