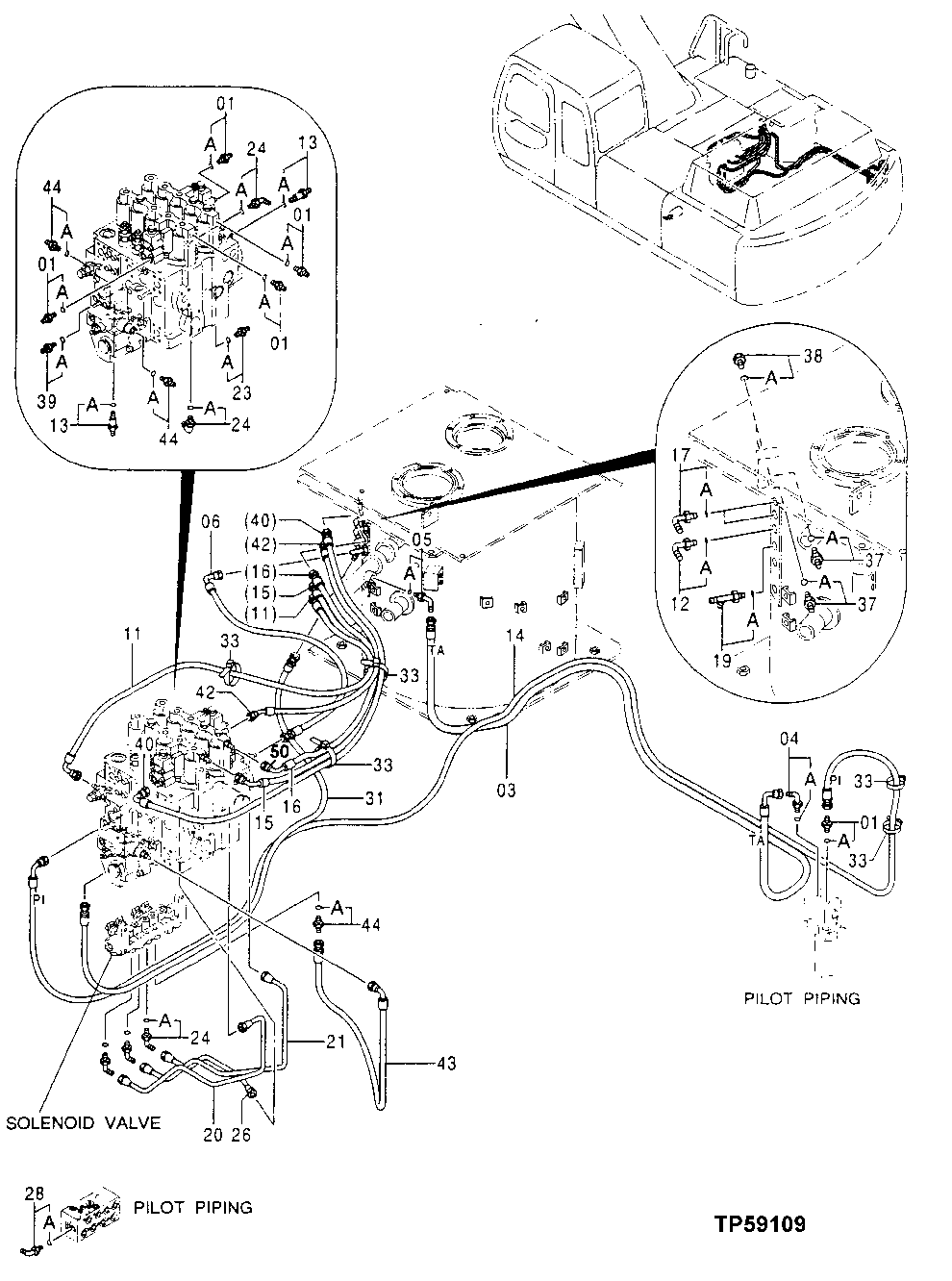

Запчасти John Deere 30LCR 253 - PILOT PIPINGS 3360 Hydraulic System

1

4200465

Adapter Fitting

SUB FOR TH108328

5шт.

1A

M800650

Packing

1шт.

3

4386674

Hydraulic Hose

SUB FOR AT250065

1шт.

4

4154672

Elbow Fitting

SUB FOR TH101008

1шт.

4A

4506418

O-Ring

17.800 X 2.400 mm (0.701 " X 3/32") SUB FOR U46489

1шт.

5

4219345

Elbow Fitting

SUB FOR AT130819

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

6

4391111

Hydraulic Hose

SUB FOR AT250091

1шт.

11

4333396

Hydraulic Hose

SUB FOR AT219676

1шт.

12

A852333

Elbow Fitting

SUB FOR TH101047; SUB FOR AT336091

1шт.

12A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

13

4390157

Adapter Fitting

SUB FOR AT250087

2шт.

13A

M800650

Packing

1шт.

14

4391119

Hydraulic Hose

SUB FOR AT250092

1шт.

15

4386675

Hydraulic Hose

SUB FOR AT250066

1шт.

16

AT126850

Hydraulic Hose

11.1252" X 770 mm (30-1/4") X 11.1252"

1шт.

17

4154670

Elbow Fitting

SUB FOR TH100951

2шт.

17A

M800650

Packing

1шт.

19

4205363

Tee Fitting

SUB FOR AT126362

1шт.

19A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

20

4386525

Oil Line

SUB FOR AT250059

1шт.

21

3079456

Oil Line

SUB FOR AT219635

1шт.

23

4255304

Fitting

SUB FOR AT155270

1шт.

23A

M800650

Packing

1шт.

24

4293950

Fitting

SUB FOR AT160584

5шт.

24A

M800650

Packing

1шт.

26

4386526

Oil Line

SUB FOR AT250060

1шт.

28

AT318014

Elbow Fitting

SUB FOR 4156434; SUB FOR TH101930

1шт.

28A

M800650

Packing

1шт.

31

4319152

Hydraulic Hose

SUB FOR AT219674

1шт.

33

H77698

Tie Band

5шт.

37

AT318019

Adapter Fitting

SUB FOR 4255792, AT213811

2шт.

37A

M800650

Packing

1шт.

38

4093624

Drain Plug

SUB FOR AT318013; SUB FOR TH102536

2шт.

38A

M800650

Packing

1шт.

39

4261937

Filter

SUB FOR AP35920

1шт.

39A

M800650

Packing

1шт.

40

4355424

Hydraulic Hose

SUB FOR AT219690

1шт.

42

4405433

Hydraulic Hose

SUB FOR AT250145

1шт.

43

AT215941

Hydraulic Hose

9/16" X 950 mm (37-1/2") X 9/16"

1шт.

44

4200467

Adapter Fitting

SUB FOR TH108417

3шт.

44A

M800650

Packing

1шт.

50

AH89069

Elbow Fitting

1шт.
