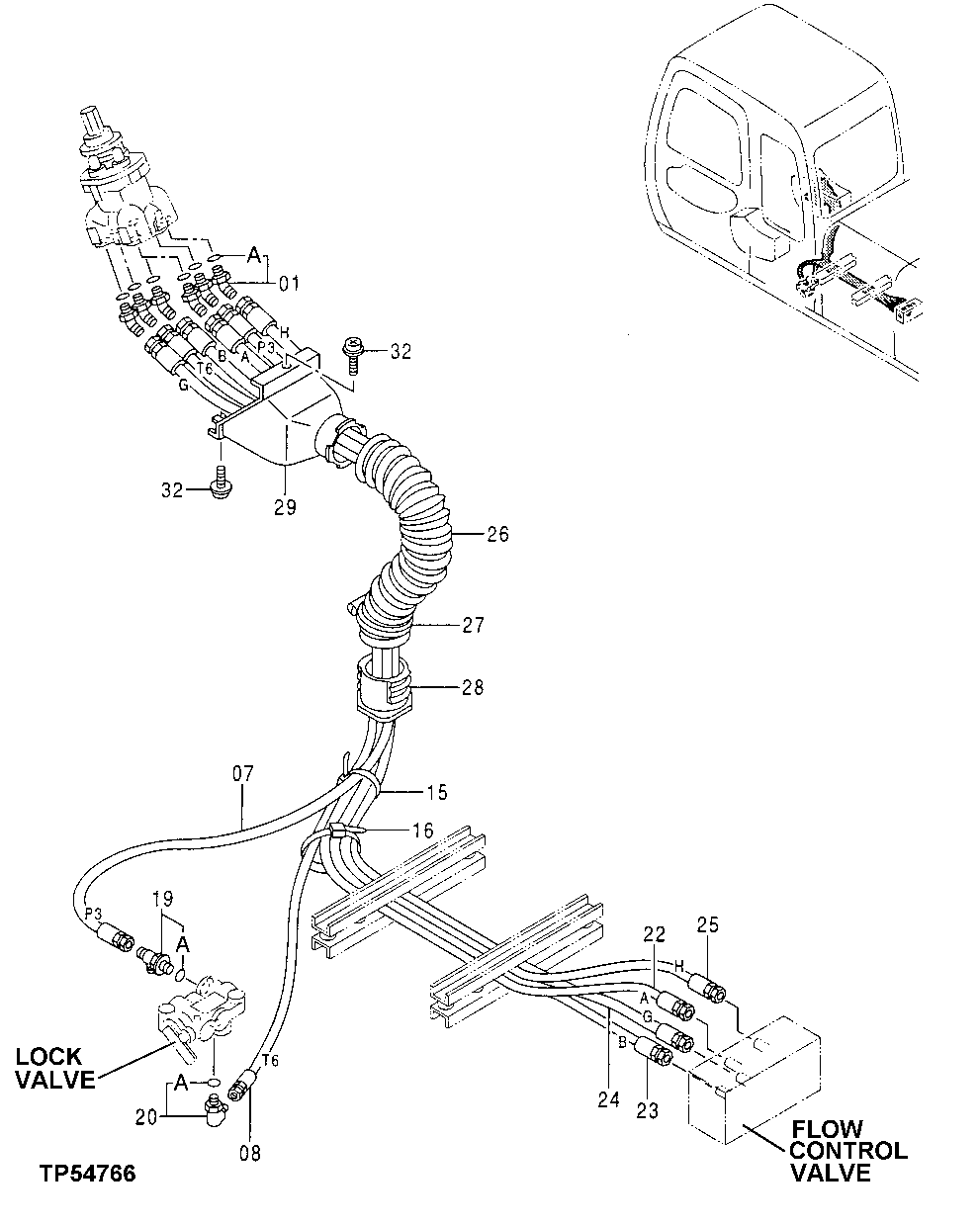

Запчасти John Deere 30LCR 252 - PILOT PIPINGS 3360 Hydraulic System

1

A852223

Elbow Fitting

(SUB FOR AT154994 OR 4286916)

6шт.

1A

M800650

Packing

1шт.

7

AT215542

Hydraulic Hose

1шт.

8

AT217773

Hydraulic Hose

(SUB FOR AT215543)

1шт.

15

H77698

Tie Band

1шт.

16

H77698

Tie Band

1шт.

19

4261938

Fitting

(SUB FOR AT154285)

1шт.

19A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

20

A852333

Elbow Fitting

(SUB FOR TH101047 ) (SUB FOR AT336091)

1шт.

20A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

22

AE42000

Hydraulic Hose

9/16" X 2000 mm (78-3/4") X 9/16"

1шт.

23

AT219688

Hydraulic Hose

1шт.

24

AT216542

Hydraulic Hose

9/16" X 1900 mm (74-3/4") X 9/16"

1шт.

25

AT216543

Hydraulic Hose

9/16" X 1900 mm (74-3/4") X 9/16"

1шт.

26

4351175

Hose

(SUB FOR AT213957)

1шт.

27

4351774

Clamp

(SUB FOR AT213962)

1шт.

28

3079728

Bushing

(SUB FOR AT213780)

1шт.

29

3072745

Cover

(SUB FOR AT213784)

1шт.

32

Screw With Washer

( J460620 NO LONGER AVAI LABLE) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.
