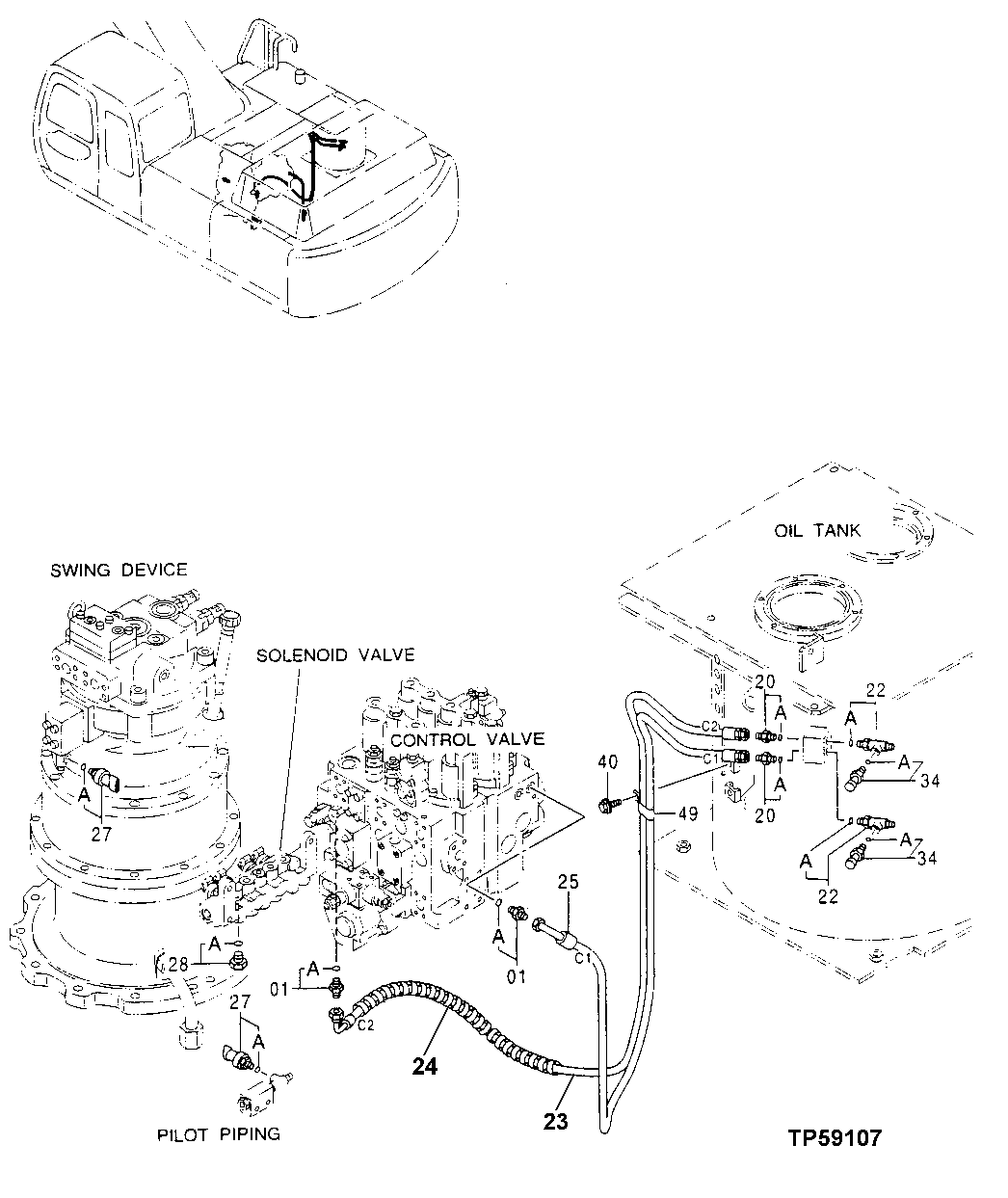

Запчасти John Deere 30LCR 248 - PILOT PIPINGS 3360 Hydraulic System

1

4200465

Adapter Fitting

SUB FOR TH108328

2шт.

1A

M800650

Packing

1шт.

20

AT318019

Adapter Fitting

SUB FOR 4255792, AT213811

2шт.

20A

M800650

Packing

1шт.

22

AT318023

Tee Fitting

SUB FOR 4364784, AT214020

2шт.

22A

M800650

Packing

1шт.

23

4390998

Hydraulic Hose

SUB FOR AT250089

1шт.

24

4327315

Hose Guard

4327293 NLA SUB FOR AT213831

1шт.

25

4404388

Hydraulic Hose

SUB FOR AT250140

1шт.

27

4353686

Switch

SUB FOR AT213971

2шт.

27A

M800650

Packing

1шт.

28

4093624

Drain Plug

SUB FOR AT318013; SUB FOR TH102536

1шт.

28A

M800650

Packing

1шт.

34

4332040

Sensor

SUB FOR AT213840

2шт.

34A

M800650

Packing

1шт.

40

19M7938

Cap Screw

M10 X 20

1шт.

12M7066

Lock Washer

10 mm

1шт.

49

M45242

Clip

SUB FOR TH108321; SUB FOR 4190292

1шт.
