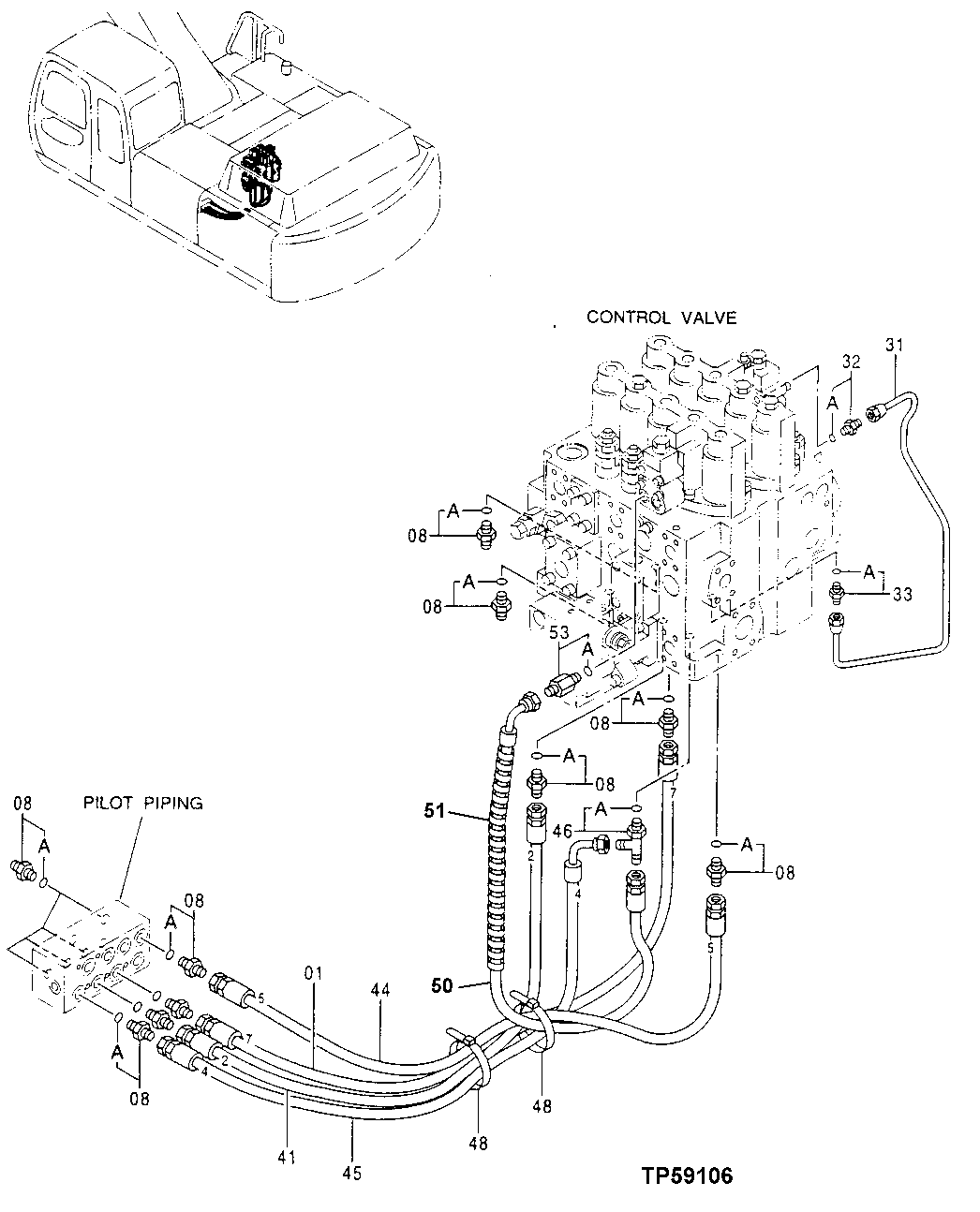

Запчасти John Deere 30LCR 247 - PILOT PIPINGS 3360 Hydraulic System

1

4386667

Hydraulic Hose

SUB FOR AT250063

1шт.

8

4200466

Adapter Fitting

SUB FOR TH108320

13шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

31

3079449

Oil Line

SUB FOR AT219633

1шт.

32

4255304

Fitting

SUB FOR AT155270

1шт.

32A

M800650

Packing

1шт.

33

4255305

Fitting

SUB FOR AT213809

1шт.

33A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

41

4398898

Hydraulic Hose

SUB FOR AT250124

1шт.

44

4396639

Hydraulic Hose

SUB FOR AT250107

1шт.

45

4260476

Hydraulic Hose

SUB FOR AT219665

1шт.

46

4205363

Tee Fitting

SUB FOR AT126362

1шт.

46A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

48

H77698

Tie Band

2шт.

50

4365595

Hydraulic Hose

SUB FOR AT214023

1шт.

51

4327315

Hose Guard

4327293 NO LONGER AVA ILABLE SUB FOR AT213831

1шт.

53

4200467

Adapter Fitting

SUB FOR TH108417

1шт.

53A

M800650

Packing

1шт.
