Запчасти John Deere 30LCR 236 - CONTROL VALVE 3360 Hydraulic System

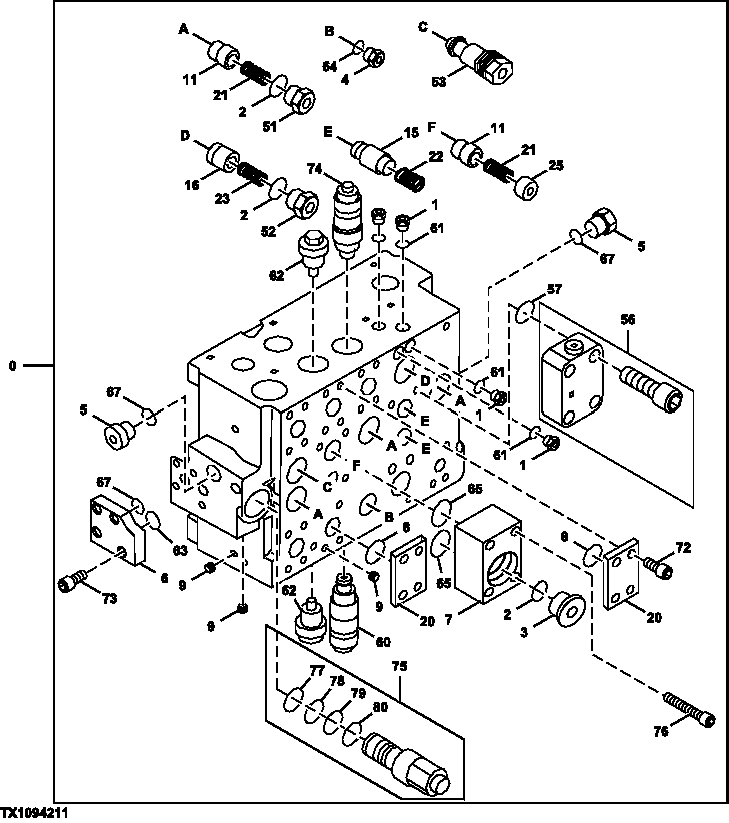

Схема запчастей John Deere 30LCR - 236 - CONTROL VALVE 3360 Hydraulic System

Артикул

Название

Примечание

Количество

0

4363127

Hyd Actuated Control Valve

(SUB FOR AT250457 AND 4363127EX) Con tains All Components On This Page Add itional Components On Separate Pages

1шт.

1

0719004

Fitting Plug

(SUB FOR AT219523)

4шт.

2

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

5шт.

3

0697911

Fitting Plug

(SUB FOR AT219506)

1шт.

4

AT219507

Fitting Plug

1шт.

5

0719101

Fitting Plug

(SUB FOR AT219532)

2шт.

6

0719102

End Plate

(SUB FOR AT219533)

1шт.

7

0719103

Cover

(SUB FOR AT219534)

1шт.

8

A811030

O-Ring

29.400 X 3.100 mm (1.157" X 0.122") (SUB FOR TH101300)

2шт.

9

0451028

Fitting Plug

(SUB FOR AT201622)

3шт.

11

0719107

Poppet

(SUB FOR AT219538)

4шт.

15

0719108

Poppet

(SUB FOR AT219539)

2шт.

16

0719109

Poppet

(SUB FOR AT219540)

1шт.

20

0719104

Cover

(SUB FOR AT219535)

2шт.

21

0719110

Spring

(SUB FOR AT219541)

4шт.

22

0719111

Spring

(SUB FOR AT219542)

2шт.

23

0719112

Spring

(SUB FOR AT219543)

1шт.

25

0719113

Spacer

(SUB FOR AT219544)

1шт.

51

0719114

Fitting Plug

(SUB FOR AT219545)

3шт.

52

0719115

Fitting Plug

(SUB FOR AT219546)

1шт.

53

0719105

Pressure Relief Valve

(SUB FOR AT219536)

1шт.

56

0719106

Cover

(SUB FOR AT219537)

1шт.

57

A811030

O-Ring

29.400 X 3.100 mm (1.157" X 0.122") SUB FOR 0251813

1шт.

60

0719116

Pressure Relief Valve

(SUB FOR AT219547)

3шт.

61

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

4шт.

62

0719119

Plug

2шт.

0719116

Pressure Relief Valve

2шт.

63

985099

O-Ring

20.800 X 2.400 mm (0.819" X 3/32") (SUB FOR TH101479)

1шт.

64

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

65

4366544

O-Ring

(SUB FOR AT219503)

2шт.

67

4506418

O-Ring

17.800 X 2.400 mm (0.701" X 3/32") (SUB FOR U46489)

3шт.

72

4515013

Screw

(SUB FOR AT250151)

8шт.

73

19M8439

Screw

M8 X 25 (SUB FOR 19M7657)

4шт.

74

0719117

Pressure Relief Valve

(SUB FOR AT219548)

1шт.

75

4723238

Flow Control Hyd. Valve

(SUB FOR 0816502)

1шт.

76

0237903

Screw

(SUB FOR AT219501)

4шт.

77

AT264348

O-Ring

(SUB FOR TH102788 ) (SUB FOR AT193431)

1шт.

78

4451354

O-Ring

(SUB FOR AT193432)

1шт.

79

CH12329

Packing

1шт.

80

4451353

O-Ring

(SUB FOR AT193433)

1шт.

Выбрано товаров: 40
