Запчасти John Deere 30LCR 235 - CONTROL VALVE 3360 Hydraulic System

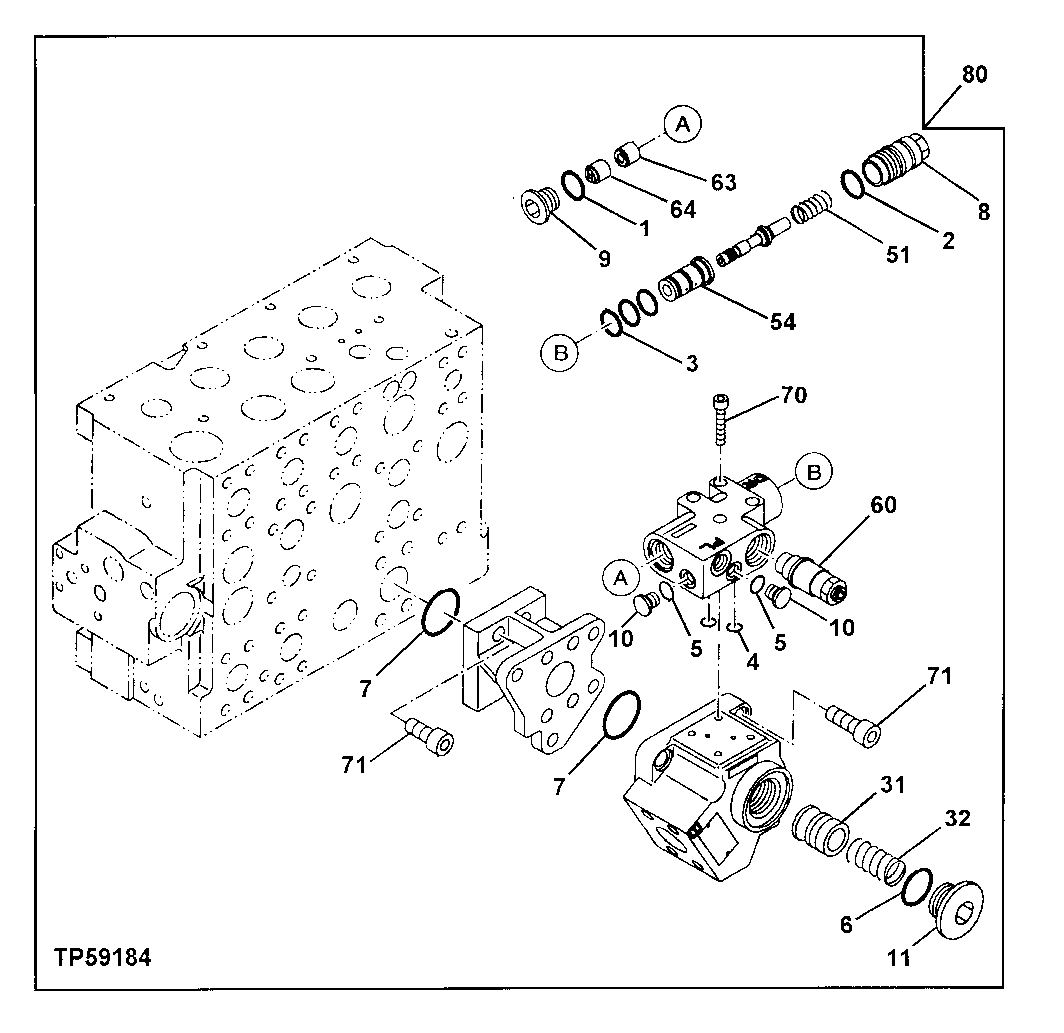

Схема запчастей John Deere 30LCR - 235 - CONTROL VALVE 3360 Hydraulic System

Артикул

Название

Примечание

Количество

0

4363127

Hyd Actuated Control Valve

(SUB FOR AT250457 AND 4363127EX)(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LIS TED ON PREVIOUS AND FOLLOWING PAGES)

1шт.

1

CH12329

Packing

1шт.

2

AT264333

O-Ring

(SUB FOR TH100096)

1шт.

3

4506416

O-Ring

15.800 X 2.400 mm (0.622" X 3/32") (SUB FOR TH102561)

3шт.

4

CH11568

Packing

2шт.

5

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

2шт.

6

TH101926

O-Ring

28.700 X 3.500 mm (1.130" X 0.138")

1шт.

7

970860

O-Ring

37.700 X 3.500 mm (1-31/64" X 0.138") (SUB FOR TH104634)

2шт.

8

0719002

Fitting Plug

(SUB FOR AT219521)

1шт.

9

0719003

Fitting Plug

(SUB FOR AT219522)

1шт.

10

0719004

Fitting Plug

(SUB FOR AT219523)

2шт.

11

0719005

Fitting Plug

(SUB FOR AT219524)

1шт.

31

0719006

Poppet

(SUB FOR AT219525)

1шт.

32

0719007

Spring

(SUB FOR AT219526)

1шт.

51

0719008

Spring

(SUB FOR AT219527)

1шт.

54

0719009

Spool

(SUB FOR AT219528)

1шт.

60

0719010

Pressure Relief Valve

(SUB FOR AT219529)

1шт.

63

0719011

Piston

(SUB FOR AT219530)

1шт.

64

0719012

Piston

(SUB FOR AT219531)

1шт.

70

19M8713

Screw

M6 X 45

4шт.

71

M341232

Bolt

M12 X 32 (SUB FOR TH100046)

8шт.

80

0719001

Flow Control Hyd. Valve

(SUB FOR AT219520)

1шт.

Выбрано товаров: 22
