Запчасти John Deere 30LCR 234 - CONTROL VALVE 3360 Hydraulic System

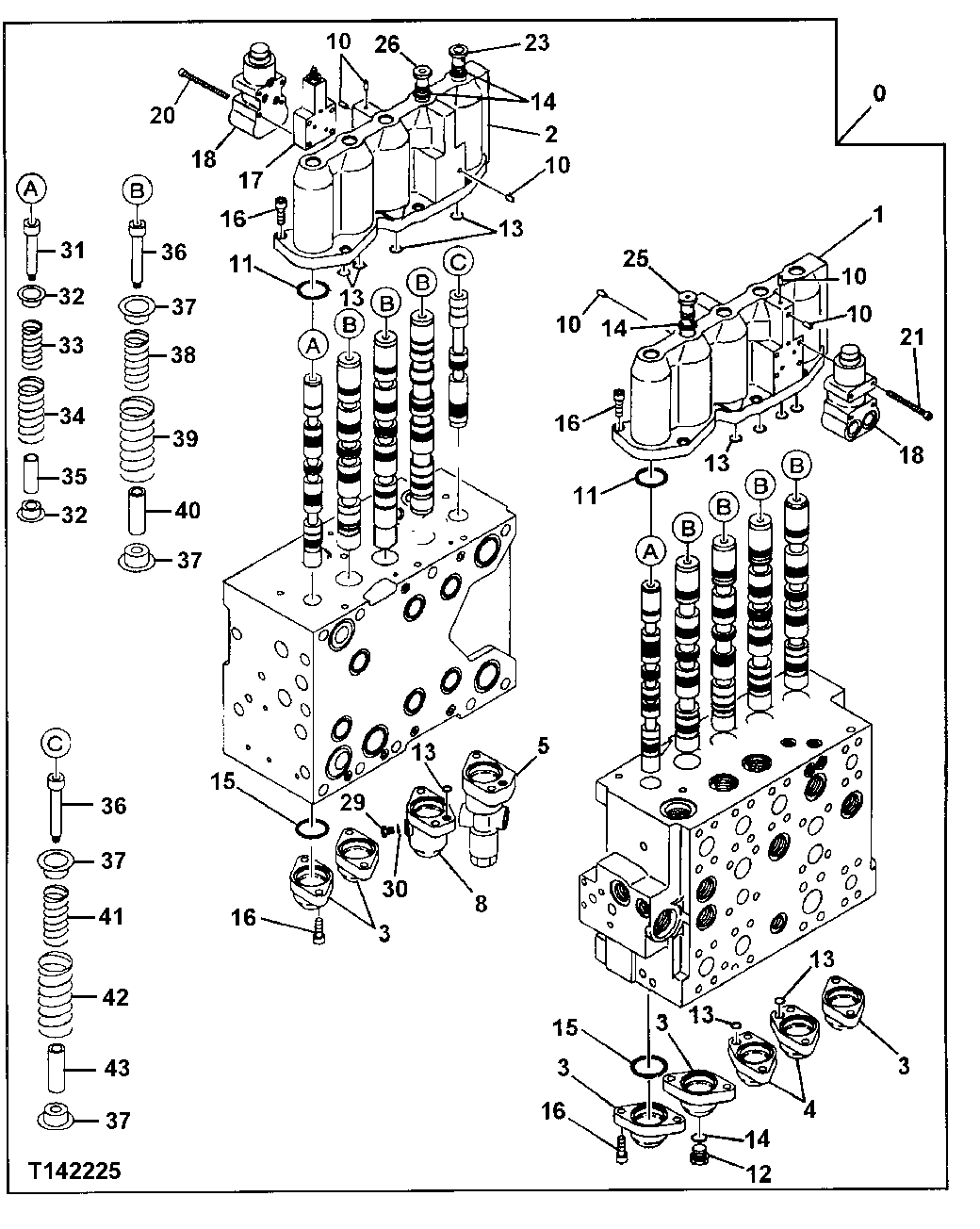

Схема запчастей John Deere 30LCR - 234 - CONTROL VALVE 3360 Hydraulic System

Артикул

Название

Примечание

Количество

0

4363127

Hyd Actuated Control Valve

(SUB FOR AT250457 AND 4363127EX)(CONTA INS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON FOLLOWING PAGES)

1шт.

1

TH0718902

Cover

(SUB FOR AT219508)

1шт.

2

AT219509

Cover

1шт.

3

AT219510

Cover

5шт.

4

AT219511

Cover

2шт.

5

0718906

Cover

(SUB FOR AT219512)

1шт.

8

0718907

Cover

(SUB FOR AT219513)

1шт.

10

15H560

Pipe Plug

1/16"

6шт.

11

CH15107

Packing

10шт.

12

AT219507

Fitting Plug

1шт.

13

CH11568

Packing

11шт.

14

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

6шт.

15

A811040

O-Ring

39.400 X 3.100 mm (1.551" X 0.122") (SUB FOR TH102992)

8шт.

16

19M8439

Screw

M8 X 25 (SUB FOR 19M7657)

32шт.

17

0718909

Plate

(SUB FOR AT219515)

1шт.

18

0718908

Flow Control Hyd. Valve

(SUB FOR AT219514)

2шт.

20

0384401

Screw

(SUB FOR AT219502)

4шт.

21

19M8541

Screw

M6 X 50

4шт.

23

0718910

Fitting Plug

(SUB FOR AT219516)

1шт.

25

0718911

Fitting Plug

(SUB FOR AT219517)

1шт.

26

0718912

Fitting Plug

(SUB FOR AT219518)

1шт.

29

0718913

Fitting Plug

(SUB FOR AT219519)

1шт.

30

E56086

O-Ring

5.283 X 1.778 mm (0.208" X 0.070")

1шт.

31

0718918

Screw

(SUB FOR AT193438)

2шт.

32

0718916

Spring

(SUB FOR AT193436)

4шт.

33

0718915

Spring

(SUB FOR AT193435)

2шт.

34

0718914

Spring

(SUB FOR AT193434)

2шт.

35

0718919

Bushing

(SUB FOR AT193439)

2шт.

36

0718921

Bolt

(SUB FOR AT193441)

8шт.

37

0718917

Spring

(SUB FOR AT193437)

16шт.

38

0718924

Spring

(SUB FOR AT193444)

7шт.

39

0718923

Spring

(SUB FOR AT193443)

7шт.

40

0718920

Bushing

(SUB FOR AT193440)

7шт.

41

0718926

Spring

(SUB FOR AT193446)

1шт.

42

0718925

Spring

(SUB FOR AT193445)

1шт.

43

0718922

Bushing

(SUB FOR AT193442)

1шт.

Выбрано товаров: 36
