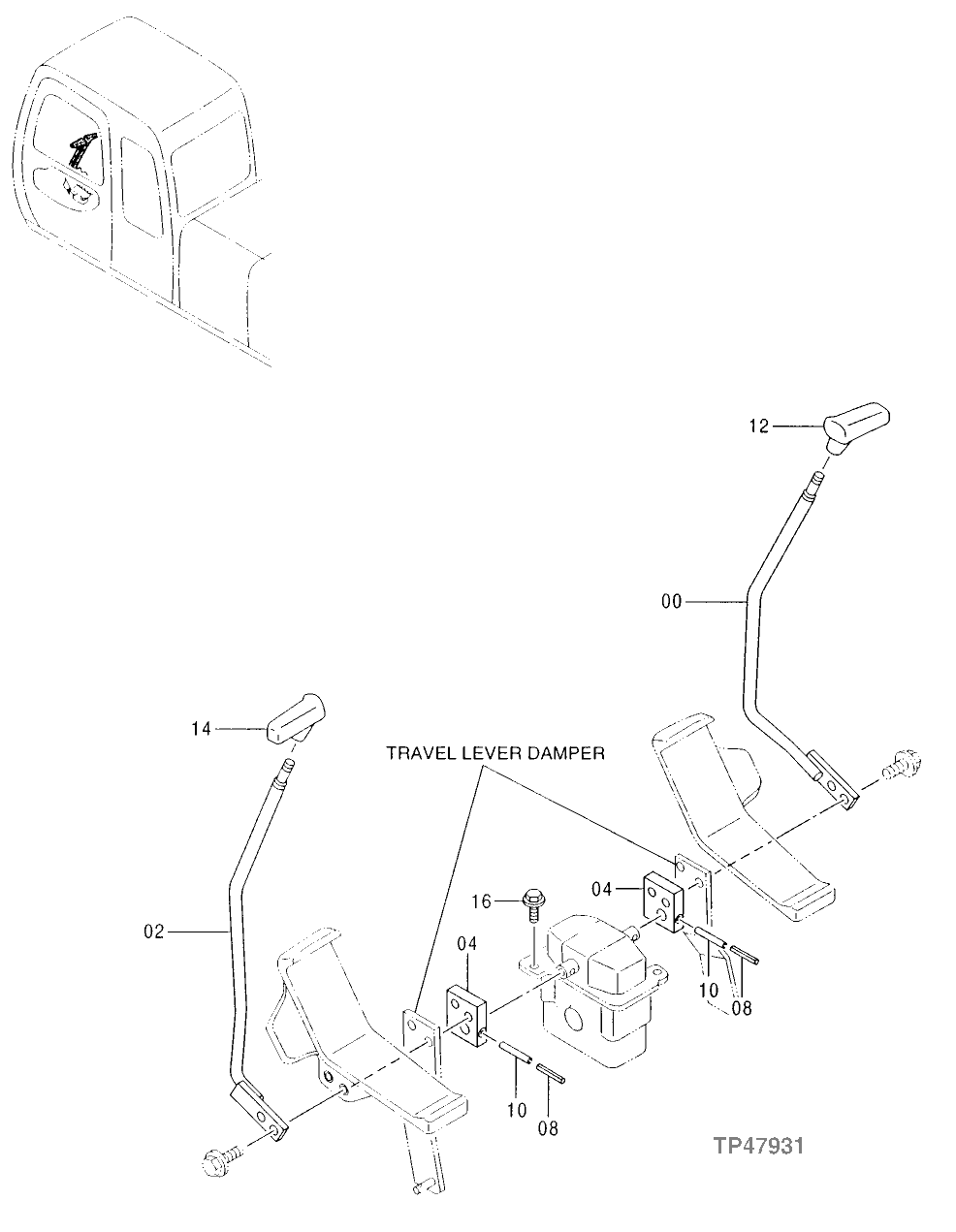

Запчасти John Deere 30LCR 215 - PROPEL CONTROL LEVER 3315 Controls Linkage

0

8075450

Lever

(SUB FOR AT174467, 8062667)

1шт.

2043585

Grip

(NOT ILLUSTRATED)

1шт.

4424185

Nut

(NOT ILLUSTRATED)

1шт.

2

8075449

Lever

(SUB FOR AT174468 OR 8062623)

1шт.

2043584

Grip

Not Illustrated

1шт.

4424185

Nut

Not Illustrated

1шт.

4

T205603

Bracket

(SUB FOR AT174469 OR 3072628)

2шт.

8

34M7062

Spring Pin

5 X 32 mm

2шт.

10

34M7124

Spring Pin

8 X 30 mm

2шт.

12

2038735

Grip

(SUB FOR AT213747)

1шт.

14

2038734

Grip

(SUB FOR AT213746)

1шт.

16

19M8337

Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.
