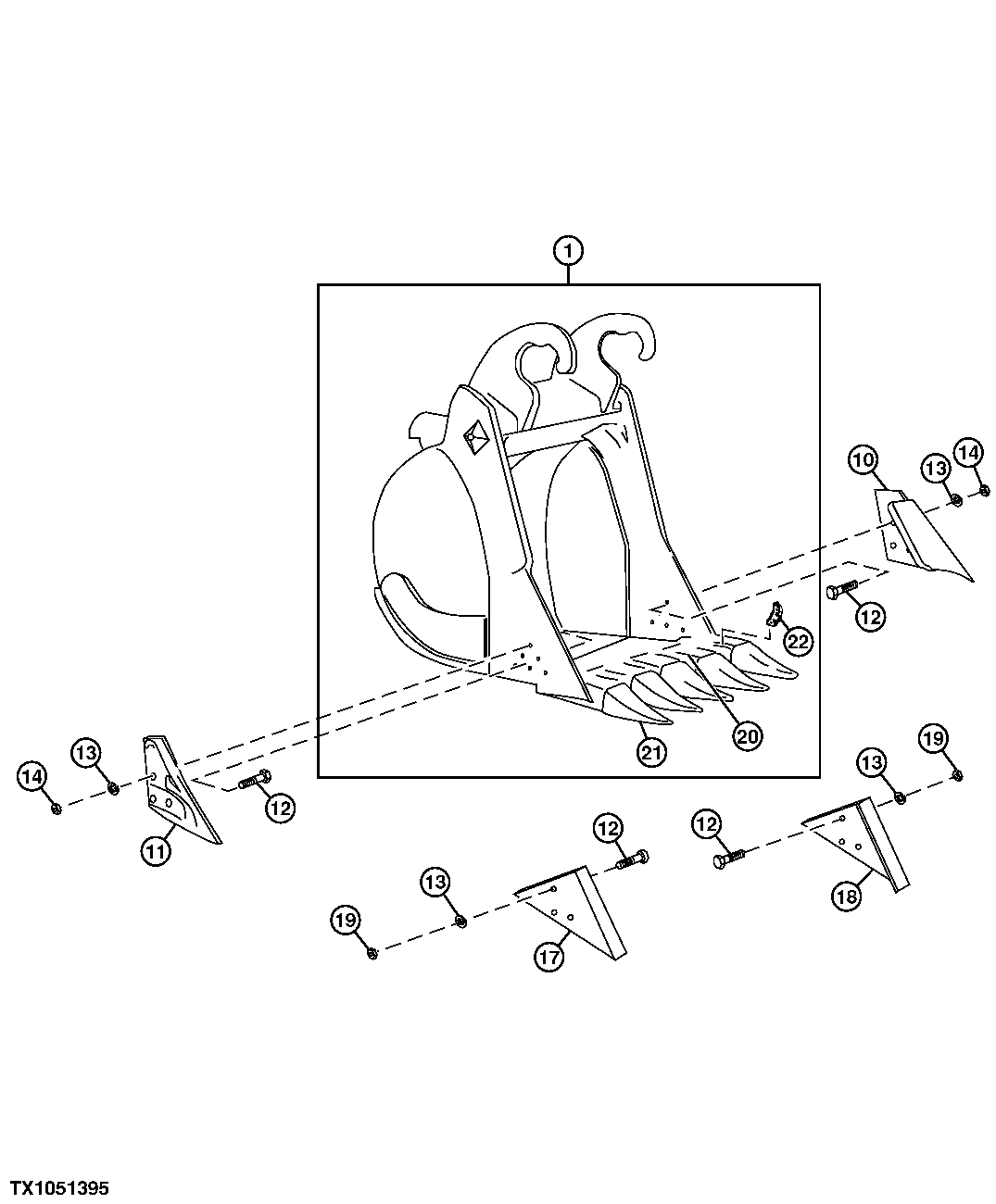

Запчасти John Deere 30LCR 208 - HEAVY DUTY BUCKET (48 INCH) 3302 Bucket With Teeth

1

Excavator Bucket

(F) ( AT188609 NLA) (48 INCH - 2.00 CUBIC YARD, HEAVY DUTY) WOODS-CENTRA L FABRICATORS PART NO. C909344-623311

1шт.

10

Cutting Edge

(K) (SUB AT131080)

1шт.

11

Cutting Edge

(K) (SUB AT131080)

1шт.

12

09H1770

Bolt

7/8" X 2-1/2" (K) (K2)

6шт.

13

12H245

Lock Washer

7/8" (K) (K2)

6шт.

14

14H1077

Nut

(K) 7/8"

6шт.

17

Shroud

(WEAR SHROUD) (SUB AT167874 (K2))

1шт.

18

Shroud

(WEAR SHROUD) (SUB AT167874 (K2))

1шт.

19

14H1044

Nut

7/8" (K2)

6шт.

20

T802X400

Shank

(SUB FOR PT802X400)

5шт.

21

TT400

Tooth

(TIGER)

5шт.

TX400

Tooth

(STANDARD) (NOT ILLUSTR ATED) (AVAILABLE OPTION)

5шт.

22

TP400HD

Pin

(SUB FOR PTP400HD)

5шт.
