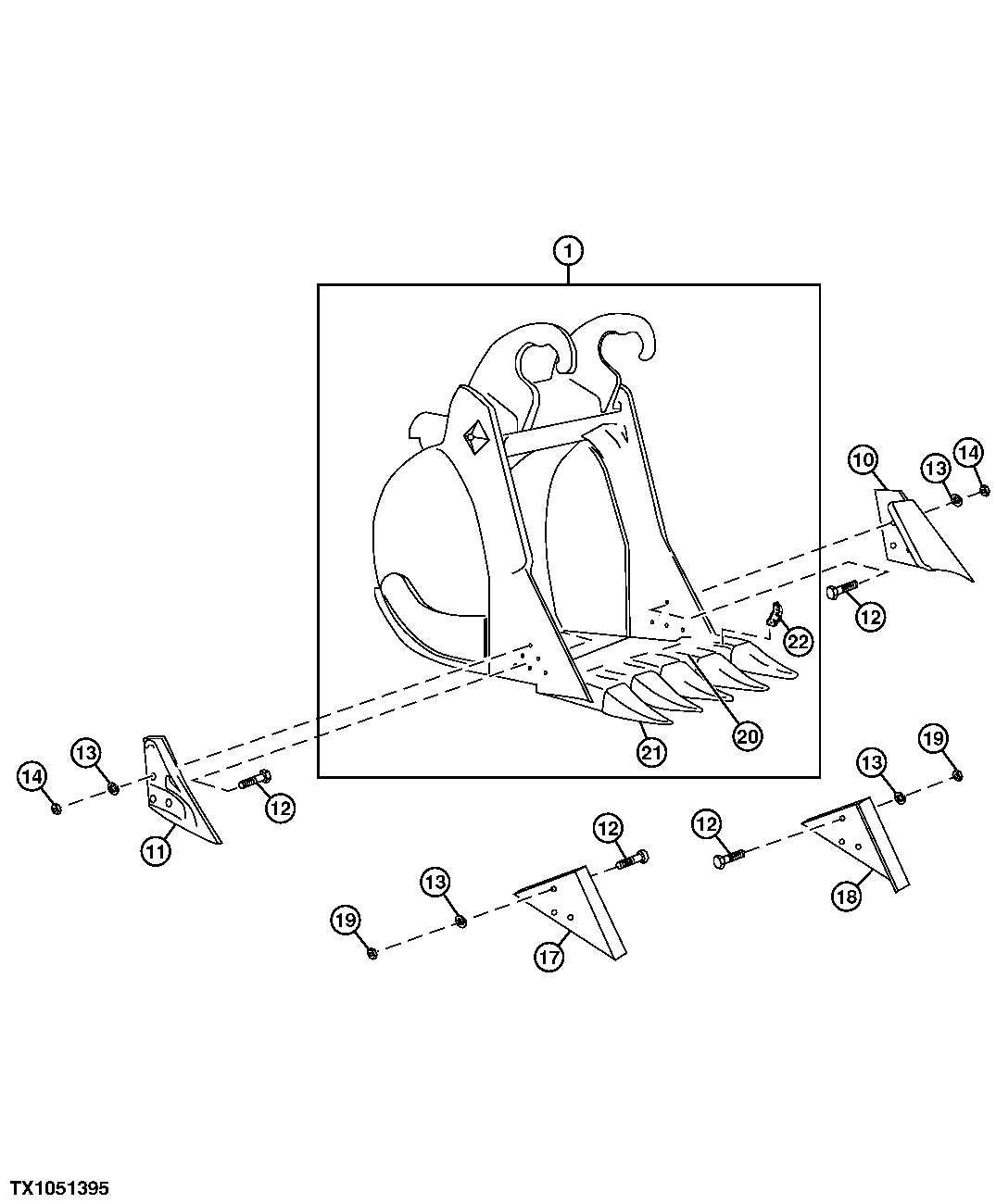

Запчасти John Deere 30LCR 207 - ROCK BUCKET (42 INCH) 3302 Bucket With Teeth

1

Excavator Bucket

(F) ( AT188614 NLA) (42 INCH - 1.88 CUBIC YARDS, ROCK BUCKET) WOODS-CENTRA L FABRICATORS PART NO. C909213-623133

1шт.

10

Cutting Edge

(K)

1шт.

11

Cutting Edge

(K)

1шт.

12

09H1771

Bolt

7/8" X 3" (K) (K2)

ARшт.

13

12H245

Lock Washer

7/8" (K) (K2)

ARшт.

14

14H1077

Nut

(K) 7/8"

6шт.

17

Shroud

(WEAR SHROUD) (K2)

1шт.

18

Shroud

(WEAR SHROUD) (K2)

1шт.

19

14H1044

Nut

7/8" (K2)

6шт.

20

T303X475

Bucket Tooth Adapter

4шт.

21

TT475

Tooth

(TIGER)

4шт.

22

TP475

Pin

4шт.
