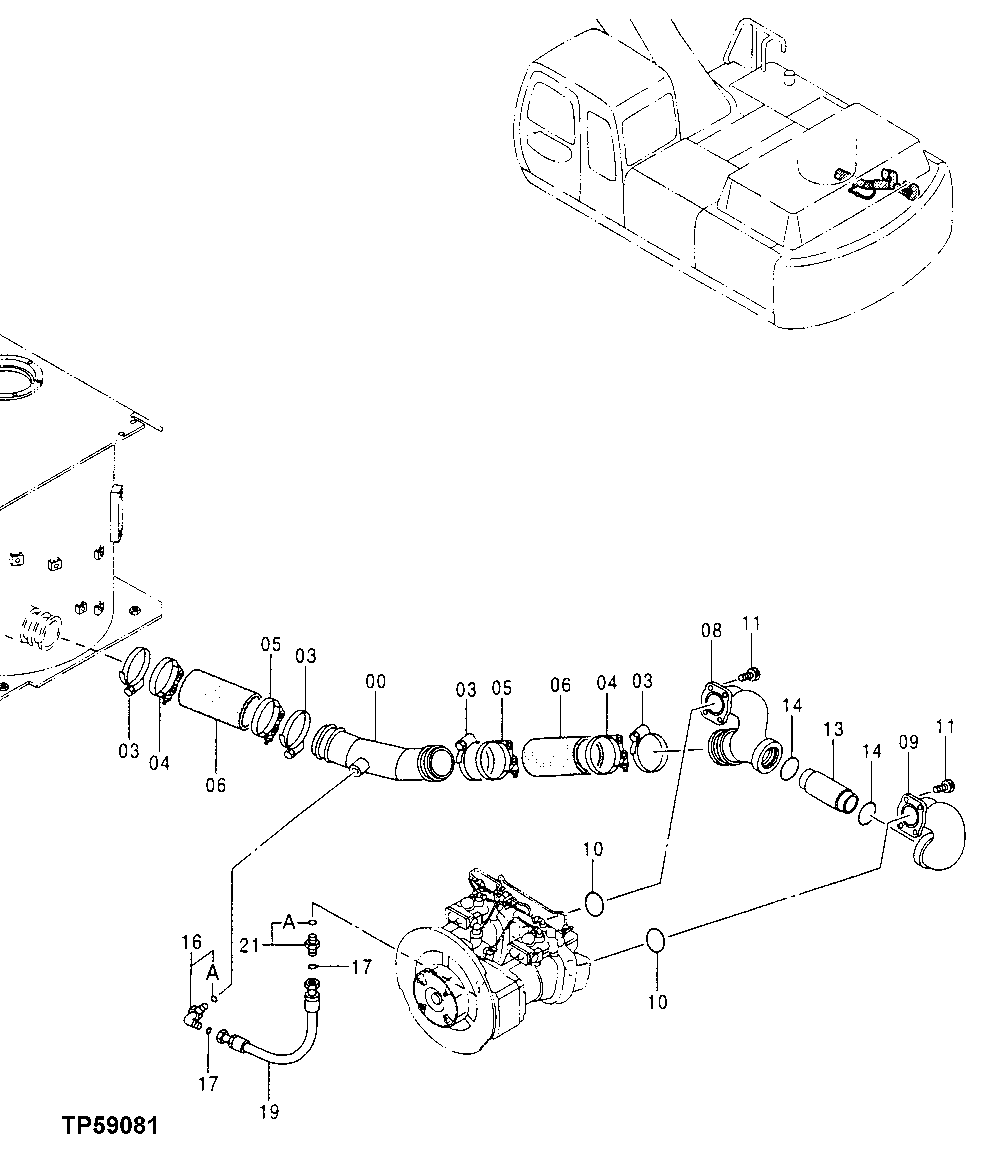

Запчасти John Deere 30LCR 203 - SUCTION PIPINGS 2160 Vehicle Hydraulics

0

8071342

Line

(SUB FOR AT250235)

1шт.

3

TY22476

Clamp

4шт.

4

RE28140

Clamp

2шт.

5

4282489

Hose Clamp

(SUB FOR AT215499)

2шт.

6

4314063

Hose

(SUB FOR AT201230)

2шт.

8

1018863

Manifold

(SUB FOR AT200956)

1шт.

9

2034914

Manifold

(SUB FOR AT200962)

1шт.

10

TH105684

O-Ring

74.400 X 3.100 mm (2.929" X 0.122")

2шт.

11

J781228

Bolt

(SUB FOR AT214412)

8шт.

13

3036667

Oil Line

(SUB FOR TH111168)

1шт.

14

T111314

O-Ring

74.600 X 5.700 mm (2-15/16" X 0.224")

2шт.

16

4157562

Elbow Fitting

(SUB FOR TH109540)

1шт.

16A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.

17

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

19

AT107220

Hydraulic Hose

30.1752" X 773 mm (30-1/2") X 30.1752"

1шт.

21

A853166

Adapter Fitting

(SUB FOR AT107392 OR 4189619)

1шт.

21A

AT318035

O-Ring

(SUB FOR 4506424, TH100055)

1шт.
