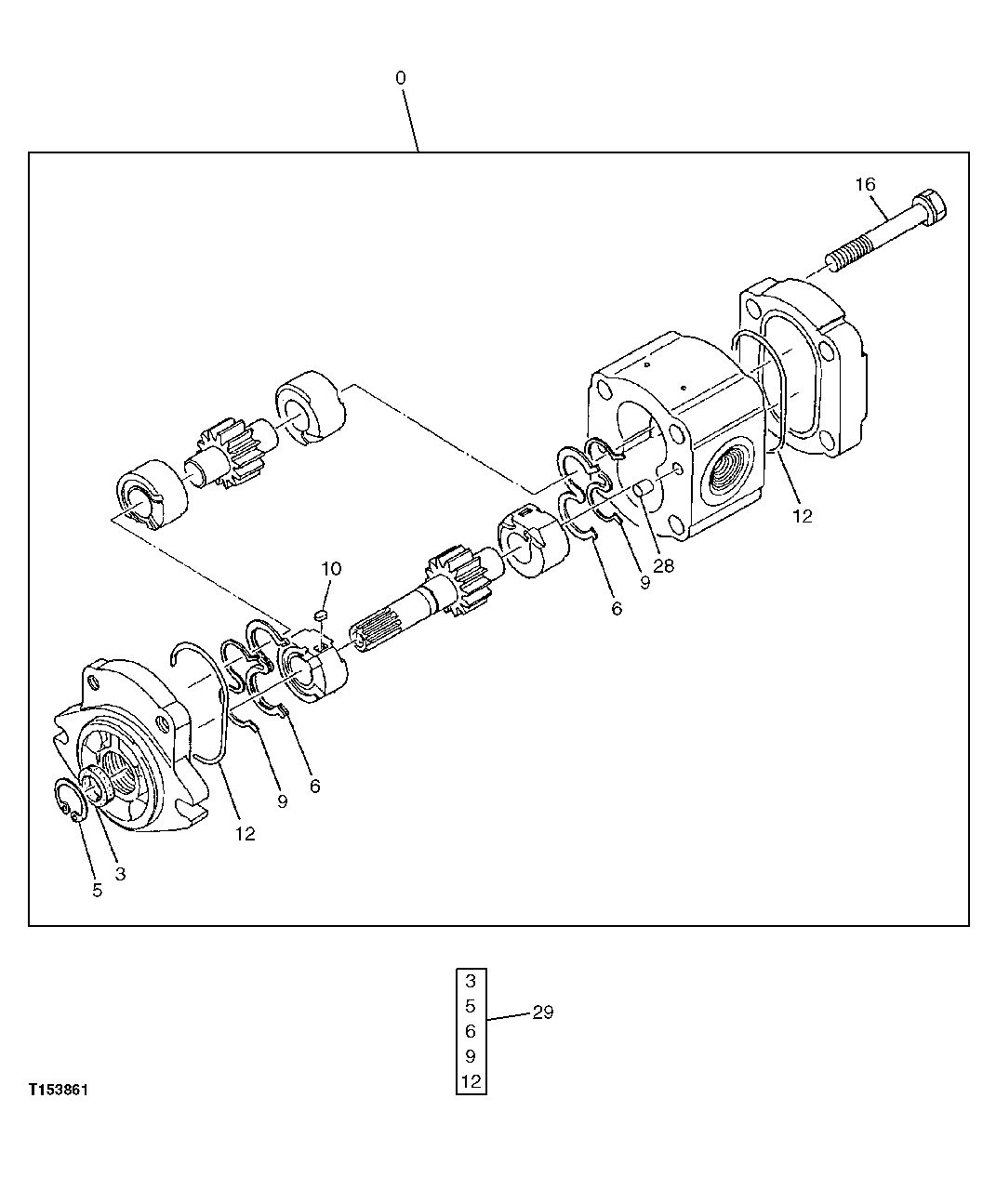

Запчасти John Deere 30LCR 200 - GEAR PUMP 2160 Vehicle Hydraulics

0

9217993

Pump

SUB FOR TH109457 AND 4181700

1шт.

3

0408202

Seal

(A) SUB FOR TH109917 AND AT153880

1шт.

5

40M1855

Snap Ring

(A)

1шт.

6

Seal

(A) TH109918NLA, ORDER 0408207 KIT

2шт.

9

Back-Up Ring

(A) TH109920 NLA, ORDER 0408207 KIT

2шт.

10

4206162

Key

SUB FOR TH109921

2шт.

12

4488720

O-Ring

(A) SUB FOR 4206163, TH10 9922, 0354608 OR TH0354608

2шт.

16

19M8093

Cap Screw

M10 X 100

4шт.

0266736

Washer

SUB FOR TH105196

4шт.

28

4206166

Dowel Pin

SUB FOR TH109925

2шт.

29

0408207

Seal Kit

INCLUDES PARTS MARKED (A) SUB FOR 0408207

1шт.
