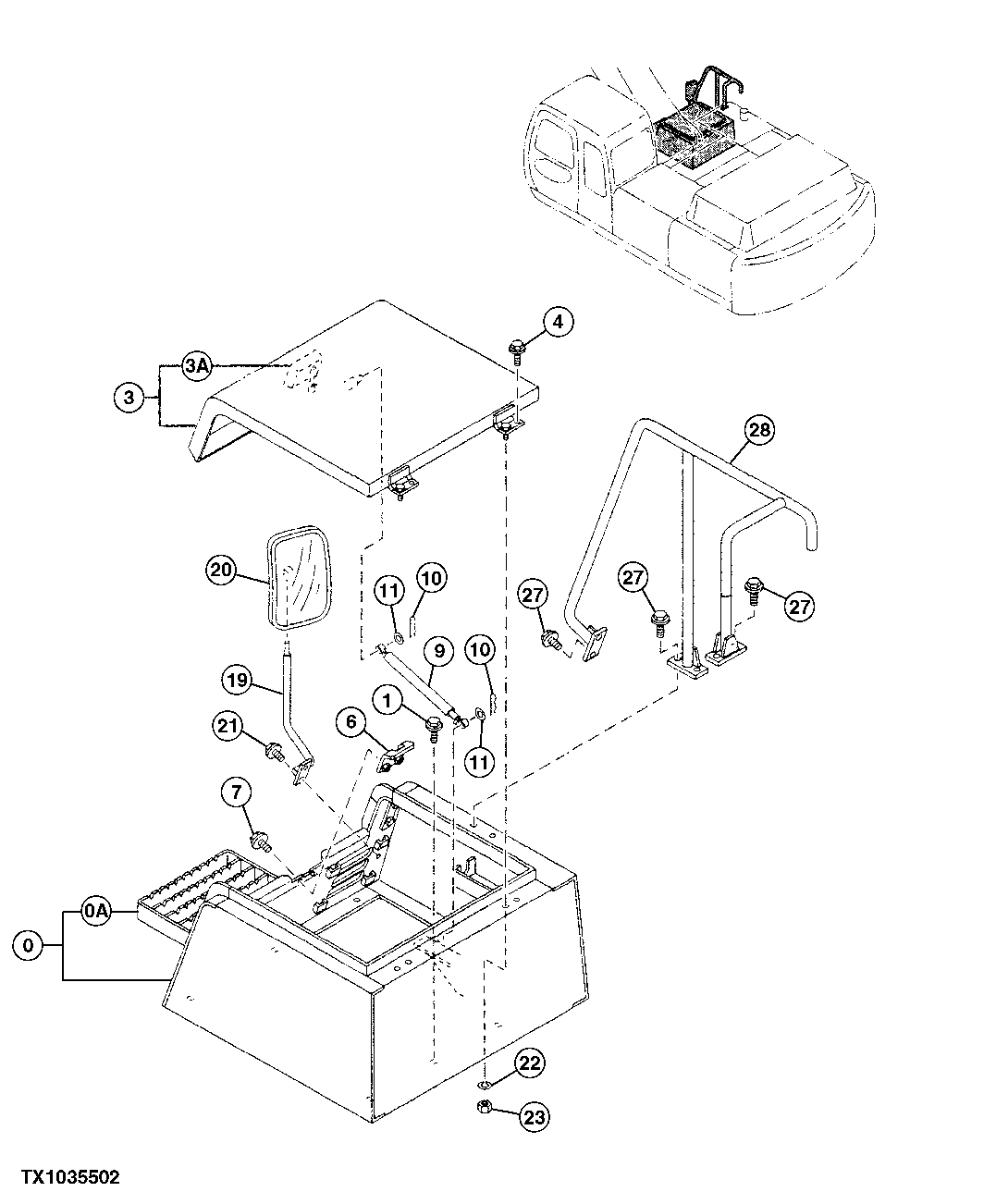

Запчасти John Deere 30LCR 182 - TOOL BOX COVER 1910 Hood Or Engine Enclosure

0

6016753

Toolbox

SUB FOR AT250164

1шт.

0A

9748882

Step

1шт.

1

12M7066

Lock Washer

10 mm

6шт.

19M7402

Cap Screw

M10 X 25

6шт.

24M7028

Washer

10.500 X 20 X 2 mm

6шт.

3

6016755J

Cover

SUB FOR AT250165 OR 6016755

1шт.

3A

4363915

Latch

SUB FOR AT215944

1шт.

4

19M8761

Screw

M10 X 22

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

6

9745798

Catch

SUB FOR AT214409

1шт.

7

19M7402

Cap Screw

M10 X 25

2шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

9

4352457

Cylinder

SUB FOR AT213967

1шт.

10

H132922

Cotter Pin

2шт.

11

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

19

4420724

Rear View Mirror

SUB FOR AT250239

1шт.

20

4420724

Rear View Mirror

SUB FOR TH104119

1шт.

21

19M7407

Cap Screw

M8 X 25

2шт.

Washer

12M7065 NLA

2шт.

22

12M7066

Lock Washer

10 mm

2шт.

23

14M7274

Nut

M10

2шт.

27

19M8011

Cap Screw

M12 X 30

6шт.

12M7058

Lock Washer

12 mm SUB FOR 12M7067

6шт.

28

7035338J

Handrail

SUB FOR AT250195 OR 7035338

1шт.
