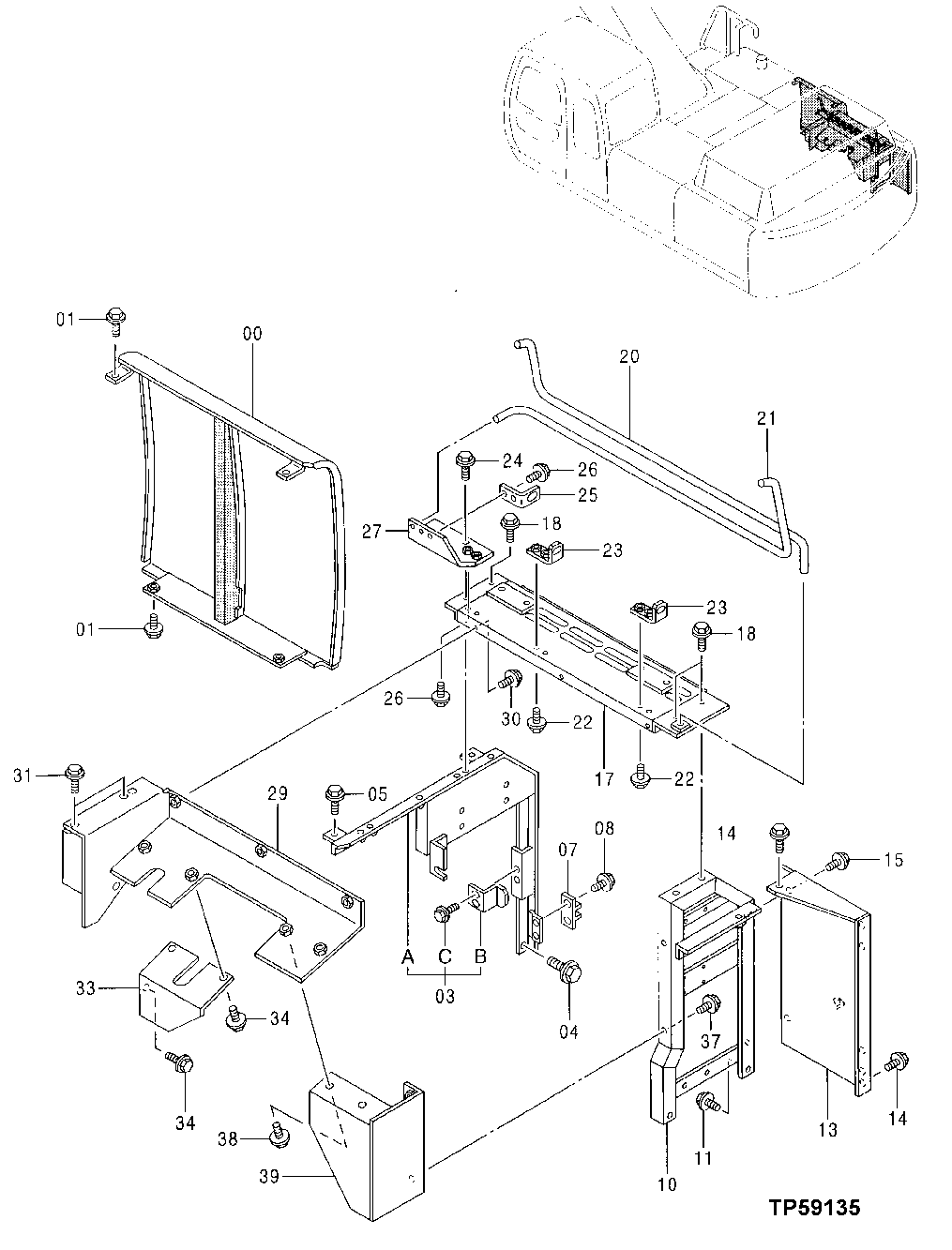

Запчасти John Deere 30LCR 177 - COVER (CONTINUED) 1910 Hood Or Engine Enclosure

21

4397604

Torsion Spring

(SUB FOR AT250117)

1шт.

22

19M7662

Cap Screw

M10 X 30

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

23

9748439

Bracket

(SUB FOR AT250271)

2шт.

24

19M7550

Cap Screw

M10 X 35

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

25

9748440

Bracket

(SUB FOR AT250272)

1шт.

26

19M7662

Cap Screw

M10 X 30

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

27

8071335

Bracket

(SUB FOR AT250230)

1шт.

29

7033339

Cover

(SUB FOR AT250182)

1шт.

30

19M7662

Cap Screw

M10 X 30

3шт.

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

12M7066

Lock Washer

10 mm

3шт.

31

19M7662

Cap Screw

M10 X 30

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.

33

8069415

Cover

(SUB FOR AT250222)

1шт.

34

19M7402

Cap Screw

M10 X 25

3шт.

24M7028

Washer

10.500 X 20 X 2 mm

3шт.

12M7066

Lock Washer

10 mm

3шт.

37

19M7662

Cap Screw

M10 X 30

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

38

19M7402

Cap Screw

M10 X 25

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

39

8070118

Cover

(SUB FOR AT250225)

1шт.
