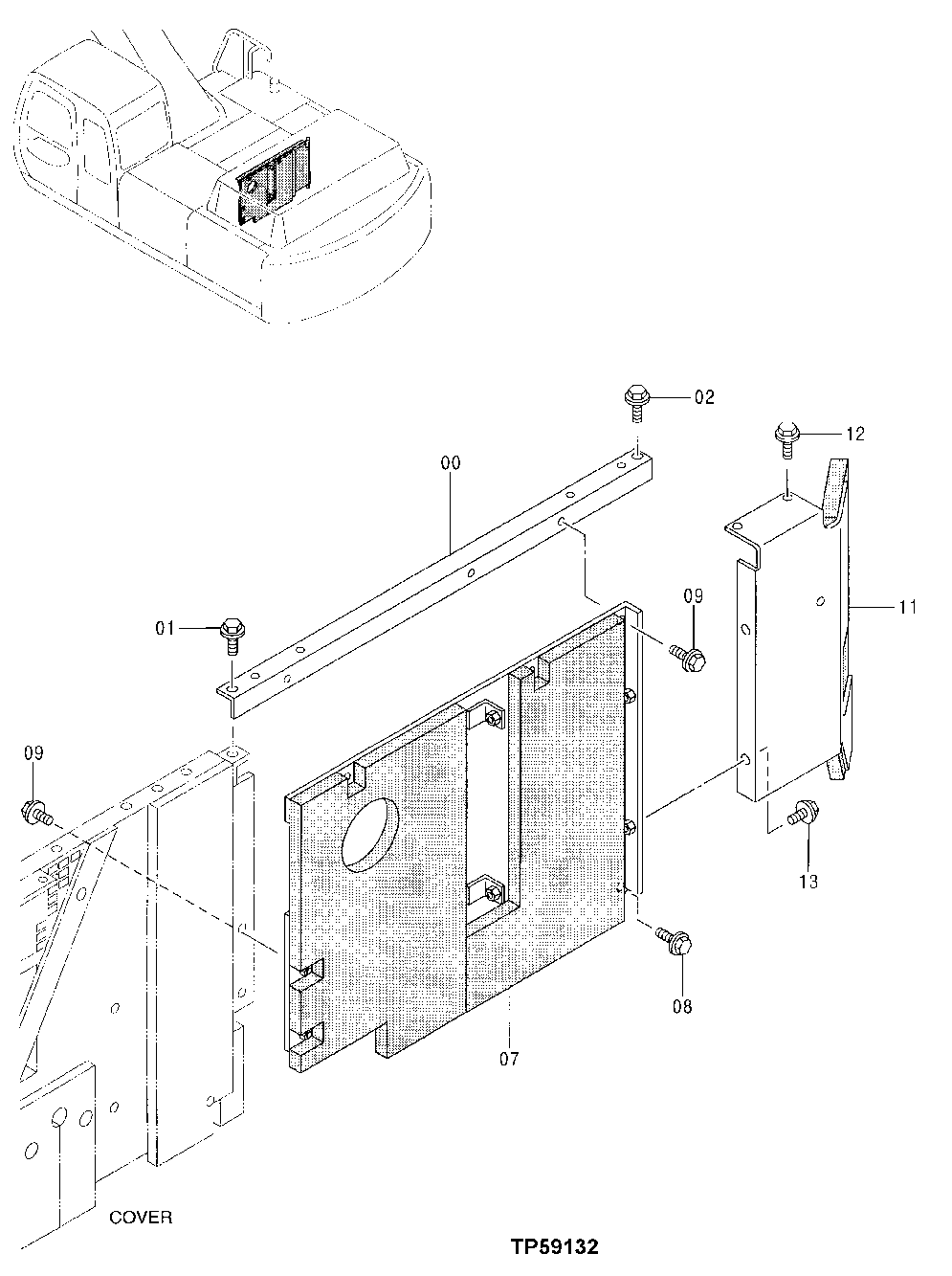

Запчасти John Deere 30LCR 174 - COVER 1910 Hood Or Engine Enclosure

0

8072966

Support

(SUB FOR AT250241)

1шт.

1

19M7662

Cap Screw

M10 X 30

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

2

19M7662

Cap Screw

M10 X 30

1шт.

24M7346

Washer

11 X 20 X 2 mm

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

7

7035326

Cover

(SUB FOR AT250194)

1шт.

8

19M7662

Cap Screw

M10 X 30

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

9

19M7662

Cap Screw

M10 X 30

5шт.

24M7346

Washer

11 X 20 X 2 mm

5шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

5шт.

11

7033289

Cover

(SUB FOR AT250181)

1шт.

12

19M7662

Cap Screw

M10 X 30

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

13

19M7662

Cap Screw

M10 X 30

2шт.

24M7346

Washer

11 X 20 X 2 mm

2шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

2шт.
