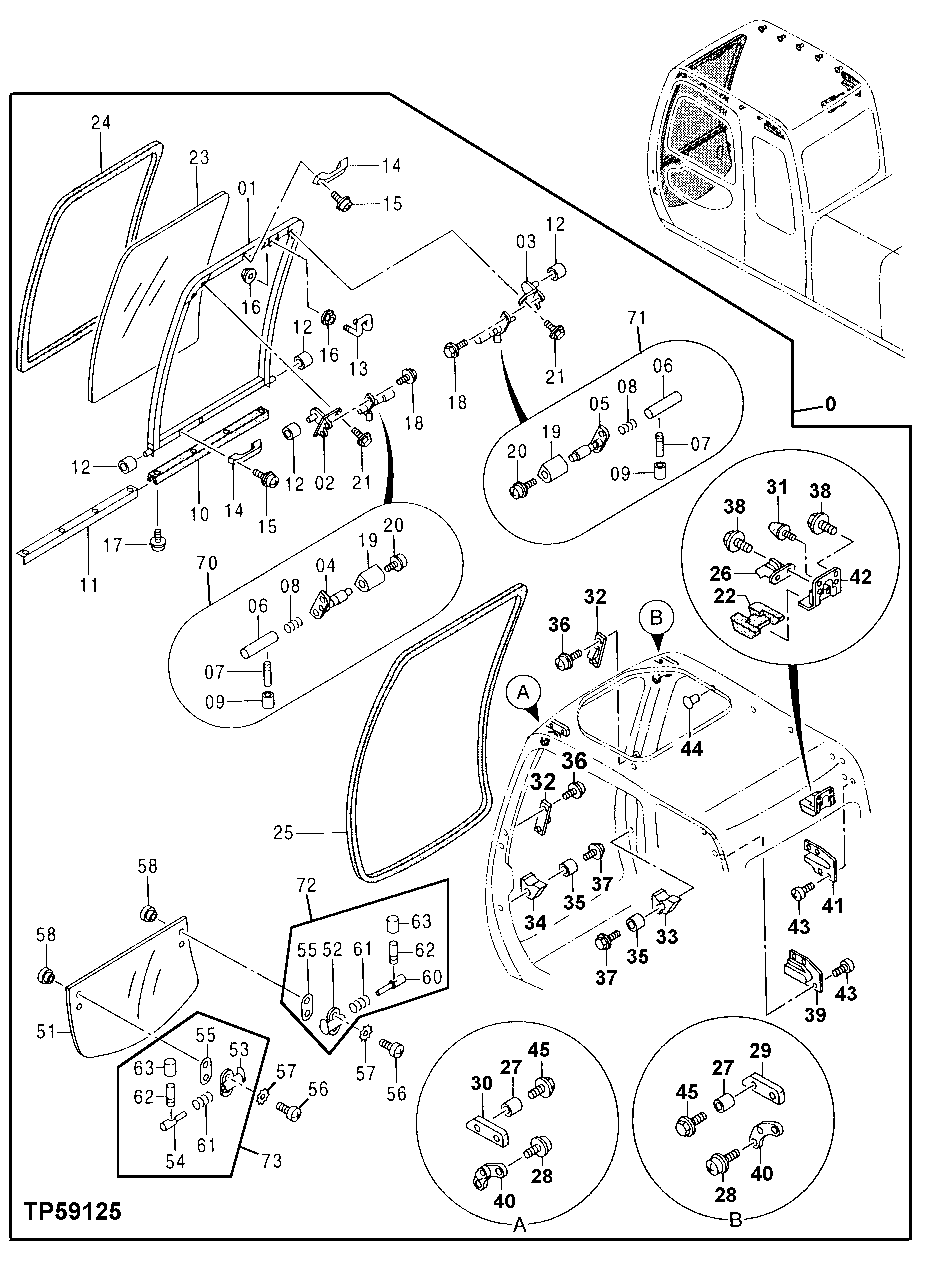

Запчасти John Deere 30LCR 130 - CAB COMPONENTS (CONTINUED) 1810 Operator Enclosure

0

4383439

Cab

SUB FOR AT215570; CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS L ISTED ON PREVIOUS AND FOLLOWING PAGES

1шт.

31

4204586

Bumper

SUB FOR TH108668

1шт.

32

4369578

Catch

SUB FOR AT214088

4шт.

33

4403593

Stop

SUB FOR AT214085

1шт.

34

4403594

Stop

SUB FOR AT214086

1шт.

35

4369577

Bushing

SUB FOR AT214087

2шт.

36

4372211

Screw With Washer

SUB FOR AT214298

12шт.

37

4372221

Screw With Washer

SUB FOR AT214307

2шт.

38

19M7162

Cap Screw

M8 X 16 SUB FOR AT214308 OR 43722 22, ALONG WITH 24M7036 AND 12M7065

6шт.

24M7036

Washer

9 X 16 X 1.600 mm

6шт.

Washer

12M7065 NLA

6шт.

39

4369584

Cover

SUB FOR AT214094

1шт.

40

4369579

Guide

SUB FOR AT214089

2шт.

41

4369583

Cover

SUB FOR AT214093

1шт.

42

4369564

Bracket

SUB FOR AT214074

1шт.

43

21M7246

Screw

M6 X 16

8шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

12M7006

Lock Washer

6 mm

8шт.

44

4372088

Clip

SUB FOR AT214287

10шт.

45

4372224

Screw With Washer

SUB FOR AT214310

4шт.

51

AT214097

Windowpane

1шт.

52

4369590

Latch

SUB FOR AT214098

1шт.

53

4369593

Latch

SUB FOR AT214100

1шт.

54

4204547

Pin

SUB FOR TH108626

1шт.

55

4369594

Gasket

SUB FOR AT214101

2шт.

56

4372213

Screw

SUB FOR AT214300

4шт.

57

4372561

Washer

SUB FOR AT214315

4шт.

58

4369674

Bushing

SUB FOR AT214172

4шт.

60

4369591

Pin Fastener

SUB FOR AT214099

1шт.

61

494918

Spring

SUB FOR TH106783

2шт.

62

4295480

Lever

SUB FOR AT156993

2шт.

63

4295876

Cover

SUB FOR AT156994

2шт.

70

Latch

SUB FOR AT182612; 4395903 NO LONG ER AVAILABLE - FURNISH COMPONENTS

1шт.

71

4395902

Latch

SUB FOR AT182613

1шт.

72

4395905

Latch

SUB FOR AT182614

1шт.

73

4395904

Latch

SUB FOR AT182616

1шт.
