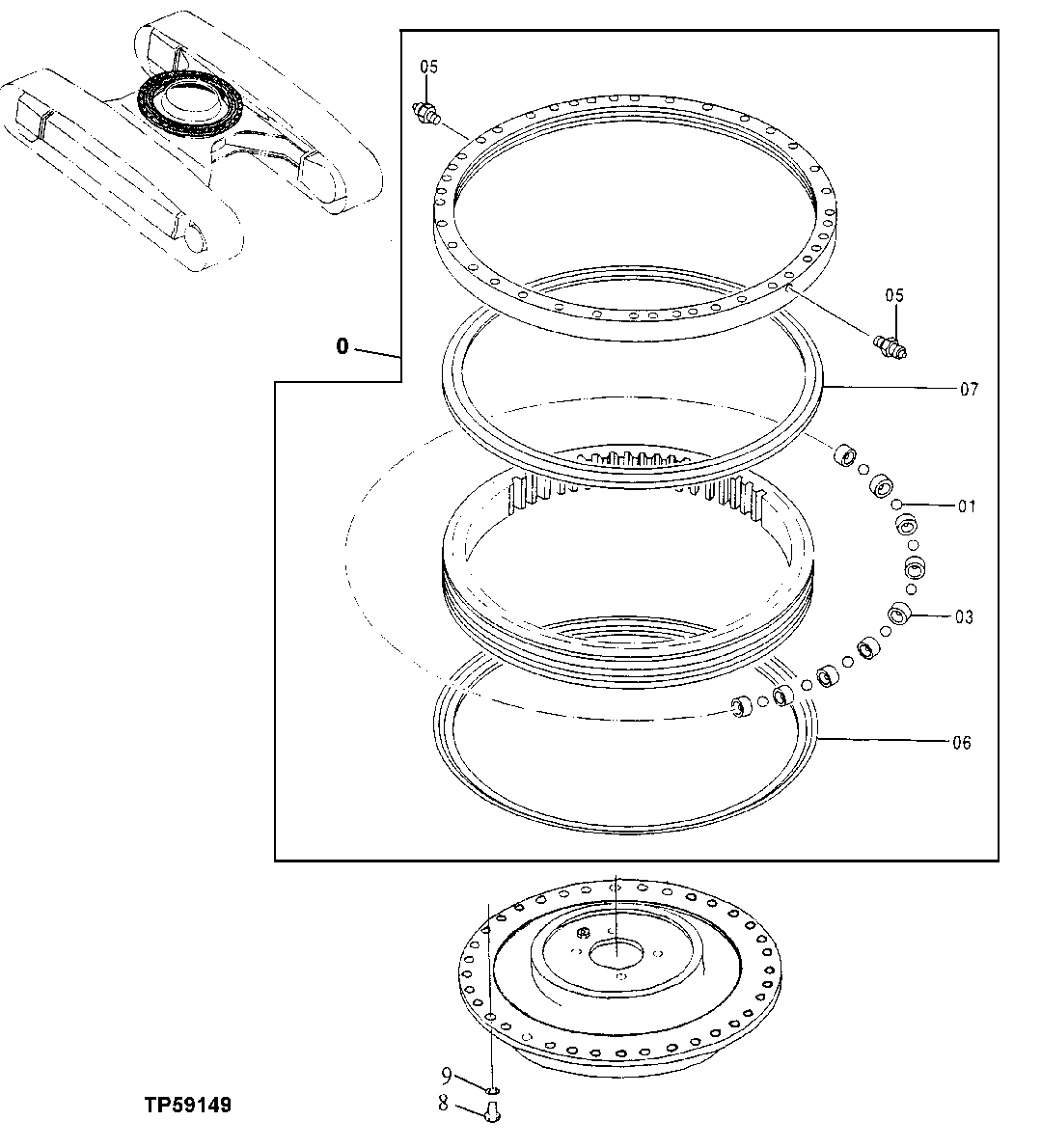

Запчасти John Deere 30LCR 121 - SWING BEARING 1740 Frame Installation

0

9219138

Swing Bearing

NLA; ORDER 9219138EX

1шт.

9219138EX

Swing Bearing

SUB FOR AT250255, AT19 0779; REMAN FOR 9219138

1шт.

1

4382742

Ball

SUB FOR AT250035

95шт.

3

4382739

Spacer

SUB FOR AT250034

95шт.

5

TH100074

Lubrication Fitting

2шт.

6

T203958

Seal

4631753 NLA, SUB FOR (1) 4634010; A LSO ORDER PM37391 AND AT66866; ALSO O RDER T216880 Installation Instruction

1шт.

TY21517

Adhesive

NOT ILLUSTRATED

1шт.

AT66866

Fluid

NOT ILLUSTRATED

1шт.

7

T203958

Seal

4631753 NLA, SUB FOR (1) 4634010; A LSO ORDER PM37391 AND AT66866; ALSO O RDER T216880 Installation Instruction

1шт.

TY21517

Adhesive

NOT ILLUSTRATED

1шт.

AT66866

Fluid

NOT ILLUSTRATED

1шт.

8

4383972

Screw

SUB FOR AT250043

36шт.

9

J257227

Lock Washer

SUB FOR AT250278

36шт.
