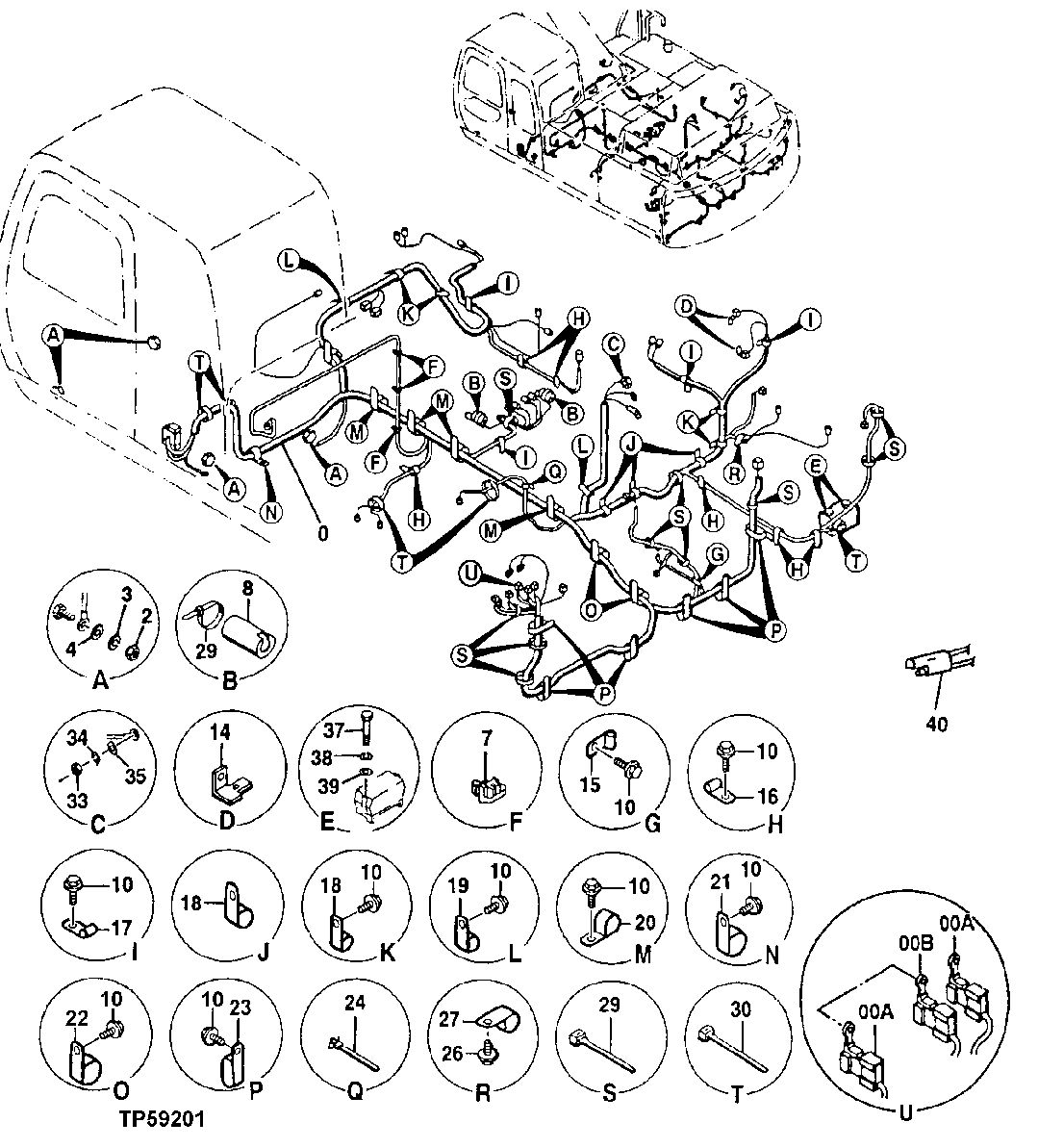

Запчасти John Deere 30LCR 108 - ELECTRIC PARTS 1674 Wiring Harness & Switches

0

0003915

Wiring Harness

SUB FOR AT219500 OR 0003074; SEE DTAC SOLUTION FOR REPAIR KIT AND CONNECTORS

1шт.

0A

4270554

Fuse

SUB FOR AT160982; FUSIB LE LINK - 40 AMP - GREEN

2шт.

0B

4287670

Fuse

SUB FOR AT200499; FUSIBL E LINK - 60 AMP - YELLOW

1шт.

0C

4374532

Diode

SUB FOR AT179476; NOT ILLUSTRATED, COMPON ENT OF MAIN WIRE HARNESS, PLASTIC CONNECTO R CONTAINS 5 DIODES, 1-KEYSWITCH, 1-SWING STOP CUSHION SOLENOID, 1-GRIP SOLENOID, 1- FUEL SHUTOFF SOLENOID, 1-OPTIONAL EQUIPMEN T

1шт.

2

14M7274

Nut

M10

4шт.

3

12M7066

Lock Washer

10 mm

4шт.

4

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

7

4343690

Clip

SUB FOR AT213895

3шт.

8

4207239

Cap

SUB FOR TH108591

2шт.

10

12M7066

Lock Washer

10 mm

ARшт.

19M7938

Cap Screw

M10 X 20

ARшт.

14

4257159

Bracket

SUB FOR AT154243

2шт.

15

4192018

Clip

SUB FOR TH110498

2шт.

16

4190261

Clip

SUB FOR TH109649

7шт.

17

4190275

Clamp

SUB FOR TH108598

4шт.

18

T28949

Clamp

SUB FOR TH108460 OR 4190273

7шт.

19

T28949

Clamp

SUB FOR TH108458 OR 4190274

3шт.

20

XCL-19

Hose Clamp

SUB FOR TH108459 OR 4192035

4шт.

21

AT121321

Hose Clamp

1шт.

22

T24432

Clamp

2шт.

23

4190266

Clip

SUB FOR TH108793

6шт.

24

4254600

Clip

SUB FOR AT154928

1шт.

26

19M8425

Cap Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

27

4000860

Clamp

SUB FOR AT154911

1шт.

29

H77698

Tie Band

12шт.

30

H77698

Tie Band

5шт.

33

14M7297

Nut

M5

1шт.

34

12M7064

Lock Washer

5 mm

1шт.

35

24M7027

Washer

5.300 X 10 X 1 mm

1шт.

37

19M8456

Cap Screw

M8 X 100

2шт.

38

Washer

12M7065 NLA

2шт.

39

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

40

AT172578

Wiring Harness

DIODE; USED TO PROTECT AGAINST VOLTAGE SPIKES

1шт.
