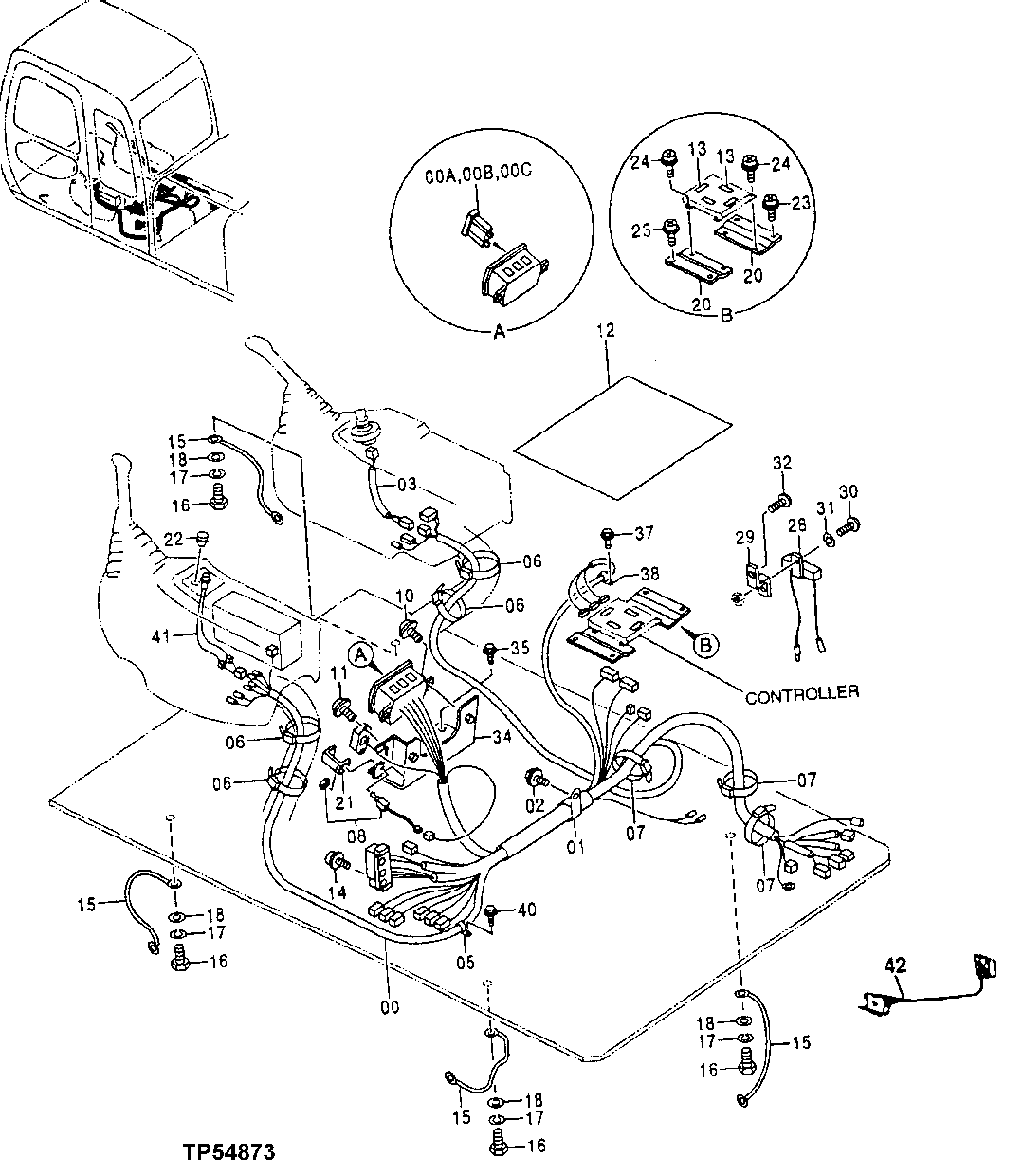

Запчасти John Deere 30LCR 104 - ELECTRIC PARTS 1674 Wiring Harness & Switches

0

0002289

Wiring Harness

SUB FOR AT215475

1шт.

0A

57M7125

Fuse

8шт.

0B

57M7121

Fuse

8шт.

0C

57M7120

Fuse

3шт.

1

N198631

Clamp

SUB FOR TH109598 OR 4190265

1шт.

2

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

3

4277927

Wiring Harness

SUB FOR AT154955

1шт.

5

4190275

Clamp

SUB FOR TH108598

1шт.

6

H77698

Tie Band

4шт.

7

H77698

Tie Band

3шт.

8

4359384

Switch

SUB FOR AT213984

1шт.

10

19M7077

Cap Screw

M6 X 20

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

11

Screw

SUB FOR AT156974; J460310 NLA

2шт.

21M7394

Screw

M3 X 10

2шт.

24H1914

Washer

1/8" X 5/16" X 0.032"

2шт.

12H233

Lock Washer

1/8"

2шт.

12

3075379

Cover

SUB FOR AT213792

1шт.

13

4365396

Tape

SUB FOR AT214022

4шт.

14

Screw With Washer

J460620 NO LONGER AVAI LABLE SUB FOR AT200012

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

15

Wiring Harness

4шт.

16

19M8324

Cap Screw

M10 X 16

4шт.

17

12M7066

Lock Washer

10 mm

4шт.

18

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

20

Bracket

9745785 AND AT214408 NLA

2шт.

21

4367375

Bracket

SUB FOR AT214036

1шт.

22

4294437

Cap

SUB FOR AT215503

1шт.

23

J450616

Screw

SUB FOR AT161039

4шт.

24

Screw With Washer

J460625 NLA SUB FOR AT213607

4шт.

21M7159

Screw

M6 X 25

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

28

4191772

Resistor

SUB FOR AT155250; ALTERNATOR EXITATION

1шт.

29

4379070

Strap

SUB FOR AT215559

1шт.

30

4204811

Screw

SUB FOR AT155253

1шт.

31

12H315

Lock Washer

0.164" SUB FOR 12M7063

1шт.

32

21M7246

Screw

M6 X 16

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7105

Washer

6 X 12 X 1.600 mm

1шт.

34

8067722

Bracket

SUB FOR AT215606

1шт.

35

19M7881

Screw

M8 X 20

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

37

19M7923

Cap Screw

M6 X 12

1шт.

12M7006

Lock Washer

6 mm

1шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

1шт.

38

AH78237

Clamp

SUB FOR AT215502; SUB FOR 4289217

1шт.

40

19M7402

Cap Screw

M10 X 25

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7028

Washer

10.500 X 20 X 2 mm

1шт.

41

4384758

Switch

TRAVEL ALARM SWITCH SUB FOR AT215573

1шт.

42

Wiring Harness

AT179050 NLA 9 FT EXTE NSION, TO CAB CONNECTOR

1шт.

AT179051

Wiring Harness

15 FT EXTENSION, TO CAB CONNECTOR

1шт.
