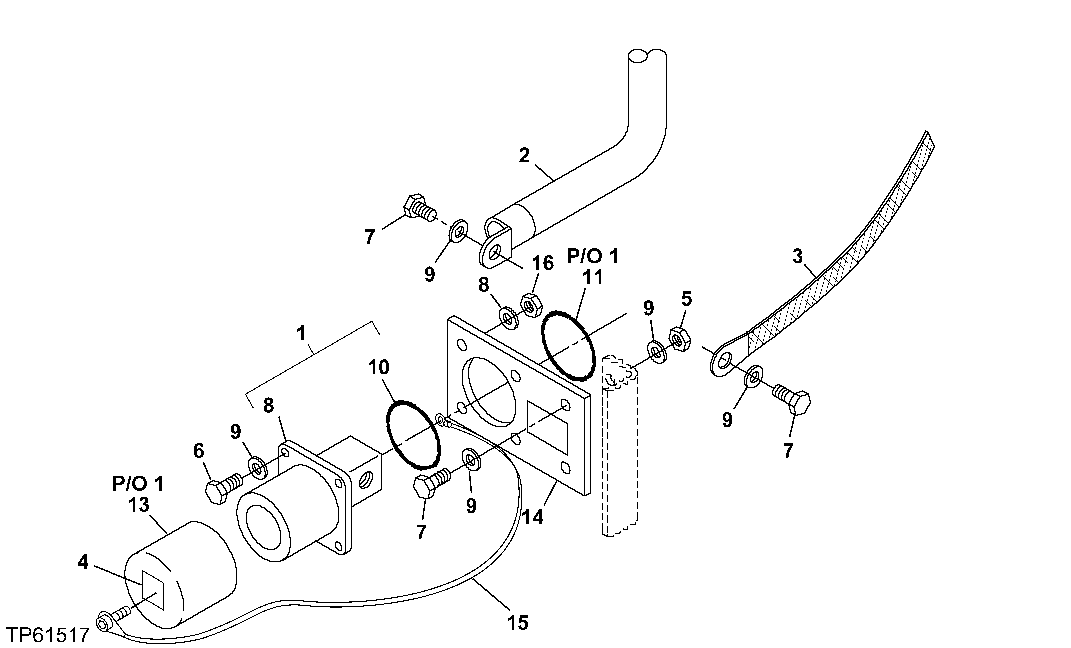

Запчасти John Deere 30LCR 98 - SLAVE RECEPTACLE 1671 Batteries, Support & Cables

1

AT116262

Electrical Connector Assy

1шт.

2

AT117121

Jumper

1шт.

3

AT180124

Ground Cable

1шт.

4

T108347

Label

1шт.

5

14M7426

Lock Nut

M8

6шт.

6

19M7373

Cap Screw

M5 X 20

4шт.

7

19M7407

Cap Screw

M8 X 25

4шт.

8

24H1290

Washer

21/64" X 3/4" X 0.035"

4шт.

9

24M7298

Washer

8.400 X 25 X 2 mm (SUB FOR 24M7207)

8шт.

10

Insulator

(SUB AT116262)

1шт.

11

Gasket

(SUB AT116262)

1шт.

12

Receptacle

(SUB AT116262)

1шт.

13

Cover

(SUB AT116262)

1шт.

14

T183962

Plate

1шт.

15

AT189684

Cover

1шт.

16

T166551

Nut

4шт.
