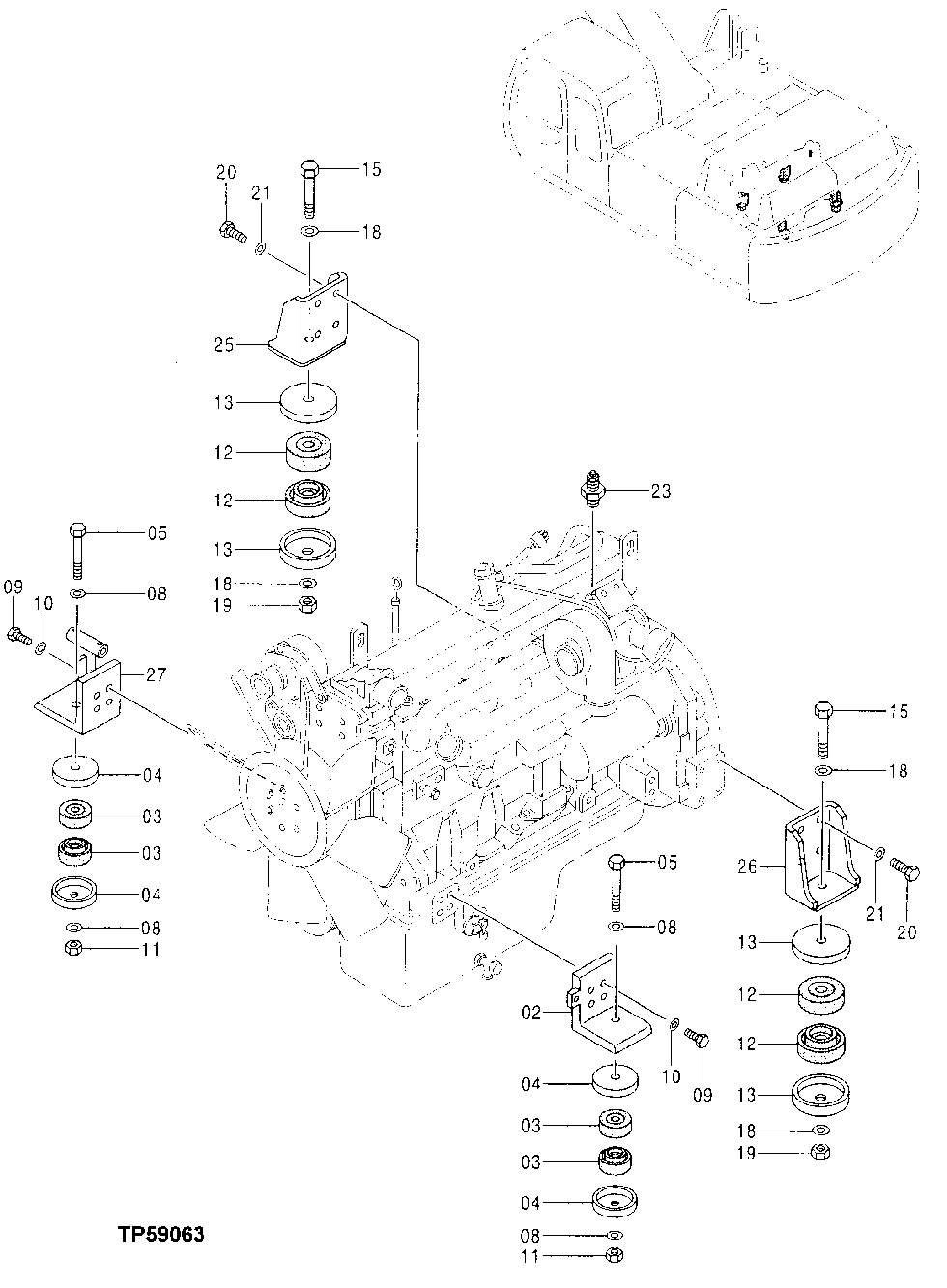

Запчасти John Deere 30LCR 89 - ENGINE MOUNTING SUPPORTS 0540 ENGINE MOUNTING

2

4469731

Bracket

(SUB FOR AT250275 AND 9749751)

1шт.

3

4256314

Isolator

(SUB FOR AT200995)

4шт.

4

4189018

Retainer

(SUB FOR TH109410)

4шт.

5

J921806

Bolt

(SUB FOR AT217704)

2шт.

8

24M7353

Washer

20 X 34 X 3 mm

4шт.

9

19H2599

Cap Screw

5/8" X 2-1/2"

8шт.

10

24M7338

Washer

17 X 30 X 3 mm

8шт.

11

J950018

Nut

(SUB FOR AT217708)

2шт.

12

4197145

Isolator

(SUB FOR TH109409)

4шт.

13

4197147

Stop

(SUB FOR TH109411)

4шт.

15

19M7968

Cap Screw

M20 X 130 (SUB FOR J922006)

2шт.

18

N231749

Washer

20.620 X 38.100 X 6.350 m m (13/16" X 1-1/2" X 1/4")

4шт.

19

14M7277

Nut

M20

2шт.

20

19H2994

Cap Screw

5/8" X 1-1/2"

8шт.

21

24M7338

Washer

17 X 30 X 3 mm

8шт.

23

4283926

Sender

(SUB FOR AT147302) Coolant Temperature

1шт.

25

8055862

Bracket

(SUB FOR AT250439)

1шт.

26

8050023

Bracket

(SUB FOR AT250196)

1шт.

27

8081301

Bracket

(SUB FOR AT250246) (SUB FOR AT192136)

1шт.
