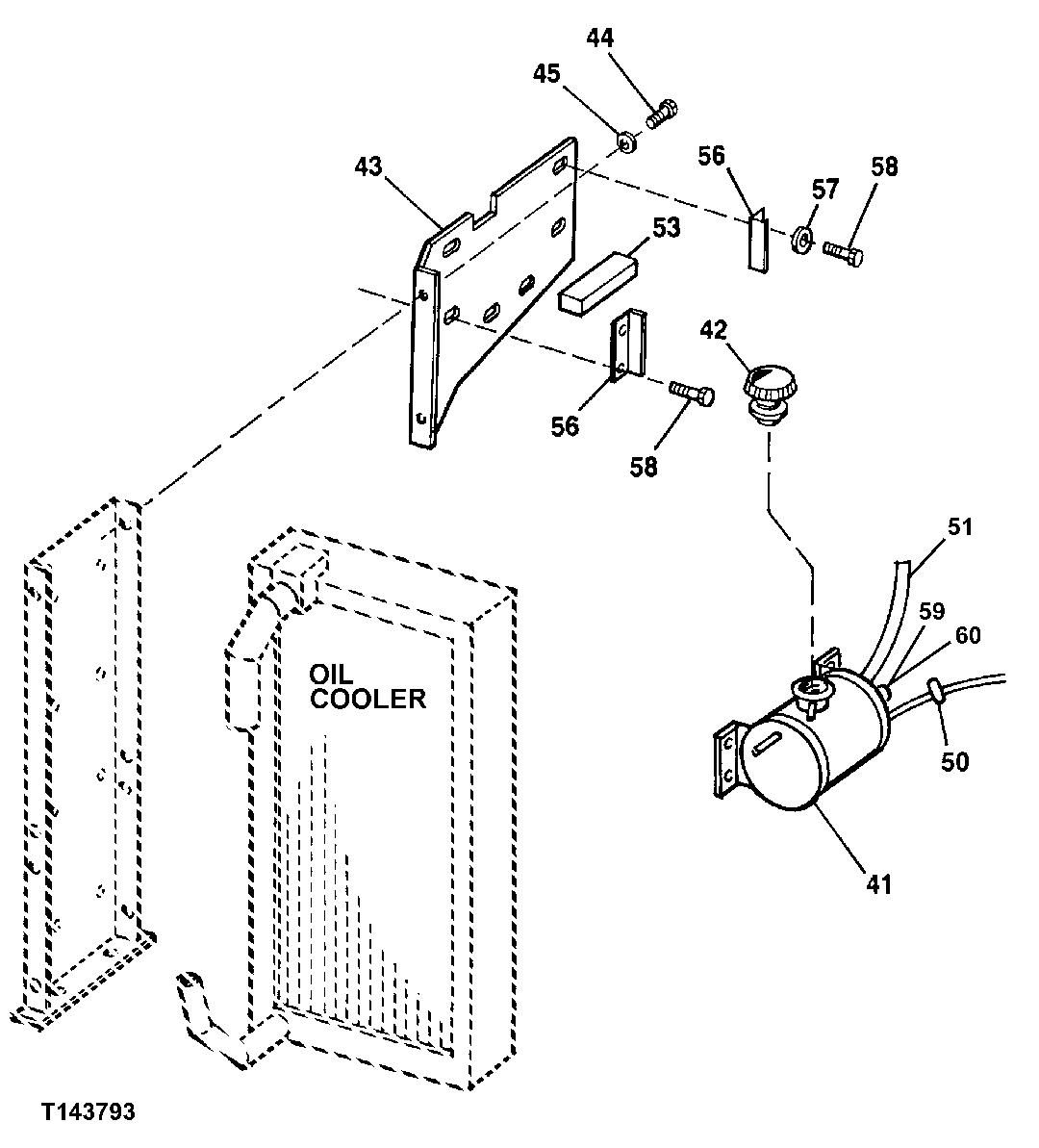

Запчасти John Deere 30LCR 78 - OIL COOLER OIL TANK AND SUPPORTS 0510 Engine Cooling Systems

41

AT182263

Tank

(SURGE)

1шт.

42

AT182802

Filler Cap

1шт.

43

T163107

Angle

1шт.

44

19M7785

Screw

M10 X 25

2шт.

45

24M7239

Washer

10.700 X 21 X 2.500 mm

2шт.

50

TY22462

Clamp

(SUB FOR AR48236)

1шт.

51

T163162

Hose

1шт.

53

Foam Pad

1шт.

56

Bracket

2шт.

57

24M7296

Washer

10.500 X 30 X 2.500 mm

4шт.

58

19M7784

Screw

M10 X 20

4шт.

59

T107141

O-Ring

(SIGHT GLASS)

1шт.

60

T162965

Gauge

1шт.
