88 - REAR ENTRY CAB LEFT REAR WINDOW (OSHA)

Запчасти John Deere 330LC, 370 88 - REAR ENTRY CAB LEFT REAR WINDOW (OSHA) 1810B Operator Enclosure (Rear Entry)

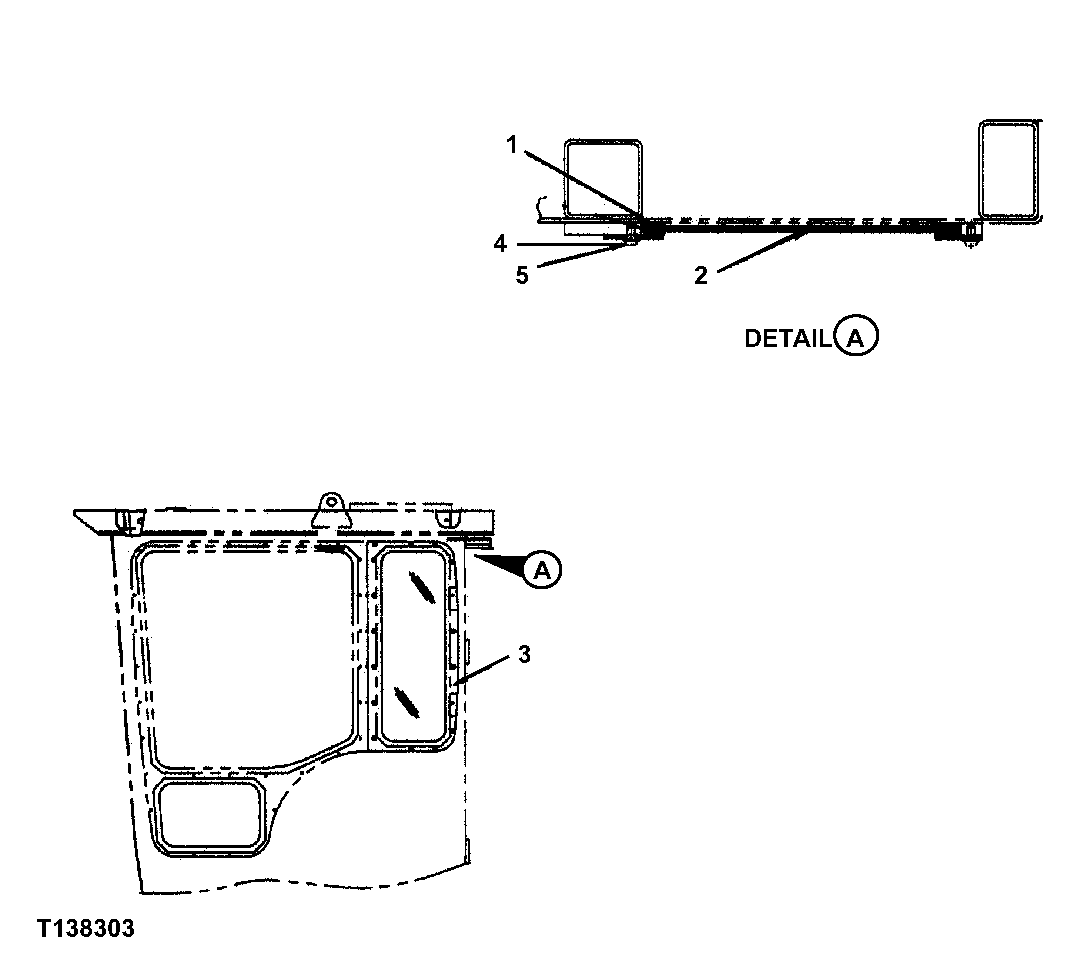

Схема запчастей John Deere 330LC, 370 - 88 - REAR ENTRY CAB LEFT REAR WINDOW (OSHA) 1810B Operator Enclosure (Rear Entry)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Seal

(SUB FOR FFSB108020)(FURNISH FFSB10344 4 BULK MATERIAL CUT TO 2920 MM LENGTH)

1шт.

2

FFSB108016

Windowpane

1шт.

3

FFSB108014

Cover

1шт.

4

FFSB106723

Bolt

15шт.

5

12M7058

Lock Washer

12 mm (SUB FOR FFSB107 082 ) (SUB FOR 12M7067)

15шт.
